wet grinding machine gold extraction
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Low consumption select iron machine
-
Electromagnetic feeder
-
2014 new type copper processing machine for Copper ore ,gold ore processing equipment
-
2014 new type air flotation machine for Copper ore ,gold ore processing equipment
-
high capacity ore Spiral Classifier for Iron ore
-
2014 new type flotation machine for Copper ore ,gold ore processing equipment
Product Details
Condition | New | Type | Other, Grinding mill | |
Motor Type | AC Motor | Power(W) | 20-22Kw | |
Place of Origin | Henan, China | Brand Name | Dahua | |
Model Number | 1600 | Dimension(L*W*H) | 1600*4009200*500mm | |
Weight | 15.5t, 15.5t | Certification | ISO9001/2000 | |
Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Wet Pan Mill:1.High grinding efficiency;
2.Easy operation and low consumption;
3.Grinding evenly.

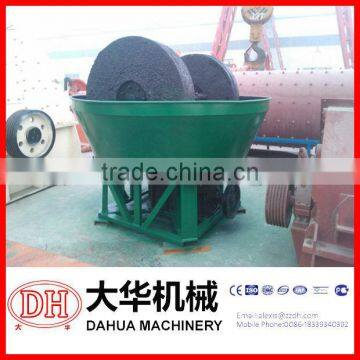

The Application of Wet Pan Mill
The Wet Pan Mill is also called Wet Grinding Machine,based on the different structure that devided into double
stone grinding and three stone grinding.They are mainly used for grinding operation,such as all kinds of ferrous
metal,non-ferrous metal,non-metallic minerals and the separation of gols ,silver,lead,iron,copper and so on.
The Features of Wet Pan Mill
Wet pan mill is also called wet grinding machine.It is praised by users because of it has the features of low investment,high production capacity,low consumption,good efficiency,easy installation and maintenace.
The Parameter of Went Pan Mill
Model | Specification | Input size(mm) | Process ability (t/h) | Speed (r/min) | Motor (kw) | Weight (t) |
1600 | 1600×400×±20 | Less than 30mm | 4 | 20-22 | 6-30 | 17 |
1500A | 1500×400×±20 | 3 | 20-22 | 6-22 | 15 | |
1500B | 1500×350×±20 | 2.5-3 | 20-22 | 6-22 | 14 | |
1500C | 1500×300×±20 | 2-2.5 | 20-22 | 6-22 | 12.5 | |
1400 | 1400×250×±20 | 1.5-2 | 16-18 | 6-18.5 | 9.5 | |
1300 | 1300×250×±20 | 1.5 | 21-23 | 6-15 | 7.8 | |
1200A | 1200×220×±20 | 0.9-1.2 | 16-18 | 4-7.5 | 6.0 | |
1200B | 1200×200×±20 | 0.8-0.1 | 21-23 | 4-7.5 | 5.8 | |
1100 | 1100×200×±10 | 0.6-0.8 | 16-18 | 4-5.5 | 5.5 | |
1000 | 1000×200×±10 | 0.5 | 21-23 | 4-5.5 | 4.5 | |
900 | 900×150×±10 | 0.3 | 17-19 | 4-5.5 | 2.5 |
Performance characteristics of wet ball mill :
1.This series wet ball mill is of wide scope of application , simple structure and easy maintenance.
2.This series ball mill has a big processing capacity, the advantages of continuous operation is obvious .
3.Cylinder liner and grinding media can use a variety of materials, corrosion resistance is strong, and use is wide.
4.This series ball mill is of convenient installation and commissioning , easy to operate.
5.This series ball mill productivity is high, the cost of use is low.
