Long life machine for egg tray/egg tray machine with different mould 0086 15238032864

Long life machine for egg tray/egg tray machine with different mould 0086 15238032864

Machine for egg tray  feature of high efficiency, low maintenance and

energy saving during the ten year practice.

The pulp molding system adopts to all kinds of waste paper to produce high quality molded fiberproducts. Such as egg boxes, apple trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, ect. The output try is thick at the bottom, and thin in the surface, which can save muchpaper pulp and energy.

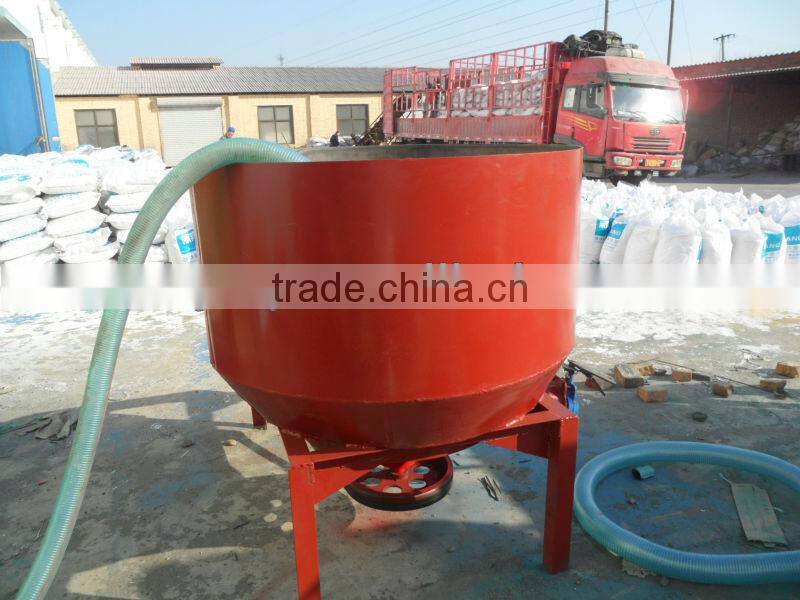

Pulping system: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine.

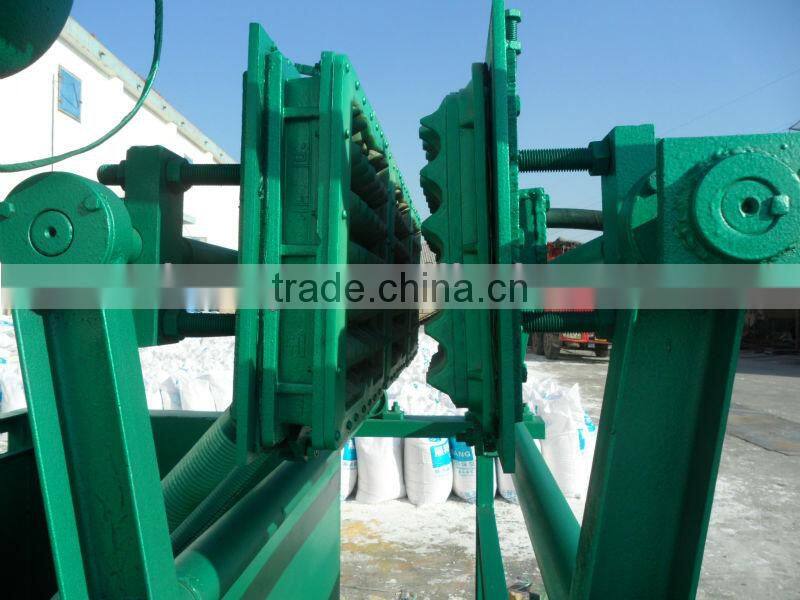

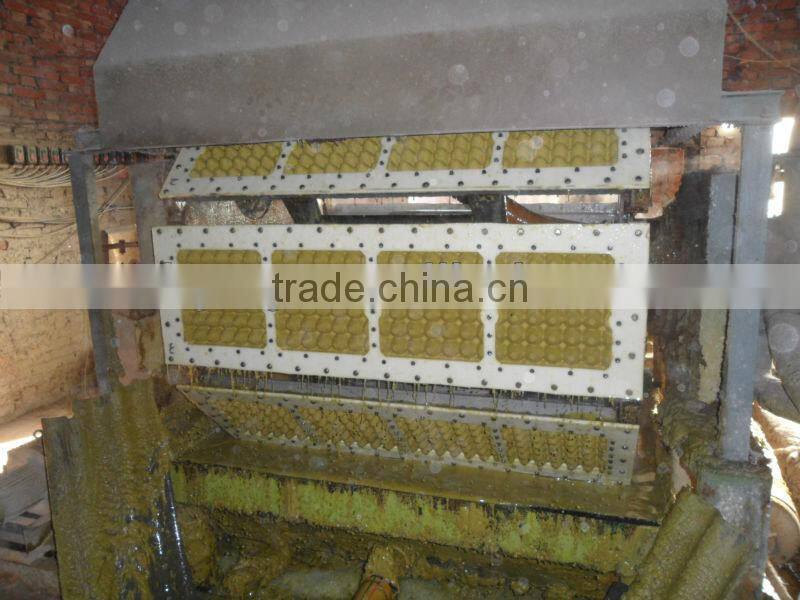

Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer , Negative pressure tank , mould, Transfer mould, baler .

Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.

Note: The country with very high-temperature can choose the natural drying method, no need for the drying system. This way can reduce the cost.

packing system: baling machine

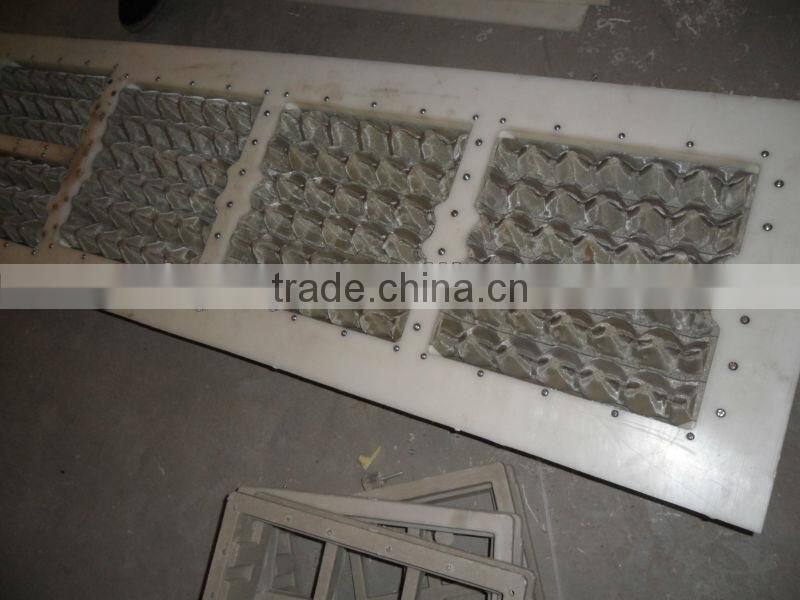

Mold

Q : What's the raw material of machine for egg tray   ?

A :Material for the molded pulp products is waste paper,corrugated paper,waste

newspaper,magazine.

Q :What type of the pulp product can be produced?

By changing relevant molds, our pulp molding machinery can make many kinds of pulp trays, suchas egg trays, egg cartons, bottle trays,electric spare part trays, fruit trays,etc.

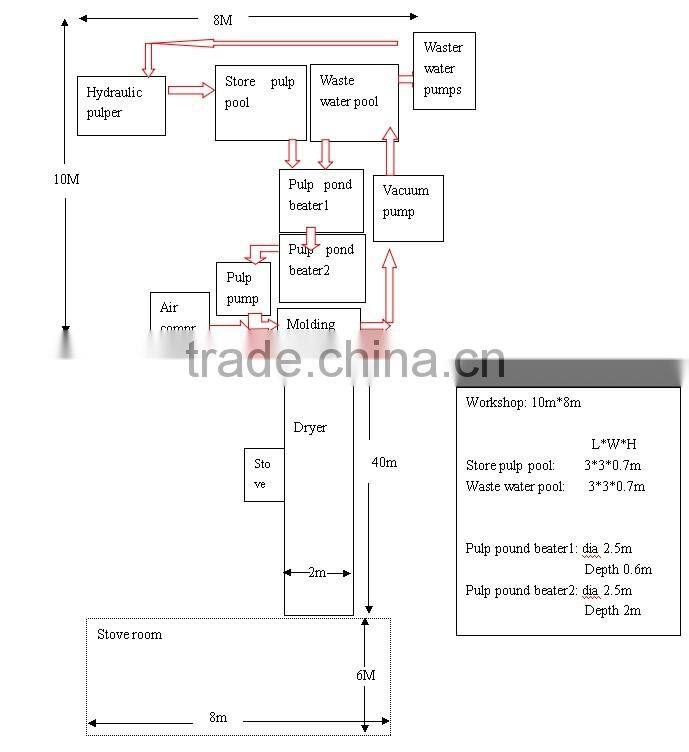

Q:  The cover area is large , can you provide us a layout diagram?

A :

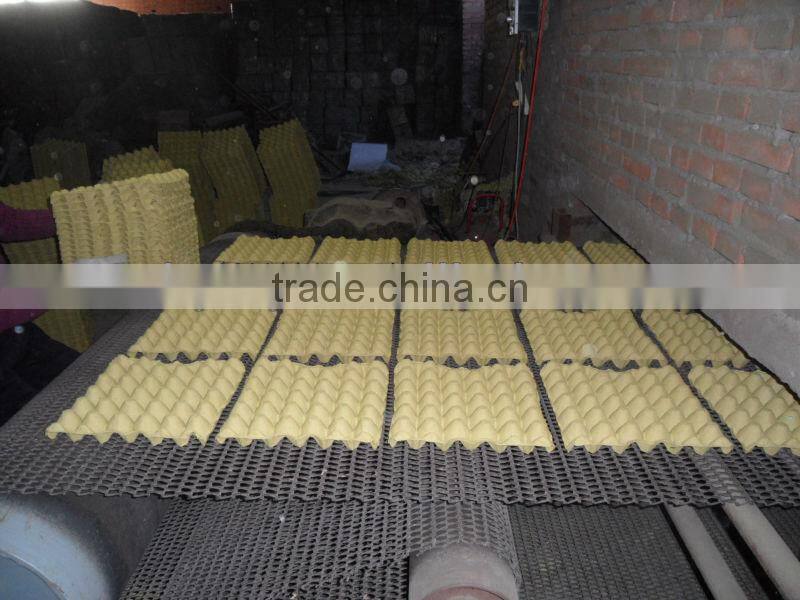

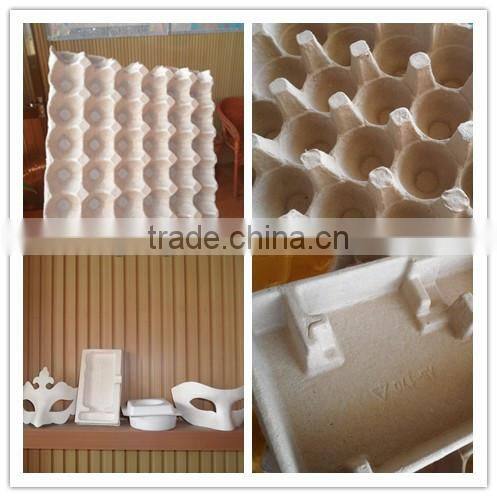

Final product of  machine for egg tray

Wooden case

1.One year warranty for whole machines.
2.Providing free quick-wear partc.
3.Low charge for continue maintenance when warranty is expired.
4.Exclusive engineer support at any time.
5.We can provide free training to end-users

GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China.

We are specialized in supplying the following products
