Home > Products > charcoal briquettes producing line > wood chips drying system final moisture:8-16%
wood chips drying system final moisture:8-16%
- 100 Set / Sets per Month
- QingDao or ShangHai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | HengYuan | Model Number | HGJ-1 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. raw materials could be wood sawdust or wood chips2. machine include the burner, pipes, fan, bas, motor
3. with ISO
Instruction
The sawdust dryer can make the sawdust with certain humidity to dry In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and materials suspending in air stream, the heat transfer surface between air and raw material is large so the heat transfer rate is high.
We dry the raw materials moisture as 12-70% %, it is necessary to install a dryer before further process. This air current type dryer can reduce the humidity of wood materials below 12% per time. The cost of this air current dryer is much lower than rotary dryer

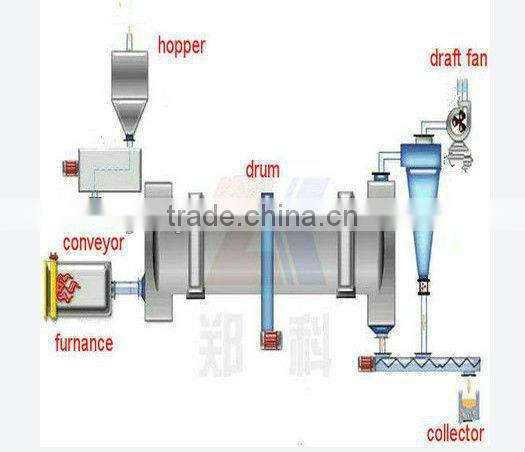

HOT AIRFLOW sawdust DRYER
1.Hot airflow sawdust dryer is our newly developed and advanced drying equipment which also called pipleline dryer.
2. This hot airflow sawdust dryer adopts twice cieculate heating system.
3. This hot airflow sawdust dryer shows the features of automatic feeding, complete mix of air and materials, strong drying strength, lower dust and bigger drying capacity.
4.Moisture in the raw mateials of less than 40% can be drying one time to meet the requirement for coal bar production, which greatly reduced the labor intensity compared with commonly used drier.
Main model techniccal data
Model (mm) (dia*length ) | Inclination (%) | Rotate speed (r/min) | Air inlet temperature (°C) | Power (kw) | Production capacity(t/h) | Weight (t) |
600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
the following is our dryer some spare parts picture
The following is my contact way
Contact Us
- Gongyi Hengyuan Industry&Trade Co., Ltd.
- Contact nameCate Wan Chat Now
- Phone86-371-85616977
- AddressYuYing Steet , Zhengzhou, Henan
