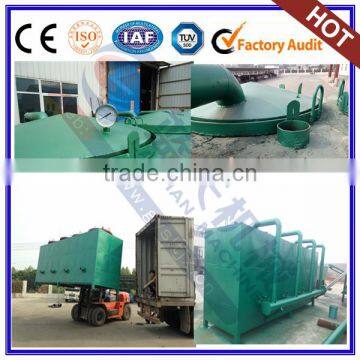

Professional Manufacturer Coconut Shell Carbonization Stove

 Professional Manufacturer Coconut Shell Carbonization Stove

1.Raw material for coconet shell carbonization stove

To carbonize peanut shell ,branch,corncob,sawdust ,wood log,wood residue,coconut shell or other raw material to good quality charcoal.

2.Distruction for Coconut Shell Carbonization Stove

One set  Coconut Shell Carbonization Stove connect with Hoist frame,Electric hoist, Main out stove, 4 Pieces inner stoves,12 Pieces baskets.if you want reduce the smoke during machine working, add one set purfication equipment.

Hoist frame and electric hoist:

Hoist the 4 inner stoves inside the 4 holes at the top of machine body,cover the inner stoves fire the 4 holes at the down of machine body,according to the carbonized menthod to carbonized coconut shell into charcoal,then hoist the 4 inner stoves out, lets them cooling natural, hoist extra 4 inner stove inside the main machine body,carbonized again.Save workers,energy ,increase great capacity for charcoal

Main out stove

Its used to put coconut shell inside its body,fire the stove ,get coconut chell charcoal.

Heat preservation and heat insulation effect is good.

 Inner stoves

Used to stock raw material, one set coconut shell carbonization stove need 4 pieces

inner stove working same time, advice you buy extra 4 to working take turns, increase

charcoal capacity.

Baskets

Used to stock raw material first,then put the baskets inside the inner stove,or put the raw materia into inner stove directly, its depend your chooce.

 Purification equipment

Collect the smoke and wood tar during coconut shell carbonization stove working.

3.Product line for coconut shell carbonized stove

 4.Main parameter

5.Carbonized process for  Coconut Shell Carbonization Stove

1

There are 4 steel drums at the top of the machine body. Under each drum, it’s a small room to make fire.

2

The 4 drums have lids on top, and in the middle of the lids, there also connect with 4 pipes, is used for gases to escape (gases will come out when heating the drum). This pipe is called the "retort." Fill the retort with the chunks of hard wood and place the lid on top.

3

Place wood and start the fire at the bottom of the drums. Place the retort inside the drum, resting it on the fire.

4

Wait for the fire to get really hot.

5

 It should be burning for about three hours and the smoke have been released, which means that the water, tar and other compounds in the hardwood chunks are being released. Keep the temperature up by occasionally adding wood to fire.

6

Watch for the smoke, which means the gases have been burned out. Pull the rods out to drop the retort into the burned wood and ashes, stopping the flow of air to the charcoal inside.

7

Wait an hour, then lift the retort out of the drums. Wear welder's gloves, as the retort may not be cool enough to handle. Place the retort in dirt and make  it to cool further.

8

After about two more hours, check to see if the retort is cool enough to touch. If so, remove the lid to check the results of your burn. If successful, the hardwood chunks inside should have reduced by about a third, and been converted to lump charcoal.

6.Detail for   Coconut Shell Carbonization Stove

 7.Loading machine
