Home > Products > Ball Press Machine > Big Discount For High Quality Strong Pressure Charcoal Powder Ball Press Machine

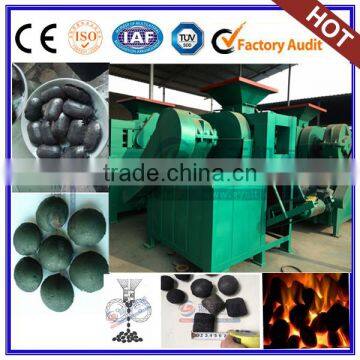

Big Discount For High Quality Strong Pressure Charcoal Powder Ball Press Machine
- Qingdao Tianjing Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 Year Advanced Hot Sale Lignite coal Power Ball Press Machine
-
Complete Product Line Of Making Charcoal Briquettes
-
LTB-650 Model Charcoal Briquette Press Equipment Approved With SGS and CE
-
LTB-650 Coal Powder Ball Press Machine Made In China
-
Charcoal Powder Briquetting Plant Made In China
-
Coconut Charcoal Making Machinery For Charcoal briquettes
Product Details
| Condition | New | Production Capacity | 8-10T/H | |
| Motor Type | AC Motor | Power(W) | 22kw | |
| Place of Origin | Henan, China | Brand Name | LANTIAN | |
| Model Number | LTB-650 | Dimension(L*W*H) | 2300*2300*2500mm | |
| Certification | ISO9001:2008 | Warranty | 2 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Discount For High Quality Strong Pressure Charcoal Powder Ball Press Machine
| 1.Introduction for Charcoal Powder Ball Press Machine |
Charcoal Powder Ball Press Machine compress powder material into the ball briquettes with the high pressure.its also suitable for those raw material :activated carbon,coconut shell charcoal, bamboo charcoal,palm shell charcoal,ricehusk charcoa,coal powder ,etc. those raw material can be pressed into different shape and size briquettes,used to BBQ food or home cooking,and industrial energy.
|
|
|
| |
| 2.Techanical parameter |
| Model | LTB-650 |
| Capacity | 6-8t/h |
| Weight | 2900kg |
| Motor | 22kw |
| Max diameter for product | 60 |
| The spindle material | 45# steel |
| The roller material | 65Mn |
| The spindle shaft speed | 18turn/mint |
| oversize for main machine | 2300*2300*2500mm |
| 3.Details for high quality strong pressure ball press machine |
Machine structure High quality strong pressure ball press machine Lignite coal Power Ball Press Machine connected by main machine, feed conveyor,discharge conveyor,reducer .mold,and motor,and roller.the bearing was forging by professional tools, very strong.
|
|
Different molds for high quality strong pressure ball press machine |
|
Different final products The size ad shape of final products can be custom,client can send us the drawing of products or tell us the size for products.those products press by high pressure , not broken,Best quality products. |
|
| 4.Require for the high quality strong pressure ball press machine |
| Raw Material Require |
| (1) Inlet raw material need less than 3mm, the smaller the material, easy make the better the briquettes. (2) The material can't be mixed with metal material, or the mold is easily damaged. (3) The raw material moisture need be controlled between 12%-15%. (4) A certain proportation of liquid binder and charcoal powder, we will offer the proportation formula after we finished the order for free. |
| Feature of high quality strong pressure ball press machine |
| 1) Special binder formula: 30 years development and numerous tests, we have got 6 kinds special binder formula, 100% natural, smokeless and smelless. We offer this formula to our customers for free. (2) Combustion improver formula: add this formula on the charcoal briquette surface, the charcoal briquettes can be ignited instantly, also length the burning time to 3 hours( ordinary just 1-1.5 hours). (3) Water-proof technique: our factory has special water-proof technique, to prevent the charcoal briquettes become wet, even put in the water, not moisture in it. (4) In later period: we dispatch erection workers install machines overseas. |
| Working process of high quality strong pressure ball press machine |
| (1) Through reducer transmitting the powder material to two rollers, and making them rotated in opposite directions. (2) The powder materials naturally enter into the roller molds. (3) When the materials rotating to two rollers line contact points, materials pressure reached a peak. (4) Under enormous pressure, the powder materials are suppressed into finished briquettes. |
| 5.Automatic product line for making charcoal briquettes |
|
More details>>>
Payment Term: TT,L/C,West Union Price Term:EXW,FOB,CIF Shipment Period:3-5 Working days after getting balance payment Packing Term:Single machine will be packed by wood case,several machine will be packed by plastic or IN NUDE Shipping line:we have the kind carrier,she will range the 20GP,40GP,40HP to load your machine, with best cheap shipping cost and fast shipping line. |
|
| 6.Different customer viste factory to test machine and chat business |
|
| 7.Payment for different customer |
|
| Details for Gongyi Lantian Machanical Plant |
| Gongyi Lantian Machanical Plant was built at 1980s, more than 36 years manufacturer experience. Our factory mainly produce Coal Charcoal briquette machine,Shisha Hookah briquette machine,Hydraulic press machine,Ball press machine,Biomass extrude machine,Charcoal extrude machine,Carbonized stove,Carbonized stove and other related machine.such as Crusher,Mixer, Conveyor,Feeder. We help customers choose and design the best quality product line for different type machine.our machine Sold at home and abroad,supply those certifications:CE.ISO9001,CO,Form E,COC,CIQ,to help customer from different country custom clearance |
|
|
|
| Gongyi Lantian Machanical Plant | |
| Sales Manager | Sunshine Yu |
| Mobile phone | 0086 15038021962 |
| 1054121651 | |
| IM tools | Skype:sunshine110077, Whatsapp/Wechat:0086 15038021962 |
| Website | http://gyltjx.en.china.cn |
