Compact and Durable Coal Powder Charcoal Briquette Ball Press Machine

Compact and durable coal powder charcoal briquette ball press machine

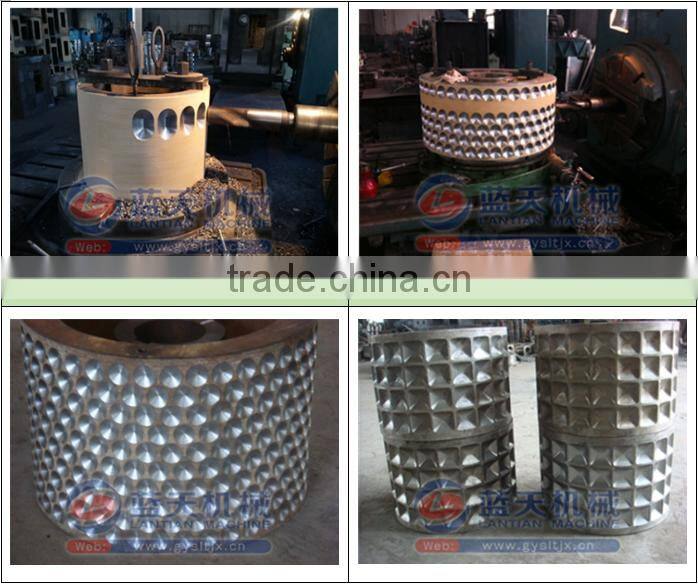

Molds and products

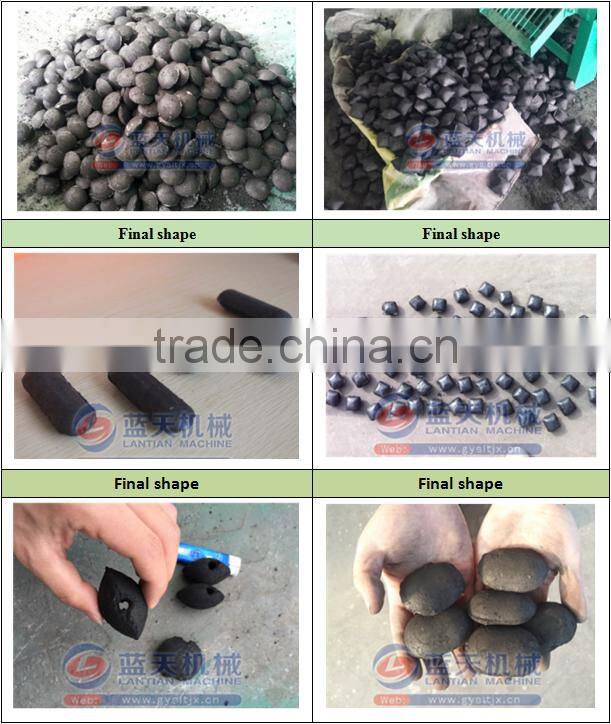

1. The fianl shape of coal powder charcoal briquette ball press machine

(1) Shape: pillow-shaped ball,egg-shaped ball,oval-shaped ball,circle-shaped ball,square-shaped

ball,columnar-shaped ball,banding-shaped ball,cake-shaped ball,etc.

(2) Size: can be 20-60mm or just as your requirements.

(3) Characteristics: the product is processed into high density,combustion time is long,non-

toxic,smoke-free,etc.

(4) Moisture: 9-12%,if higher than this,dryer is needed.

Product Description

2. Brief indroduction of coal powder charcoal briquette ball press machine

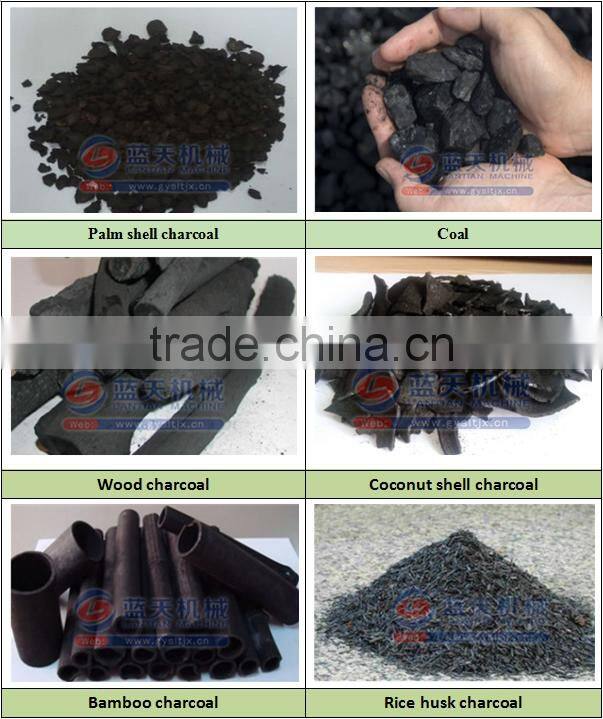

Coal powder charcoal briquette ball press machine has two or four rollers to press coal charcoal powder into various shapes. Raw materials can be coal powder,charcoal powder,carbon powder,gypsum powder,refractory powder,fertilizer powder,limestone powder etc.Final briquette size will be 20-60mm,which can be customized.

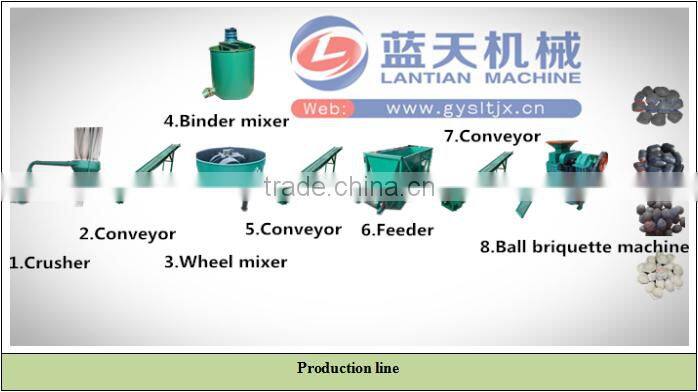

3. Full production line of coal powder charcoal briquette ball press machine

(1) The coal charcoal powder size need to be less than 3mm, if the size bigger than 3mm, you need to crush the coal charcoal less than 3mm.

(2) The coal charcoal powder moisture need to be controlled between 10-12%.

(3) Using the conveyor to connect different machine,save work.

(4) Make the binder ,the binder can make ball briquettes easy to burn.

(5) Let the binder with the coal charcoal powder together,  smooth surface and long burnning time.

(6) Using ball press machine to perss the shape you want.

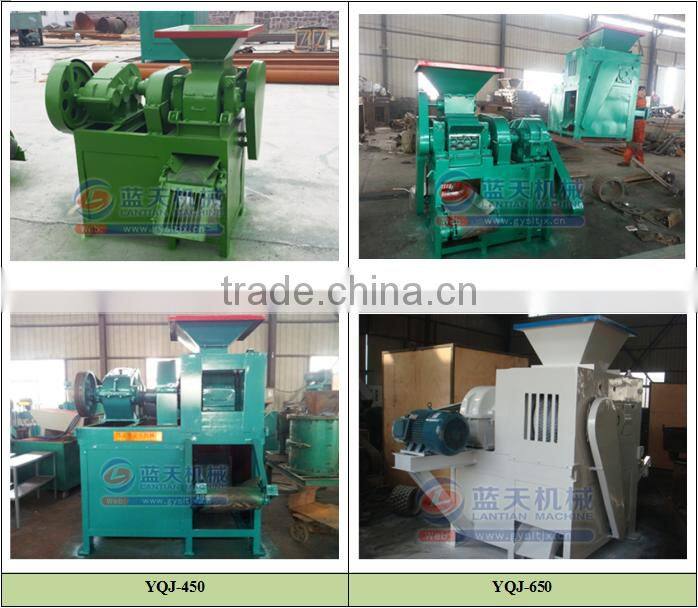

4. Main parameter of coal powder charcoal briquette ball press machine

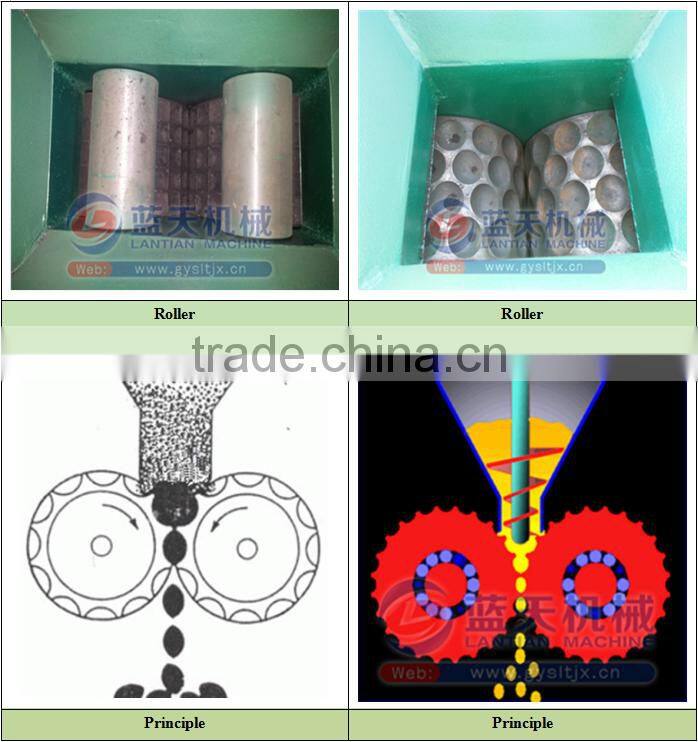

5. Working priciple of coal powder charcoal briquette ball press machine

Coal powder charcoal briquette ball press machine through reducer simultaneously transmitted the coal charcoal powder to two pressure rollers and made them rotated in opposite directions. In two pressure rollers rotation,coal charcoal powder naturally enter into the ball molds on pressure roller and materials pressure vary from small to large with the rotation of the pressure roller. When coal charcoal powder is rotated to two rollers line contact points,materials pressure has reached a peak. Under enormous pressure,the coal charcoal powder are suppressed into finished ball.

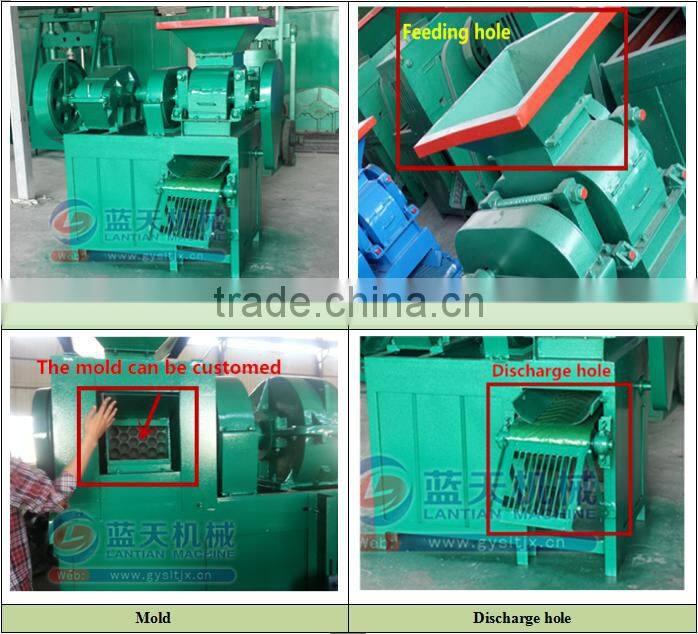

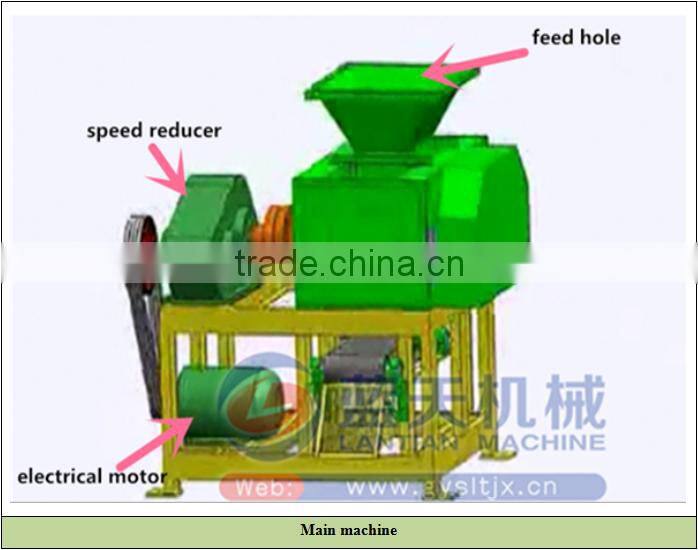

6. Structure of coal powder charcoal briquette ball press machine

(1)The feeding part: make the coal charcoal feed to rollers evenly.

(2)Speed reducer:control the speed

(3)Electrical motor:providing the powder.

7.The feature of coal powder charcoal briquette ball press machine

Coal powder charcoal briquette ball press machine also named ball press machine,coal ball forming machine,charcoal ball moulding machine,etc. Our factory can provide various kinds charcoal briquette machine for making different kinds charcoal briquettes,the shape and size both can be customized according to customers special requirement. Small cubage and easy for transport,adopt high-speed,high-frequecy stamping technique,ensure the stability of the molding.

8.The application of coal powder charcoal briquette ball press machine

Coal powder charcoal briquette ball press machine is mainly used to press the coke powder,coal powder,different charcoal powder,metal powder,carbon black powder, refractory powder,limestone powder etc. This machine use to press powder materials that are hard to be shaped, and can save energy and product the environment and the final products are convenient to be transported,thus improving the utilization of the waste materials and have excellent economic and social benefits.

We have also got the CE, ISO, SGS and other several patents.Our machines are sold at home and

abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South

Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan,

Philippines, and other countries.
