Touch screen control 200 tons pressure plastic bottle recycling machine
- Shanghai
- T/T
You May Like
-
Highly effective PLC control system waste plastic bottle recycling machine (factory since 1995)
-
Full-automatic CE standard waste film edge disposal equipement machine
-
PLC control system hydraulic press machine plastic film recyling compressor
-
Walmart stable supplier horizontal semi-automatic hydraulic bottle blowing air compressor
-
Factory direct selling price one-off bale out PET bottle recyling compactor
-
Stable quality factory new technology PET bottle recycling machine
Product Details
Condition | New | Application | Other, garbage | |
Packaging Type | Other, iron wire | Packaging Material | Metal, Plastic | |
Automatic Grade | Automatic | Driven Type | Hydraulic | |
Voltage | 380V /50Hz ( customizable) | Power | 90kw/120hp, 90kw/120hp | |
Place of Origin | Shanghai, China | Brand Name | CSJ | |
Model Number | JPW200QT | Weight | 28Ton | |
Dimension(L*W*H) | 11000*4370*5065 mm | Certification | CE,SGS,TUV,ISO9001 | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The pioneer of environmental protection--An ideal waste solution supplier
Touch screen control 200 tons pressure plastic bottle recycling machine
1.Product introduction:
Full-automatic operation without human, suitable for large amount material places, the package is easy to store and reduce the transportation cost.
Special automatic strapping device, quickly, simple frame, acting stably, low failure rate and easy to maintain.
You can choose to feed material by conveyor or air-blower, suitable for waste cardboard recycling companies, plastic, fabric, large garbage disposal sites and so on.
2. Machine parameter:
Model | JPW200QT |
Name | Touch screen control 200 tons pressure plastic bottle recycling machine |
Brand | CSJ |
Hydraulic power | 200 Ton |
Bale size | 1100*1200*(300-2800) (W*H*L mm) |
Feed opening size | 2400*1100 (L*W mm) |
Bale density | 650 (kg/m3) |
Bale lines | 5 |
Output | 18-22 (ton/hr) |
Power | 90kw/120hp |
Machine size | 11000*4337*5050 (L*W*H mm) |
Machine weight | 28 Ton |
3.Brand Of Baler Parts:
Crucial Components Allocation | |
HYDRAULIC TECHNIQUE | REXROTH (Germany TECHNIQUE) |
HYDRAULIC ELEMENTS | YUTIEN,HYDOR (TAIWAN Brand) |
SEALING PARTS | HALLET(UK brand) |
ELECTICAL ELEMENTS | DELIXI(Europe brand ) |
OIL PIPE | ZMTE(Europe brand) |
MOTOR | JIABAO (Brand-specific Customized hydraulic motor, without junction axis ,lower noise, no maintenance and energy saving, safe and reliable |
PUMP | JINGGONG (Taiwan investment) |

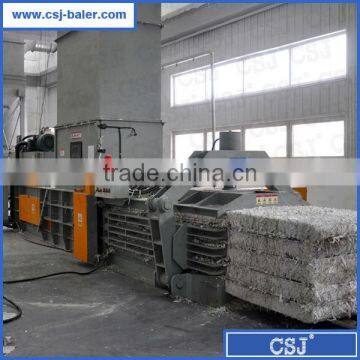

4.Details of machine photoes:
5.Models for option:
Model | Hydraulic power (Ton) | Bale size (W*H*L mm) | Feed opening size (L*W mm) | Bale density (kg/m3) | Bale lines | Output (Ton/ hr) | Power (kw/hp) | Machine size (L*W*H mm) | Machine weight (Ton) |
JPW40QT | 40 | 720*720*(300-1600) | 1000*720 | 300 | 4 | 1-3 | 16.5-18.5kw/22-25hp | 6300*2500*2150 | 7 |
JPW60QT | 60 | 750*850*(300-1800) | 1200*750 | 350 | 4 | 2-4 | 22-30kw /30-40hp | 6530*2770*2200 | 8.5 |
JPW80QT | 80 | 800*1100*(300-2000) | 1500*800 | 400 | 4 | 4-7 | 30-45kw /40-60hp | 8000*3410*2400 | 10 |
JPW100QT | 100 | 1000*1000*(300-2100) | 1800*1000 | 400 | 4 | 8-11 | 40-60kw/ 60-80hp | 9300*4180*4050 | 15 |
JPW120QT | 120 | 1100*1100*(300-2100) | 2000*1100 | 450 | 5 | 9-13 | 60-75kw/ 80-100hp | 10500*4337*4011 | 18 |
JPW150QT | 150 | 1100*1100*(300-2100) | 2400*1100 | 550 | 5 | 13-18 | 75kw/ 100hp | 11000*4370*5065 | 20 |
6.Accessaries of complete equipment:
7.Certification:
8.Production process:
9.Packing for shipment:
10.In exhibition:
11.Golden supplier for below companies:
12.About us:
- Jiajing(CSJ)’s factory is located in Nantong, Jiangsu Province and our marketing department is located in Shanghai.
- We are commited in the research and development of hydraulic balers since 1995, our target is to do the latest, the most fashionable and the most high-end product.
- Our product which has 7 series about 50 size has widely used in paper making,textile,commodities,food etc..
- Got CE ISO TUV SGS and so on Certifications
- We are the supplier of Nike, Wal-mart, Unicharm, Dumex, JNJ,RT-Mart and many other World famous manufactures and wholesalers.
- Our company is the professional production factory of hydraulic baling press (compressed) machine, which has nearly 20 years experience in this field, and have been exported more than 90 countries.
After many years technology research and development , we have obtained 21 national patents and 3 invention patents, and we have the rights of self-management import and export , No need the agent and the third party platform, that can save the customer's cost and time.
At the same time, especially in equipment parts supply after clients use and the good after-sales service ,we have strong guarantee about this , hope you could pay attention about our company , thank you.
13.Our service:
- One year warranty for whole machine.
- Engineers available to service machinery overseas.
- 24 hours technical support by e-mail.
14.Contact us:
Contact person: Alice Fan
E-mail:jiabao801(@)
Website:
Cell: 0086-15821887659
Tel: 0086-021-61400508
Skype: csj-baler801
QQ: 2880619239
Add: Room 909, No.6 building, No.299 west Jiangchang Road, Shanghai China
