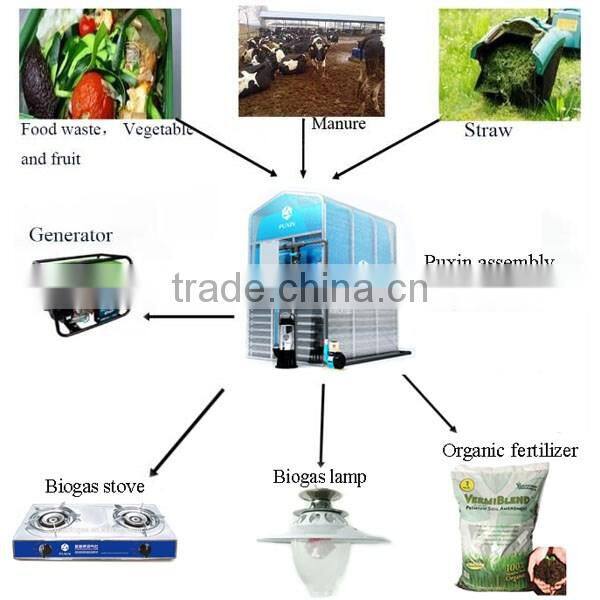

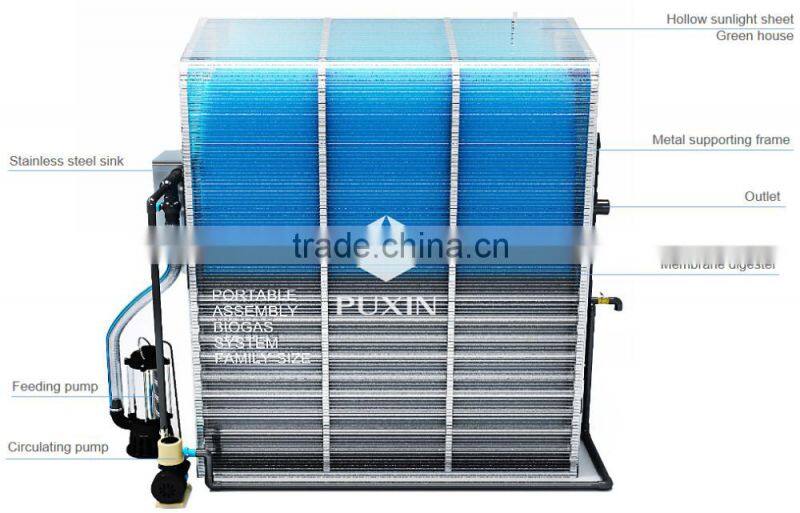

Domestic Mini Biogas Plant for Green Waste Disposal

1. Biogas Pump

Charging method: Only 220 AC
Frequency: 50Hz, Power: 15 W,
Flow≥36 L/min,
Max pressure( kgf/cm2)>0.22,
Max Vacuum (-kpa) -22,
Load flow≥12 (100 meter) L/min

2. Biogas Fittings

30m Φ9mm PVC soft pipe,
1pc pressure gauge 16KPa,
1pc desulpharize 1KG,
5pcs valves, etc.

3. Stove double burner

Heat load: 2.8KW,
Biogas consumption rate: 0.9m3/h,
Heat efficiency : >57%,
Fire maker efficiency : >98%,
Gas entrance pressure: 1600Pa,
Gross weight: 5kgs,
Outside dimension: 730×410×130mm

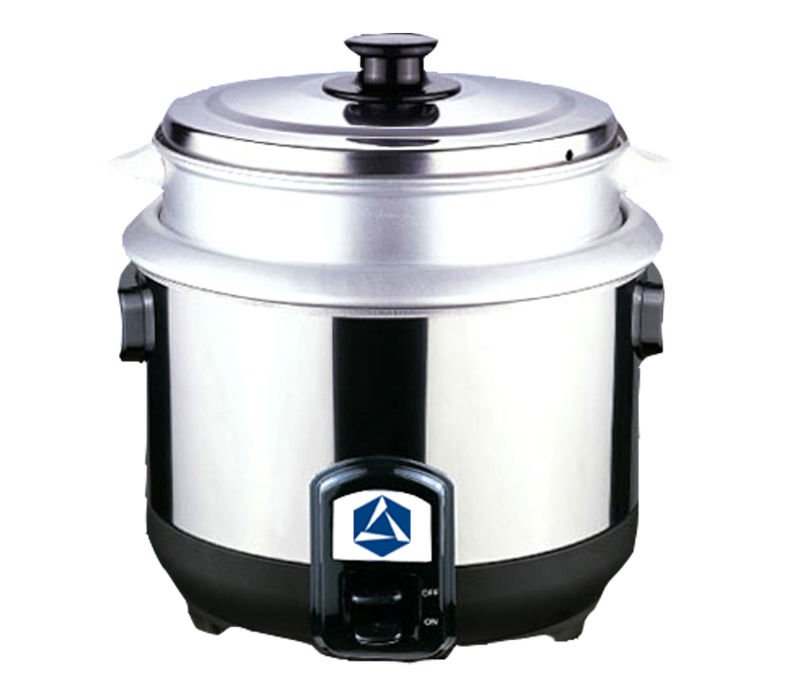

4. Biogas rice cooker

Rating Power: 1.0KW,
Biogas consumption: 129g/h(about0.14m3/h),
Rating pressure: 1600Pa,
Largest rice quantity: 1.6kgs,
Net weight: 3.0kgs,

Gross weight: 3.5kgs,
Outside dimension: 305×305×335mm,

5. Water heater JSD14

Heat flux: 14KW,
Hot water production rate(at 25 ℃):7L/min,
Rated gas pressure: 1600pa,
Water pressure: 0.025-0.8 Mpa,
Biogas consumption: 2 - 3m3/hour

6. Biogas lamp with electronic switch

7. Room heater

Biogas consumption rate: 0.3m3/h,
Gross weight: 21kgs/20sets,
Outside dimension: 590×590×410mm,
It could keep warmth for a room about 6 - 9 m2,
Diameter of the room heater: 28cm

8.  Flow meter

Normal flow rate: 2.5 m3/h,
Maximum flow rate: 4 m3/h,
Minimum flow rate: 0.025 m3/h,
Maximum working pressure: 10 Kpa,
310×300×260mm /4 sets, 1.5kg/set
