16kpa gas pressure gauge

Specifications

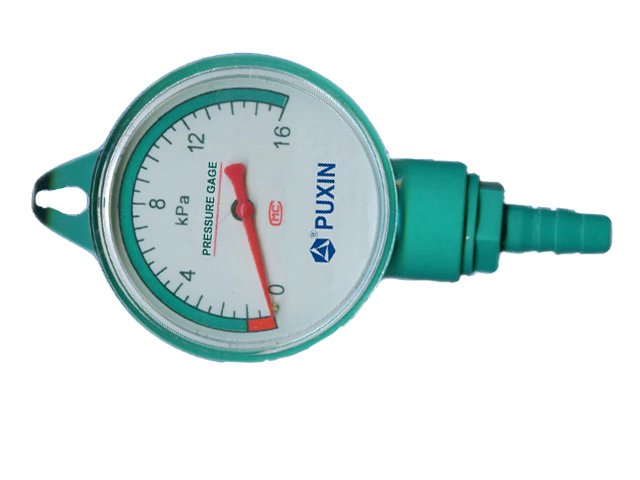

16kpa gas pressure gauge

The biogas pressure gauge is used mainly for family size biogas system. There are two types of biogas pressure gauge one with the pressure range 0-10kp and the other with the pressure range 0-16kp.

Performance and features: This gauge is mainly used for the measurement of the biogas pressure of the appliances. This gauge is durable, high corrosion resistance, and easy to install.

Technical parameters: The pressure gauge uses KPA the international standard pressure unit as pressure unit. 1KPA = 10.2CM water column.

Installation: The pressure gauge should be installed on the way of the pipe between the biogas digester and the gas appliance by a “T” joint socket with one outlet of the “T” joint socket connecting to the pipe from the digester, one outlet of the “T” joint socket connecting to the pipe to the appliance, and one outlet of the “T” joint socket connecting to the pressure gauge. The pressure gauge should be installed on the wall, within 2m apart from the appliance, higher than 1.5m from the ground.

Attention:

1. The pressure gauge must be installed in a dry place.
2. It is prohibited to immerse the pressure gauge in water for leak testing.

100 sets of biogas pressure gauge are put in one box with the size 400×320×360mm.

The weight is 8kg/100sets

The diameter of the pressure gauge is 60mm

HS CODE: 90262090
