TZ25 closed cable chain

 Hebei Shengtuo  Machine Tool Accessories Producing Co.,LTD

Proudct Show

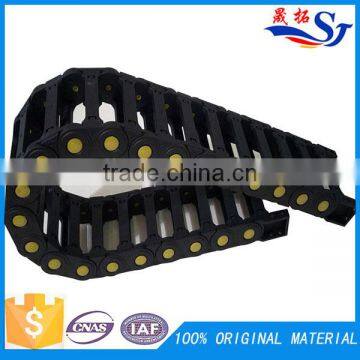

(openable type ,yellow dots square ending brackets )  (close type,yellow dots slope ending brackets)

(openable type ,black ,square ending brackets)     (close type,yellowdots ,square ending brackets)

 (small chain 8x8--10x20 ,slope ending brackets)                      (rectangle metal hose )

                (DGT Conduit Shield)                                             (Metal Cable Chain )

 Our closed cable chain have two standard .One is made from pure raw material (the perfect quality) . The other is made from 50% first-class material and 50% secondary raw material (the generaly quality) .And the prices are different .You can choose as per your demand .

Products description of size

More Details

>>    Working Life :   5 million reciprocating ,under normal conditions

>>   Max operating speed :5m/second

>>  No Bending Range : Generally 2.5m ,depend on the size

>>  Bending R : when order ,show me the bending R

>> Ending Brackets : size 7x7 ----- size 18x50  ,slope ending brackets ,others square endings

>> Color :size 7x7--size 18x50  black color ,size 25x25----size 80x400 black ,and black with yellow dots   available

Our Service

• prfessonal & Passion Sales team 24 hours at your service
• Participating in the various exhibitions help you to know us more completely
• sample could be sent in 1-2 days
• OEM of customized products / logo / brand / packing is accepted
• small qty accepted & quick delivery

Process of Making

  Why Us

• our own Product Development Team will regularly update new products.
• Product diversification for your choice
• Factory sale directly with professional sale team
• For Best price High quality and favorable service
• Express service for some urgent delivery orders to meet customer request

 Company Show

 This is our boss ,behind , it is our factory

  Our factory Show

Packing & shipping

Selling Units : by meters

Package Size : 80x80x40

Package weight :70kg/carton

Package Quality : three corrugated paper carton ,bubble sheet inside

              Market

                  Contacting

 Principle for selecting drag chains

Inner height:Take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus10% of the space height at least as the inner height.If overlapping ,take the overlapped height as the actual height .

Inner width:Take the sum of the outside diameter of the thicker cables ,oil pipes ,gas pipes or water pipes as the reference of the inner width and leave at least 10% of the space as a margin .

Radius of a bend:

Take the biggest radius of a bend of a cable ,oil pipe ,gas pipe or water pipe as a reference value and leave 10% of the space as a margin .

Installation principls for internally laid cable ,oil pipe,water pipe or gas pipe:

15%of the space should be reserved as a margin so that the inernally laid cales and oil pipes can move freely and there will not be any atress on the drag chains in the direction of radius.For those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly.They can also be seprated from one another by using spacers if necessary .

When operating in high speed of high frequency,the horizontally laid cables should be in a parted-way and should not be overlapped .If too many cables ,gas pipes and oil pipes laid together,it is recommended that spacers be used .

Installation for  Cable Drag Chains:

Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover.Put the drag chain for cables and oil pipes acording to the instructions provided. Put the cover back .Note that the fixed end and the moving end of a cable should be fixed by using a tension device .When used in a long sliding service ,it is recommedned to use a guiding grove,please ask our technical personnel about the usage of the guiding grove .

Dear Friend :

Thanks for your time :)

Here ,we are a long-time  manufacturer ,supply plastic and steel closed cable chain.We confirm that all  of our chains are strong enuogh .And our delivery time is quickly

By now ,we have expanded our market in many countries .And we get good feedback  mainly from  Italy ,Korea ,Spain ,Brazil ,India ,Canada ,Russia  and some other small countries

Your are welcome to be one of our clients .And we confirm you will get quality service here .
