2016 SMALL CONCRETE/CEMENT BRICK PRODUCTION LINE
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 12600 pcs per day | Place of Origin | Henan, China | |
| Brand Name | Hongxin | Model Number | JX4-35 | |
| Voltage | 380V/50-60hz/3 phase | Power | 4.8KW | |
| Dimension(L*W*H) | 2050*1660*1900mm | Certification | ISO CE SGS,ISO9001/CE | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

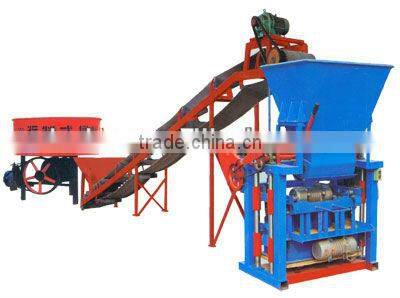

SMALL CONCRETE/CEMENT BRICK PRODUCTION LINE
The machine adopts four-lead, channel steel stander making the equipment more stable, and super-strong vibration motor.
And the upper mould with the bottom mould compression make the brick withhigh quality, more important, various kinds of materials can be used. Which improves the efficiency greatly.
1. Mixer machine
Model: JS350
Power: 5.5 kw
Weight: 600kg
2. Belt conveyor
Power: 2.2 kw
Length: 5 m
Width: 400mm
3. Small brick machine
The model | JX4-35 | |
The forming number | 390×190×190mm | 4 |
240×115×90mm | 9 | |
240×115×53mm | 21 | |
390×240×190mm | 3 | |
390×150(140)×190mm | 5 | |
390×120(115)×190mm | 6 | |
Forming cycle(S) | 35 s | |
Shift capacity( 8 hours capacity) | 12600 pieces | |
Power(KW) | 4.8 kw | |
Overall weight(kg) | 600 kg | |
Splint dimension(mm) | 880× 480× 30mm | |
If you have any interest, don't hesitate to contact with us!
