Rotary type Sterilization Vessels For Canned food

Specifications

Discriptions:

1.Full function of disinfection, precision bactericidal effect, best high-pressure disinfection methods
2.With online sterilization validation recording devices to record the whole validation value during sterile process
3.The best heat exchange efficiency: recycled water atomization, steam heating atomized water directly
4.Unique autoclave sterilization technology, at least the steam supply, advanced exhaust-free sterile method, to create the lowest cost-effective of food processing
5.High precision batch retort thermal distribution, the temperature accuracy was guarantee in ± 0.5 ° C
6.Aseptic cooling system: with water circulation cooling system, absolutely no chlorine residue
7.Color screen operation interface, whole sterilization procedures was micro-computer automatic control system

Main Characteristics:
* Material: SS304/SS316L/Carbon Steel
* Internal chain conveyor
* High mechanical reliability and thermal homogeneity
* The baskets are specific to the nature of products and type of packaging

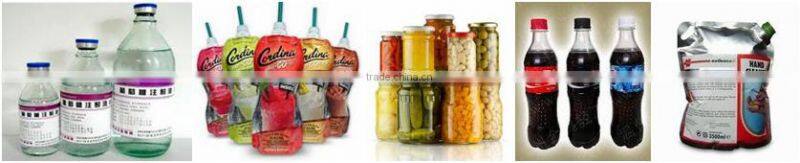

Applications:

1. Medical sterilization package material,ex: injection drop pouches
2. Sterile retort pouch and pouch foods batch sterilization process
3. Glass bottles and glass sterile process
4. Plastic material : drink PP HDPE bottles and PP cup with PP film cover
5. Aluminum material : aluminum foil, aluminum can, flexible pouches, aluminum pouch

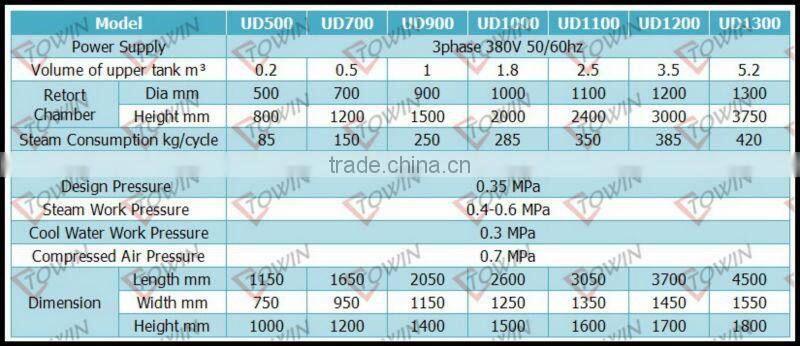

Technical Parameters:

Basket Loading options:

1. Auto-loading system, in the sterilizer chamber would be a chain loading driver for pull in the batch sterilization basket and fitting in position, As the sterilization process is finish, the chain driver would push out the basket case by case, At the front of sterilizer should have a truck for storage the basket.

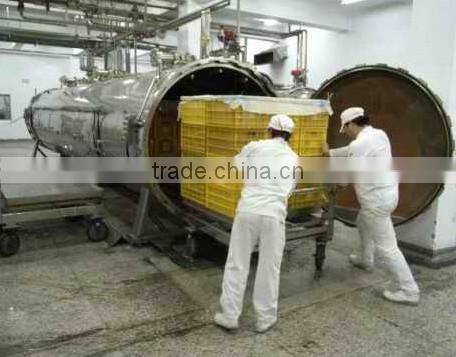

2. Manual loading system was with a trolly carry the sterilization basket on it, the cage push in the chamber was by manual.

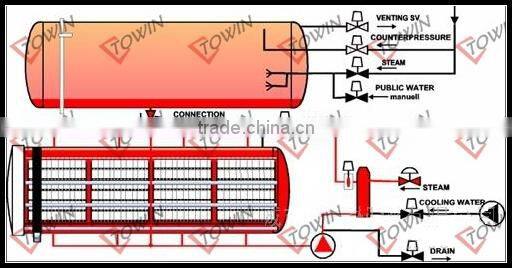

Flow Charts:

Please consult us for your detail requirments.
