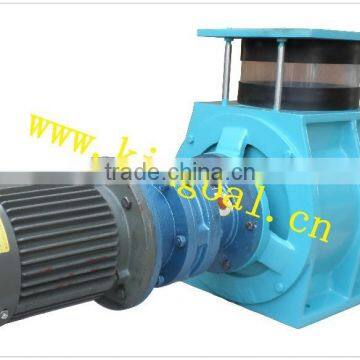

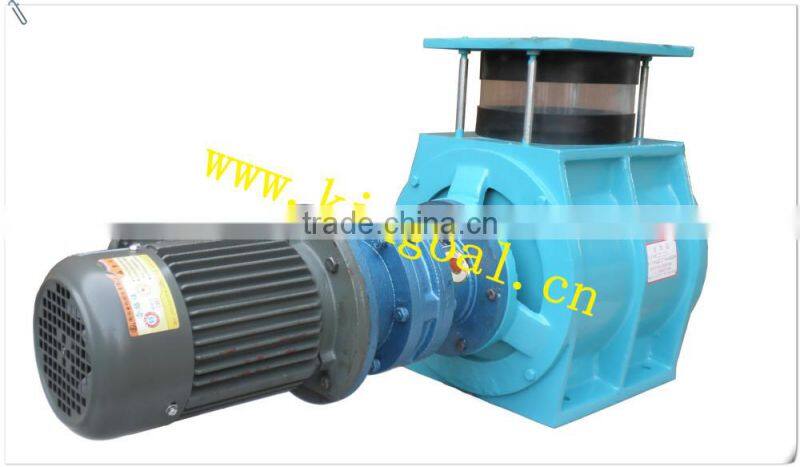

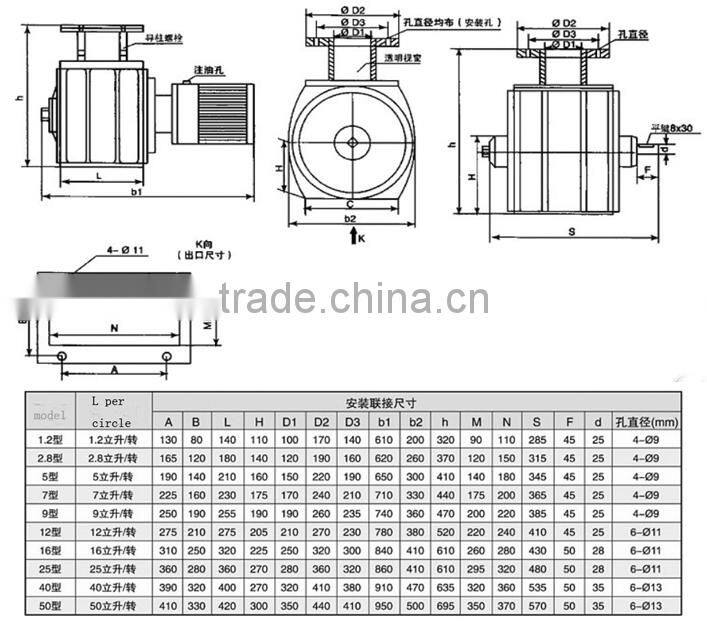

Airlock for flour mill machinery

Typical Model and Main Specs of

Small Scale Wheat Flour Milling Machinery and Equipment

(flour sifted by round sieve and/or square sieve)

          Model

Item

6FTS-18 Flour Mill Machinery

6FTS-22 Flour Mill Machinery

6FTS-28 Flour Mill Machinery

6FYF-22 Flour Mill Machinery

Rated capacity

(tons of wheat per 24hr)

18

22

28

22

Milling section

3 sets of 6F1820 roller mill, 5sets of round sifter, 1set of bran finisher

4 sets of 6F1820 roller mill, 7 sets of round sifter, 1 sets of bran finisher

6 sets of 6F2235 roller mill, 8 sets of 45 round sifter, 1 set of bran finisher

4 sets of roller mill, 1 set of 2-bin square sifter, 4 sets of grading sieve, 1 set of bran finisher

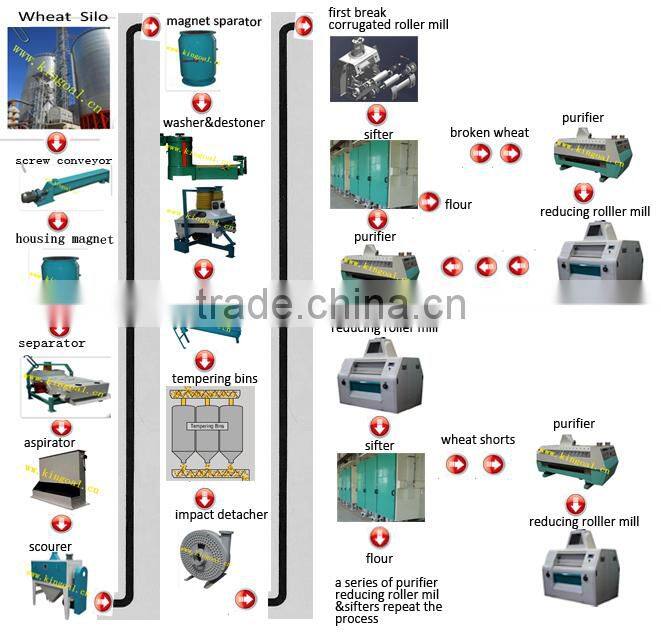

Cleaning section

1 sifting-1scouring-1 de-stoning-1 magnet-1 washing  or 2 scouring-1 de-stoning -1 magnet – 1 washing – 1 aspirator

1 sifting-1scouring-1 de-stoning-1 magnet-1 washing  or 2 scouring-1 de-stoning -1 magnet – 1 washing – 1 aspirator

1 sifting-1scouring-1 de-stoning-1 magnet-1 washing  or 2 scouring-1 de-stoning -1 magnet – 1 washing – 1 aspirator

1 sifting-1scouring-1 de-stoning-1 magnet-1 washing  or 2 scouring-1 de-stoning -1 magnet – 1 washing – 1 aspirator

Input & Output (Extraction)

Standard flour: 80% min.

Normal flour: 76% min

Standard flour: 80% min.

Normal flour: 76% min

Standard flour: 80% min.

Normal flour: 76% min

Standard flour: 80% min.

Normal flour: 76% min

Finished Product Quality

Better than China National Standards on Wheat Flour GB1355-88

Better than China National Standards on Wheat Flour GB1355-88

Better than China National Standards on Wheat Flour GB1355-88

Better than China National Standards on Wheat Flour GB1355-88

Power supply

41 kW approx.

66kW approx.

66kW approx.

59kW approx

Size of Workshop

17m(L)x5m(W), least ceiling height 4m

17m(L)x5m(W), least ceiling height 4.2m

20m(L)x6m(W), least ceiling height 4.2m

17m(L)x6m(W), least ceiling height 4.2m

Kindly Note

1.  Smaller or Larger scale flour mill machinery are available besides the models in the table
2. Custom requested flour are capable to be produced after special configuration adopted or adjusted

Typical Model and Main Specs of

Specialty Wheat Flour Milling Machinery and Equipment

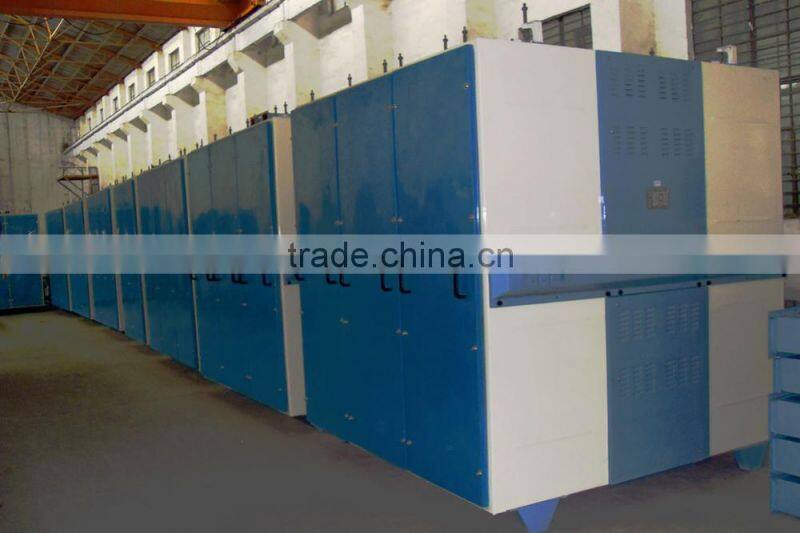

(Multi-section plansifter adopted and in style of Steel Tower or Building Structure)

          Model

Item

6FTF-80 Flour Mill Machinery

6FTF-100 Flour Mill Machinery

6FTF-200 Flour Mill Machinery

6FTF-300 Flour Mill Machinery

Rated capacity

(tons of wheat per 24hr)

80

100

200

300

Milling section

8 sets of 500x2 roller mill, 2 sets of 6x24 plansifter, 1 set of 49x2x3 purifier, 1 set of packing machine, 2 sets of bran finisher, 2 sets of conveyor

10 sets of 500x2 roller mill, 3 sets of 6x24 plansifter, 1 set of 49x2x3 purifier, impact detacher, packing machine, impulse dust collector

12 sets 1000 roller mill, 6x24 or 8x24 plansifter, 49 or 59 purifier, impact detacher, bran finisher, impulse dust collector, packing machine

16 sets of E-control roller mill, 5 sets of 8x24 plansifter, 6 sets of 59x2x3 purifier, impact detacher, vibrate round sieve, bran finisher, impulse dust collector, packing machine

Cleaning section

3 sifting-2 scouring-2 destoning-3 magnet-1 washing-2 dampening or 3 sifting- 2 scouring-1 brushing, 2 destoning- 1 sorting -3 magnet-2 dampening dry cleaning

3 sifting-2 scouring-2 destoning-3 magnet-1 washing-2 dampening or 3 sifting- 2 scouring-1 brushing, 2 destoning- 1 sorting -3 magnet-2 dampening dry cleaning

3 sifting-2 scouring-2 destoning-3 magnet-1 washing-2 dampening or 3 sifting- 2 scouring-1 brushing, 2 destoning- 1 sorting -3 magnet-2 dampening dry cleaning

3 sifting-2 scouring-2 destoning-3 magnet-1 washing-2 dampening or 3 sifting- 2 scouring-1 brushing, 2 destoning- 1 sorting -3 magnet-2 dampening dry cleaning

Input & Output (Extraction)

Specialty flour NO.1: 68% min.

Specialty flour NO.2: 78% min

Specialty flour NO.1: 68% min.

Specialty flour NO.2: 78% min

Specialty flour NO.1: 68% min.

Specialty flour NO.2: 78% min

Specialty flour NO.1: 68% min.

Specialty flour NO.2: 78% min

Finished Product Quality

Better than China National Standards on Wheat Flour GB1355-88

Better than China National Standards on Wheat Flour GB1355-88

Better than China National Standards on Wheat Flour GB1355-88

Better than China National Standards on Wheat Flour GB1355-88

Power supply

210 kW approx

300kW approx

700 approx

900kW approx

Size of Workshop

2.5 floor building or just cement foundation ground 32m(L)x8m(W) with a least ceiling height 10.5m

3 floor building or just cement foundation ground 35m(L)x8m(W) with a least ceiling height 10.5m

4 floor or 5 flour building

5 floor or 6 flour building

Kindly Note

1.       Smaller or Larger scale flour mill machinery are available besides the models in the table

2.       Custom requested flour are capable to be produced after special configuration adopted
