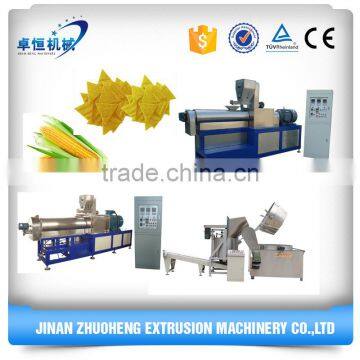

Full Automatic Stainless Steel Tortilla Chips Processing line Machine

  Full Automatic Stainless Steel Tortilla Chips Processing line Machine

1. Description:

    High quality doritos corn chips adopts corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.

2. Raw materials: Full Automatic Stainless Steel Tortilla Chips Processing line Machine adopts corn, rice, wheat, oat, barley etc as ingredients

3. Products: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

4. Capacity: 150kg/h, 240kg/h, 500kg/h

5. Flow chart: Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system

6. Voltage: in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel

1.Production line details

2.Full Automatic Stainless Steel Tortilla Chips Processing line Machine Advantages
1.The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting.
a)With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.
2.SIMENS (China) Motor
3.It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.
Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the whole food process.
4.Adopted the Delta inverters, ensure the extruder better running.
5.The gearbox has automatic lubrication function, which prolong service life of gears.
6.Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.

3.Technical Parameters

4. Full Automatic Stainless Steel Tortilla Chips Processing line Machine Production process
Flour raw material mixing---extruding ---shaping---frying---flavoring---cooling---packing
