Home > Products > expanded metal > 2012 hot sales expanded metal wire mesh(big supply with best price)

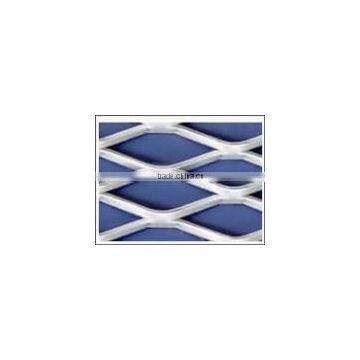

2012 hot sales expanded metal wire mesh(big supply with best price)
US$ 1 - 5
/ Square Meter
1000 Square Meters(Min. Order)
- xingang china
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Other, low carton steel board | |
| Type | Expanded Mesh | Application | Screen | |
| Weave Style | Other, punch | Wire Diameter | 0.1-5mm | |
| Technique | Perforated | Model Number | EM123 | |
| Brand Name | anruifeng |
Product Description
Specifications
expanded metal mesh1.plate thicknes:0.3-10mm
2.aperture:2.5mm-100mm
3.stem widht:0.5mm-8.0mm
4.width:0.5m-2.0m
Fabrication Material: aluminium plate, thin low carbon steel plate,stainless steel plate, al-mg alloy plate, copper plate and nickel plate.
Weaving and Characteristic: Can be woven into diamond, square,round and triangle in terms of hole. Excellent quality in abrosion resistance,intensity and artistically designed appearance.
Application: It can be widely used in highway, railway, building,waterpower, machine protection, electrical equipment, window, etc.
Weaving and Characteristic: Can be woven into diamond, square,round and triangle in terms of hole. Excellent quality in abrosion resistance,intensity and artistically designed appearance.
Application: It can be widely used in highway, railway, building,waterpower, machine protection, electrical equipment, window, etc.
| length(600-4000mm) X width(600-2000mm plate thickness(mm) | hole widt- h (mm) | hole length (mm) | mesh peduncle (mm) | mesh width (mm) | mesh length (mm) | Weight (kg/m2 ) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 2.21 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
