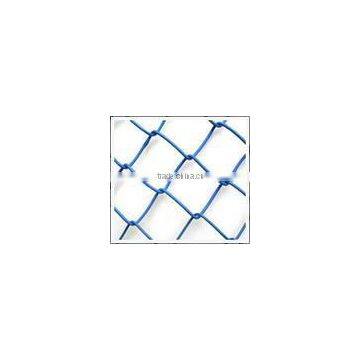

electro galvanized chain link fence
- 100000 Square Meter / Square Meters per Month
- Xingang China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | anruifeng | |
| Model Number | chain link fence | Frame Material | Metal | |
| Metal Type | Steel | Frame Finishing | PVC Coated | |
| Plastic Type | PVC |
Product Description
Specifications
electro galvanized chain link fenceDoes not sag or roll up at the bottom
low carbon wire
safe and flexible
easy to install
elctro galvanized Chain link fence:
Material: Low carbon steel wire or Low carbon steel galvanized Coated wire
Processing: Electro galvanized or hot-dip galvanized after weaving ; Electro galvanized or hot-dip galvanized before weaving;pvc coated chain link fence.
Specification:
We could supply with the normal specifications as follows:
Opening | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm | |
Wire diameter | 18# - 13# | 16# - 8# | 18#-7# | ||||||
1.2 - 2.4mm | 1.6mm - 4.2mm | 2.0mm-5.00mm | |||||||
Length of the roll | 10m - 100m(or more) | ||||||||
Width of the roll | 0.5m - 5.0m | ||||||||
We can also manufacture other specifications as per your request.
About knuckles and barbs: Fence fabric is available two ways: with knuckles on both ends. with knuckles on one end and barbs on the other end. (two barbs are formed when the chain link is twisted at one end,).
The edge of the chain link fence: It is divided into two types. One type is a hem one, the other is a twisted one. Using special tools to make the edge heming or twisting .The hemed edge is more popular compared with the twisted edge. Customers can choose according to their own needs.
Application:
Sport ground (playground, basket ball ground, tennis ball);
Animals protection grounds (Park, zoo,wild animals protection district);
Used as fencing, decoration or protection for various facilities in industry, agriculture, infrastructure, etc.
Galvanized or pvc coated Fence Post
Fence Height | Fence Length(2m) | Fence Length(2.5m) | ||||||||
Wire Gauge | Wire Diameter | Opening | Weight kg/piece | Fixing Pole | Wire Gauge | Wire Diameter mm | Opening cm | Weight kg/piece | Fixing Pole | |
Weight kg/set | Weight kg/set | |||||||||
60 | 10#/8# | 3.24 | 5X12 | 6.5 | 1.9 | 10#/8# | 3.24 | 5X12 | 8.6 | 1.9 |
80 | 10#/8# | 3.24 | 5X12 | 7.5 | 2.3 | 10#/8# | 3.24 | 5X12 | 9.9 | 2.3 |
100 | 10#/8# | 3.24 | 5X12 | 8.5 | 2.7 | 10#/8# | 3.24 | 5X12 | 11.2 | 2.7 |
120 | 10#/8# | 3.24 | 5X12 | 9 | 3.1 | 10#/8# | 3.24 | 5X12 | 11.9 | 3.1 |
150 | 10#/8# | 3.24 | 5X12 | 11 | 3.7 | 10#/8# | 3.24 | 5X12 | 14.5 | 3.7 |
180 | 10#/8# | 3.24 | 5X12 | 12.5 | 4.3 | 10#/8# | 3.24 | 5X12 | 16.5 | 4.3 |
200 | 10#/8# | 3.24 | 5X12 | 13.5 | 4.7 | 10#/8# | 3.24 | 5X12 | 17.8 | 4.7 |
Characteristic:
The Diamond Mesh wire construction is:
· strong;
· with wide application
· convenient instation
· lower price
· safe and flexible;
· does not break;
· Does not sag or roll up at the bottom.
