Customized Good Quality Crimped Wire Mesh

Customized good quality crimped wire mesh

                              Product Description

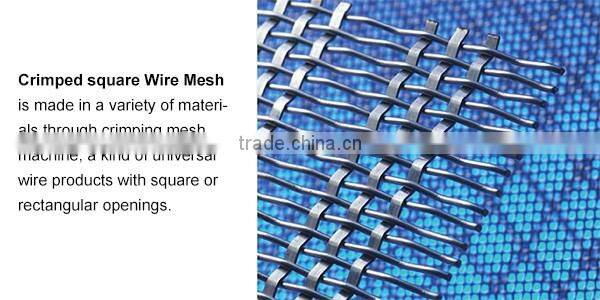

Crimped wire mesh is also called square wire mesh, which will be crimped before woven,

so crimped wire mesh own stable structure, good strength and uniform mesh. It's  adopted more

and more by the building field whatever on the material, structure or style.

                                        Feature

1. High sieve net rate.

2. Wear resistance, corrosion resistance.

3. Uniform mesh, high open rate.

4. Prevent slippery, anti vibration, good elasticity and toughness.

5. Long using life.

                                      Specification

• material:  mild steel/low carbon steel, carbon iron wire, galvanized steel wire, galvanized redrawing wire, stainless steel wire, white wire, plumbum wire
• specifications:


  Wire Gauge SWG	Wire Diameter mm	Mesh/Inch	Aperture mm	Weight kg/m2
  14	2.0	21	1	4.2
  8	4.05	18	1	15
  25	0.50	20	0.61	2.6
  23	0.61	18	0.8	3.4
  24	0.55	16	0.1	2.5
  24	0.55	14	0.12	4
  22	0.71	12	0.14	2.94
  19	1	2.3	0.18	1.45
  6	4.8	1.2	2	20
  6	4.8	1	2	20
  6	4.8	0.7	3	14
  14	2.0	5.08	0.3	12
  14	2.0	2.1	1	2.5
  14	2.0	3.6	1.5	1.9


  Your customized will be welcomed.

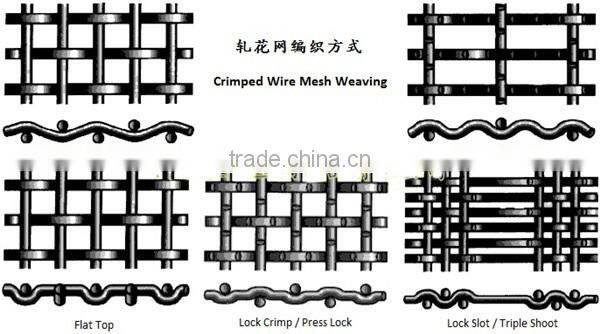

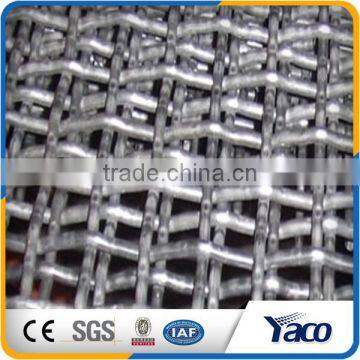

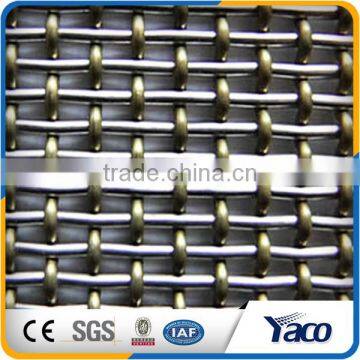

•  woven style:

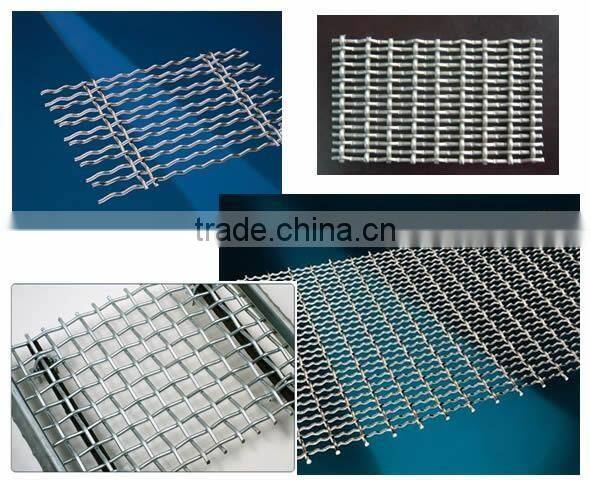

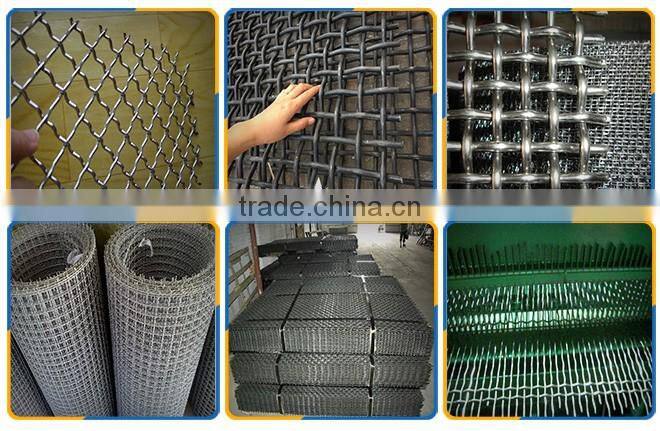

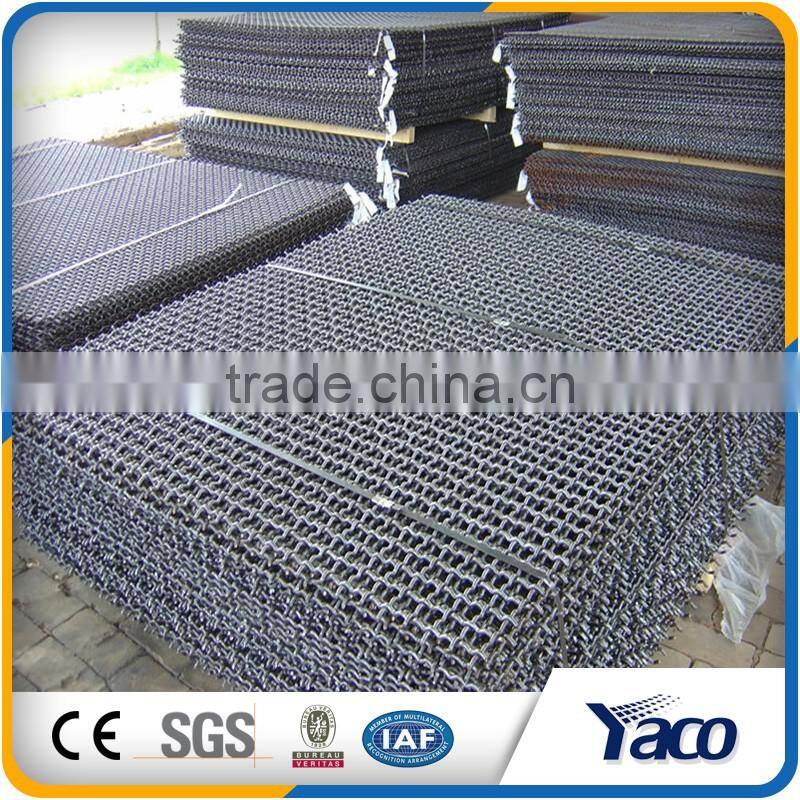

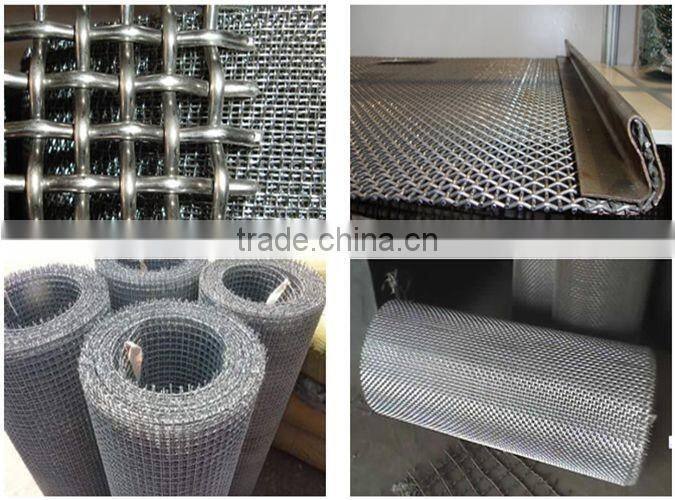

                                   Pictures display

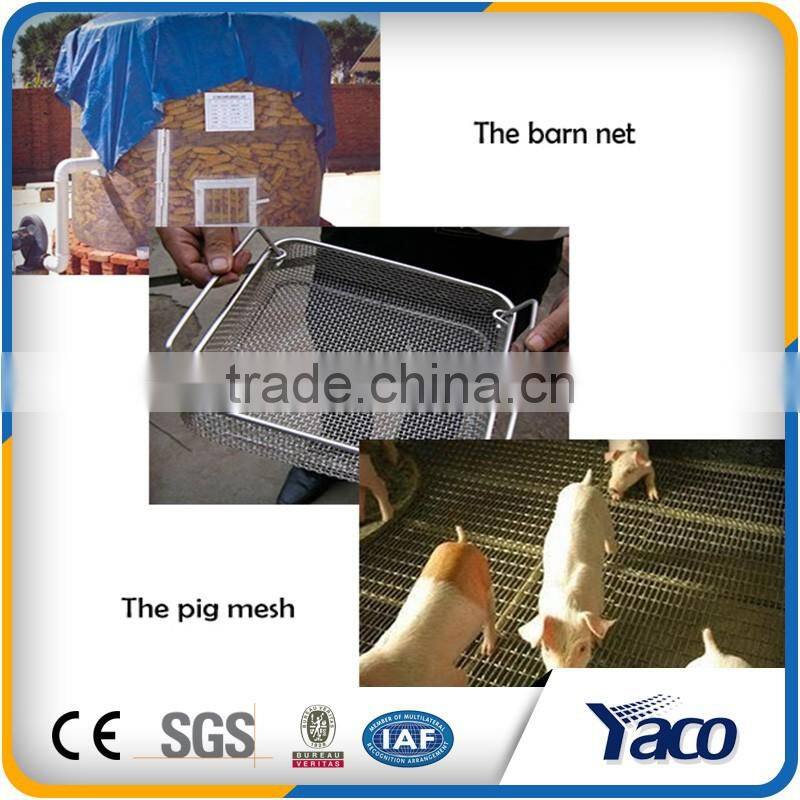

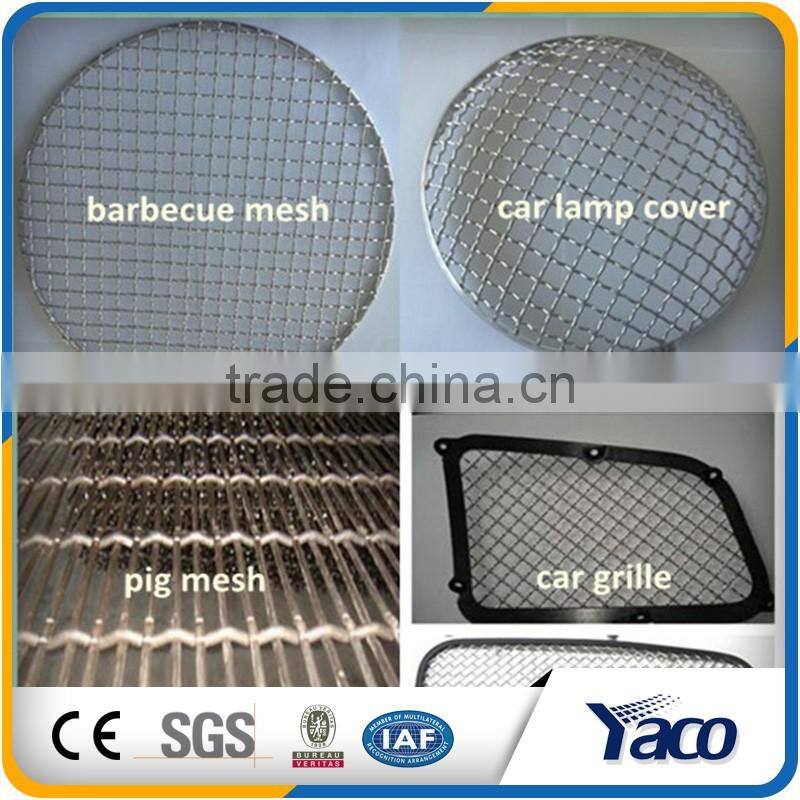

                                      Application

• Screening in mine, petroleum, chemical, building and food industry.
• Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway
• Used in screening and grading of solid materials
• Filtering of liquid

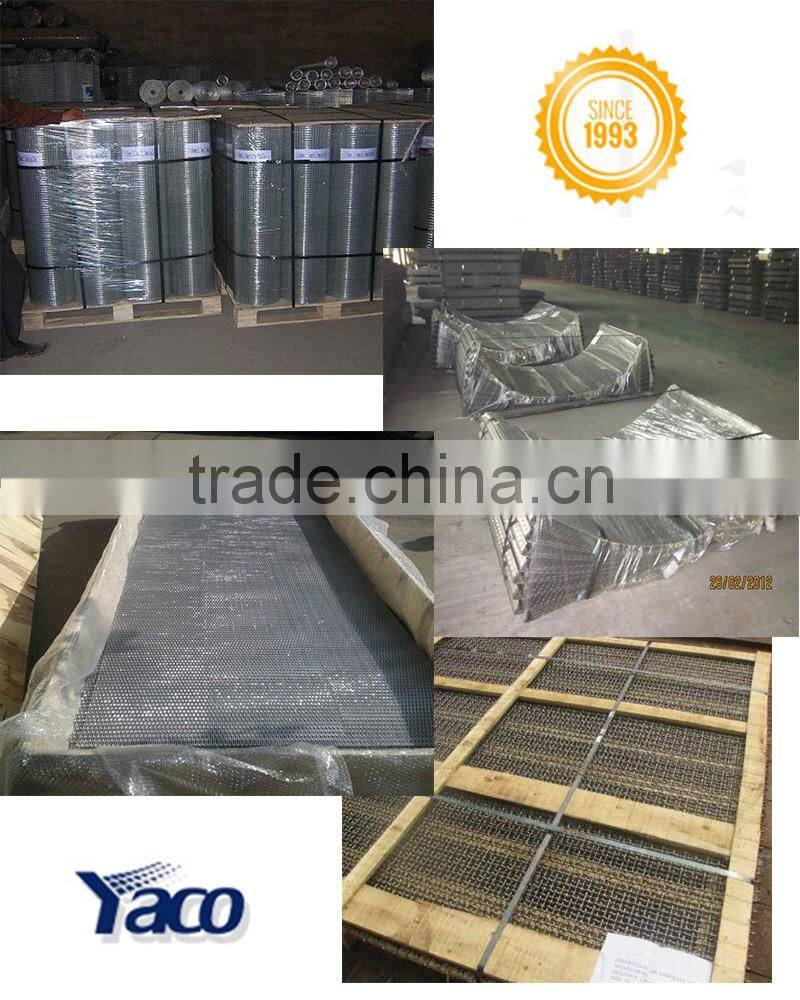

Delivery Detail: 15-20days based on your order quantity

 Anping Yachao Hardware Wire Mesh Manufacture Co., Ltd

  Our service

                                         FAQ

A: Can I negotiate the Prices?

          Yes, we may consider discounts for multiple container load of mixed goods

or bulk orders of individual products.

B: How long will it take to execute my order?

          This depends on the size and complexity of the order. Please let us know

the quantity and specification of the mesh so that we can advise a production

schedule.

C: Do you provide samples?

          Yes, we can supply samples for test.

D: How much will the shipping charges be?

          This will depend on the size of your shipment and the method of shipping.

When inquired about shipping charges, we hope to know the detailed information

such as models and quantity, your favorable method of shipping (by air or by sea,)

and your designated port or airport.

E: Can you give warranty of your products?

          Yes, we extend a 100% satisfaction guarantee on all items. Please feel free

to feedback immediately if you are not pleased with the quality or service. For the overseas orders, we guarantee most accessories. Provided emails with details, including pictures or short video, we will send guide manual or replacements at our

cost to repair.

F: How can I know the process of the order ?

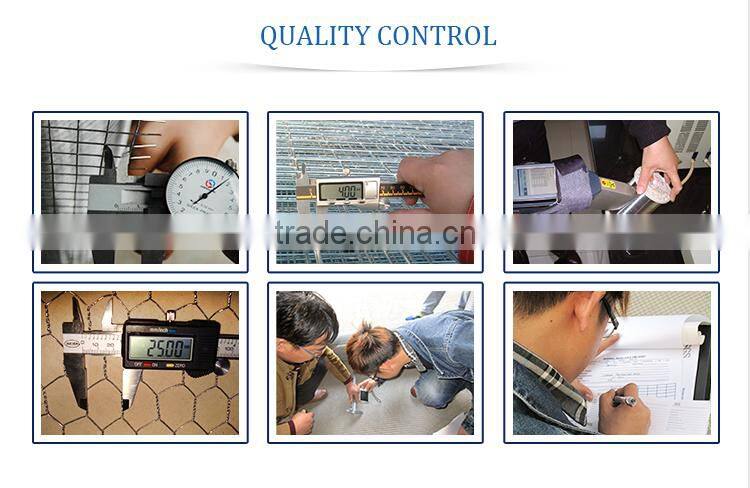

          We will inspect and test all items in order to avoid damage or missing parts before shipping.

The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
