Home > Products > Ventilation Fan > Exhaust Coling System
Exhaust Coling System
- Qingtao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Silver star | |
| Model Number | SS-900 |
Product Description

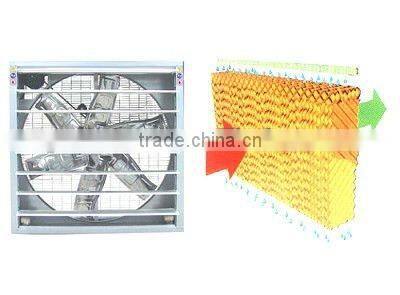

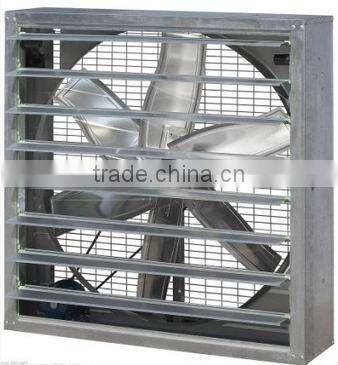

Exhaust coling system

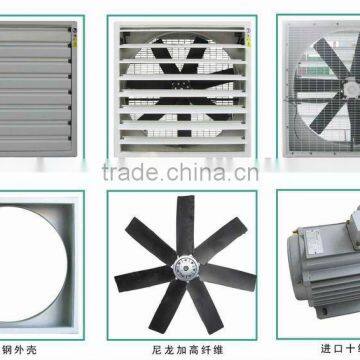

Our fan blades are made of stainless steel, large air volume, no distortion, no breaking, beautiful and resistance.
| Model | Blade | Blade | Motor | Capacity | Pressure | Noise | Power | Voltage | H | W | T |
| SS- | (mm) | Speed | Speed | m3/h | DB | mm | mm | mm | |||
| 710 | 710 | 960 | 960 | 23000 | 60 | ≤70 | 750 | 380 | 780 | 780 | 420 |
| 720 | 720 | 660 | 1400 | 22000 | 60 | ≤60 | 550 | 380 | 830 | 830 | 400 |
| 750 | 750 | 960 | 960 | 14800 | 60 | ≤60 | 750 | 380 | 820 | 820 | 400 |
| 750 | 750 | 630 | 1400 | 28000 | 65 | ≤65 | 370 | 380 | 900 | 900 | 400 |
| 900 | 900 | 610 | 1400 | 30000 | 70 | ≤70 | 750 | 380 | 1000 | 1000 | 400 |
| 1000 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
| 1100 | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220 | 1220 | 400 |
| 1250 | 1250 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
| 1400 | 1400 | 439 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |
We use a kind of automatic belt tension device so that the belt is not loose or out. The belt is made of high-strength aluminum-magnesium alloy with blasting treatment surface, makes it more beautiful and improve the eliminate stress and its own strength.
We use bearings imported from France, they are high strength, low noise, long service life. And the frame are made of the advanced automatic processing technology, thicker hot dip galvanized steel, with corrosion resistance.
The high-strengthcast aluminum wheels, new blades twisted metal forming; reasonable blade angle make it to reach the maximum air flow.
The high precision micro-computer aided manufacturing system allows the fan to maximize their effectiveness.
Eight strict quality testing; noise testing, vibrationtesting, static balance testing, dynamic balance testing, turning concentric performance testing, fan speed detection testing, machine efficiency testing.
Using iron concentrator, glass steel concentrator , ABS plastic concentrator. Demolished the rear of the safety netconvenient, CAD optimal design.
