Supply Galvanized Chick Cage for Small Birds

Specifications

supply galvanized chick cage for small birds

Automatic Pullet Cage:

Produced by Jinfeng,is certified by ISO9001:2008,Automated controlling system,easy

Maintenance and operation,anti-corrosive,long durability.The advanced ventilation system,

Automatic feeding system,and automatic controlling system can save energy,increase efficiency and lower feed conversion ratio.

Detailed Description:

1:Material:Q235 Steel Wire

2.Cage Size:1950*500*410mm(L*W*H/unit);

Tiers:3 Tiers;Cells/unit:3(650mm/cell*3cells)

Total birds/unit:30 birds; 10 birds/cell

(Cage Pic and Cage Drawing for reference)

Rearing period:Day1-Day70

Surface Treatment:Electricity Galvanization

1).The Cold Galvanization Processing Technics has been using in the Poultry Equipment for 20 years in China,it is widly used in Poultry Equpment which the Products with Cold Galvanization

Surface Treatment.The chicken dungs can be easily droped to the Dung Ditch(Drainage Ditch in the hen coop)becasue of the smooth surface,if not,the chicken dungs will be adhered to the wire mesh and cause the chickens and eggs polluted,but the smooth surface can supply a comfortable standing bottom wire mesh without injury,it can reduce the chicken's disease cased by the degree of fatique.feet injury.

Automatic Environmental Galvanization Line

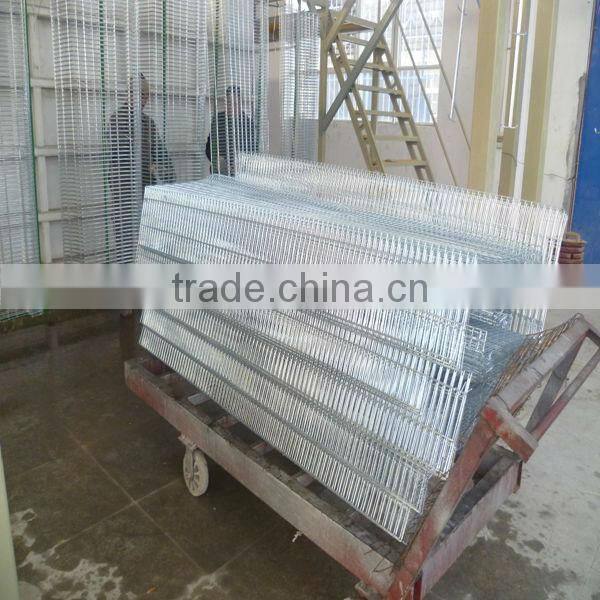

Pls check the galvanized effect below:

4.Cage Frame:

Hot Galvanization Surface Treatment,Guarranty≥10years

Feed Crib:

Length=4m/pc,made of concentrate PVC,Loading Capacity≥60Kg/PC

Water Pipe:Made of PVC material,Length=4m/pc,25mm*160pa

Nipple Drinker:Stainless Steel Nipple,Guarranty≥10years

Water Pressure Regulators:Including the water-terminal system

  manure removal system

Advantages of manure removal system

1.Transporting the chicken manure to the truck directly, ensure good environment of the chicken house.

2.Hot-dipped galvanized scraper blade,the durability is 15-20 years,never go rustiness.

3.The material of the conveyer belt is import corrosion protection PU/PE/silica gel,no transformation.

Ventilation and cooling system

electric control and alarming system

Advantages of electric control and alarming system

1.DELIXI and CHINT electronic components,very durable and high quality.

2.With kinds of protective device such as Power failure alarm,over heated alarm,open phase alarm and undervoltage alarm.

3.When the conditions happen in point 2,it can send messages to 5 different persons automaticlly.

Shipping Pics
