Shandong Modern Chicken House Poultry Equipment Used

                         Chicken House Poultry Equipment Used

                                               (BRAND:BANGCHI)

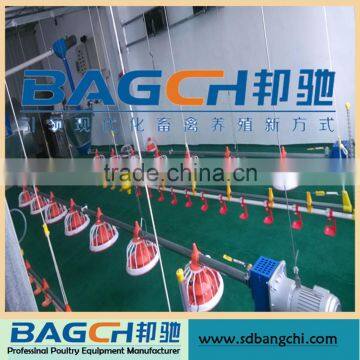

1.Pan Feeding System

Feed pan is the core of feeding system.

The pan feeding system for broilers is solid and reliable through the application of high quality materials

and components.Easy access for birds from day one to grow out.

	Feed pan is unique and won design, which consis of: (1) Pan deep, use to keep feed inside feed pan. (2) Grill, used to disport chickens from each other. (3)Inside cone and adjust ring, used to adjust feed fall amount.
	(1)Diameter of conveying pip:  45mm   (2)Material: Hot galvanized steel pipe with the zinc coating amount of more than 275 g/m2   (3)Helical spring auger from South Africa, feeding capacity: 450kg/h.
	V-shaped Bin ( with Hopper):    (1)Bin Volume: 115L,  Hopper volume: 38L   (2)Material: Hot-DIP galvanized sheet
	Material level sensor from Germany: Time delay    range 0 to 2 hours.
	High-quality special driving reduction motor:   Power: 0.75kw/1.1kw,  Voltage:380V/220V Frequency: 50HZ, Three-phase

2.Nipple Drinking System

Nipple Drinking System providing flesh and clean water for birds,which is very vital to let the birds

have a good growing performance.Meanwhile,nipple drinking system can make the poultry house

environment better.The nipple drinking system has been become the necessary equipment for stander

poultry feeding.

 1.Drinkers can be triggered from 360 degree which helps young birds start   well and makes drinking easier.

2.All the metal parts are hot galvanized for rust prevention.

3.Provide the right amount of water for their climate and house conditions.

4.The single-arm water receiving cup with a reasonable structure is more suitable for new culture idea.

3.Main Feeding System

 When feed fill up base hopper, then it is transferred to the feeders by delivery system.

The base hopper with qualities of large capacity, scientific design,firm structure, low cost, and

with long life span

4.Ventilation System

 The fan translations have all passed the experiment of homeostasis, which makes the air volume keep

the same at the very beginning during the operational lifespan.

5.Cooling Pad System

 The cooling pad works in the condition of negative pressure, and is installed in the side wall

or in the gable wall, and the fans are installed in the opposite side. The water film of recyclable

water system is formed in the surface of the pad, when the air goes through the pad, the heat will

be taken up by the water’s evaporation, so the air will be cooled before going into the house.

6.Heating system

Special designing of heat preservation to ensure the lowest heat loss. Heat efficiency amounts to 80%-90%

arming up fast, small volume, easy setting,high Reliability, low price.

7.Environment Control System

 Based on the windows 2000 of the automatic environmental Monitoring Network System of poultry house.

You can easily achieve centralized monitoring of environmental conditions within a certain range.

8. Plastic Slat for chicken house

1. Size:1200*500mm

2. Color: White and Black

3. Material: 100% Virgin plastic

4. Can be used with nest
