Automatic Broiler Feeding Line For Poultry

Automatic Broiler Feeding Line For Poultry

Chicken Feed Line with Pan

1) automatic chicken feed line with pan

2) a pan with 14 grids

3) also motor, hopper etc. included

Product Description

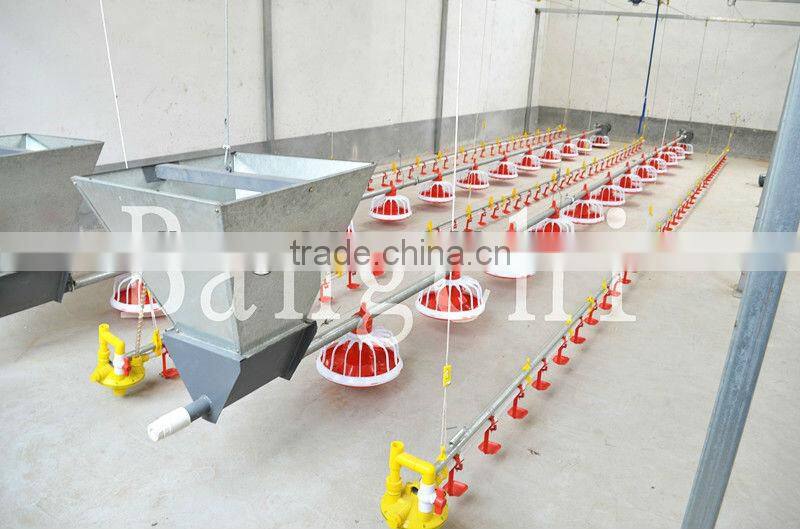

Broiler chicken automatic pan feeding system consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

Performance Parameters of Feeding Line System

1.High-quality special driving reduction motor.

Power: 0.75kw, Voltage:380V   Frequency: 50HZ, Three-phase

2.V-shaped Bin ( with Hopper)

   Bin Volume: 115L, Hopper volume: 38L

   Material: Hot-DIP galvanized sheet

3.Feeding system

   Diameter of conveying pip: 45mm

   Material: Hot-DIP galvanized steel pipe with the zinc coating amount of   more than 275 g/m2

   Helical spring auger from South Africa, feeding capacity: 450kg/h.

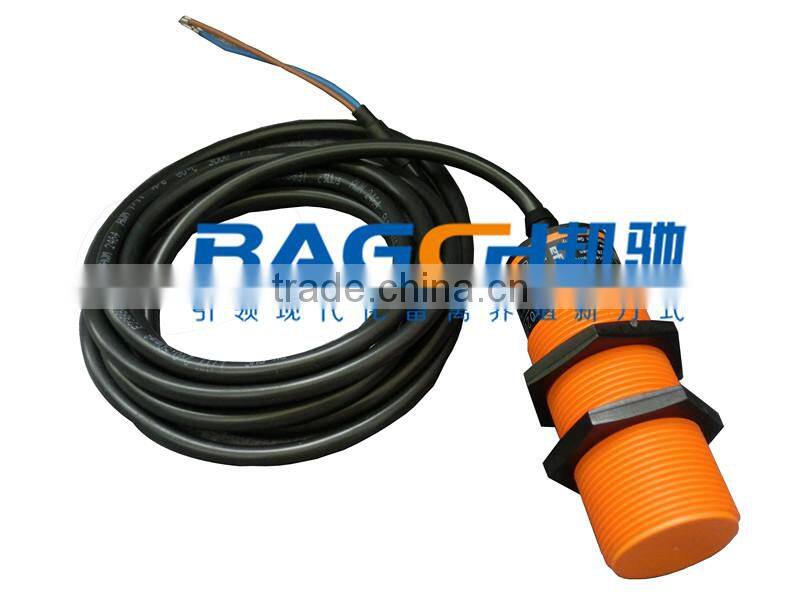

4. Material level sensor from Germany: Time delay range 0 to 2 hours.

It is composed of five different elements:

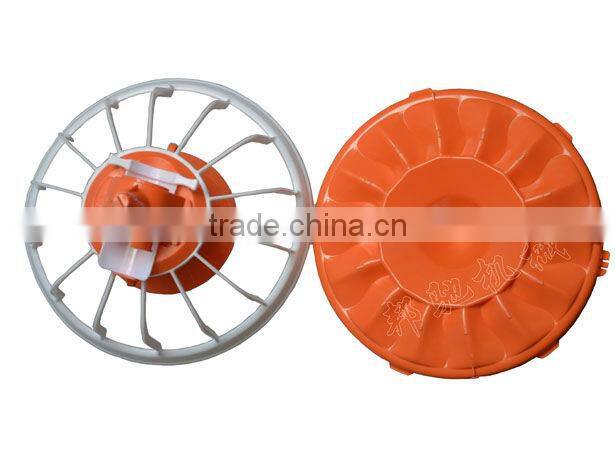

1. The poultry equipments feeder pan which features a special shape designed to avoid waste.

2.The adjustment device that dispenses the feed accurately

3. The poultry equipments of feeder pad have 14 grills designed to ensure easy access and featuring

a special spill proof edge

4.The internal cone, designed with 3 openings to facilitate feed flow for chicks

5. The Snap-Top make montage of the feed pan easy and the special opening on top is for

a steel cable that will keep the chicken from climbing on the feed line.

We also can provide you with overvalue services:

1. Poultry house site selection

2. Poultry house design and construction preparation guidance.

3. Breeding equipment installation

4. Breeding worker training

5. Breeding technology guidance

6. After-sale Service

We can design the good project as your shed size and chicken quantity.

pan feeding systems 1.Superior quality 2.Long life-span 3.Professional guidance 4.Competitive
