15% Discount Complete Automatic Chicken Feeder and Drinker

Chicken Feeders' main function of the system is to convey the feed in the hopper into

each tray to ensure the eating of the meat chickens and automatically control the conveying

opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

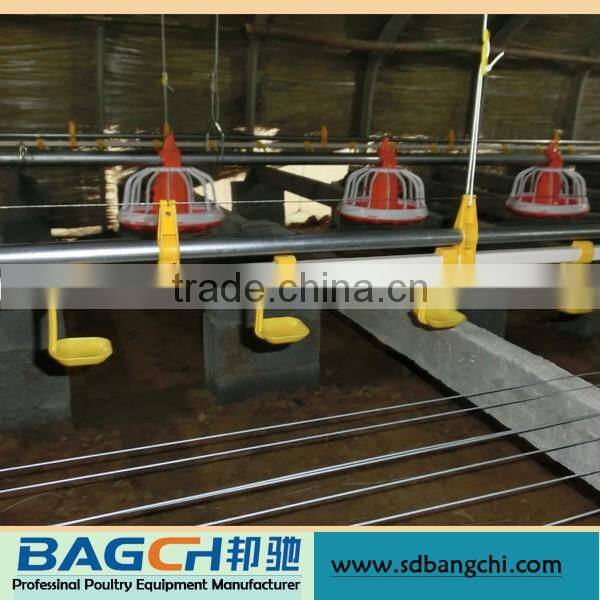

Chicken feeders line parts:

	Feed pan is unique and won design, which consis of: (1) Pan deep, use to keep feed inside feed pan. (2) Grill, used to disport chickens from each other. (3)Inside cone and adjust ring, used to adjust feed fall amount.
	feed pipe for poultry feeding system (1)Diameter of conveying pip:  45mm   (2)Material: Hot galvanized steel pipe with the zinc coating amount of more than 275 g/m2   (3)Helical spring auger from South Africa, feeding capacity: 450kg/h.
	V-shaped Bin ( with Hopper):    (1)Bin Volume: 115L,  Hopper volume: 38L   (2)Material: Hot-DIP galvanized sheet
	Material level sensor from Germany: Time delay   range 0 to 2 hours.
	High-quality special driving reduction motor:   Power: 0.75kw/1.1kw,  Voltage:380V/220V Frequency: 50HZ, Three-phase

Chicken Feeder System advantage:

1. Used for one day chick until Grown Up.

   Special Design make bird feeder pan fit for one day chick until Grown Up.

   Bottom Height 5.5cm. Make it easy for one day chick to have feed.

   When chick grow up, turn regulator for each age of birds.

2.Save feed

No matter the age of the chick,bird feeder system could fit them always.

 it have 6 steps regulator, any age of bird could save feed.

3. Easy to dismantle and install

Dismantle and install just turn the bottom will be okay.

Easy to control.

Automatic chicken waterer consist of

1.drip cup

 2.Nipples

 3.Nipple Drinking lines and tube

 4.Winch and winch shake

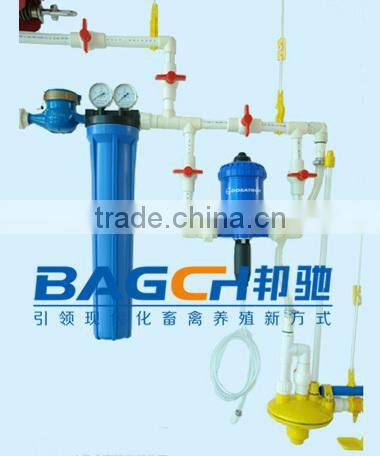

 5.Water meter, medical pump,decompression filter and pressure regulator

 6.Main water system

 7.Hanging system

 8.Head /middle water inlet system

 9.End water outfall system

Automatic drinker for chicken Advantages:

1.Drinkers can be triggered from 360 degree which helps young birds start well and makes

drinking easier.

 2.All the metal parts are hot galvanized for rust prevention.

 3.Provide the right amount of water for their climate and house conditions.

 4.The single-arm water receiving cup with a reasonable structure is more suitable for new culture

idea.

Water Level Display Height:

 In summer, the chickens have large water consumption, and the water level can be raised

 by 30-50mm.

 Chicken Feeder Pipe naked pack,every 7 sets to a bundle.

Chicken Feeders line accessories packed by carton

 We will offer professional opinion to you

1. Poultry house site selection

2. Poultry house design and construction preparation guidance.

3. Breeding equipment installation

4. Breeding worker training

5. Breeding technology guidance

6. After-sale Service

Our company has concentrate on poultry equipment for many years.We already gain

many reliable customer with high quality,competitive price and superior

service.We sure any of your inquiry will get us prompt reply and highly

attention.Welcome you contact us here.You can trust us!!

1.Q:what should we do if we need whole poultry equipment?

    A:please tell us your chicken house size(length and width) and chicken quantity you will raise.

 2:Q:How many feeder pan and nipple drinker on one line?

     A:We have 3  and 4 pieces pan on every 3 meter and 12 or 15 pieces nipple on every 3 meter.
