Chicken Feeders and Drinkers Galvanized for Broiler
- Qingdao
- T/T Credit Card
You May Like
-

                        Chicken Poultry Rearing System
-

                        Broiler Poultry Farm Equipment Automatic Silo/Feeding/Drinking/Fan/Cooling Pad/Heater/Controller System for Farming Chickens
-

                        Agricultural Equipment Farm Machinery Automatic Poultry Control Shed Equipment for Breeding Broiler Chicken Birds
-

                        Hot Sale Poultry Farm Machinery Automatic Chicken Breeding Equipments Feeders and Drinkers For Farming Broiler Birds
-

                        Automatic Chicken House Equipment For Poultry Chicken Farm
-

                        Agricultural Automatic Poultry Farm Machinery Equipment For Raising Broiler Chicken Birds
Product Details
| Place of Origin | Shandong, China | Brand Name | U-BEST | |
| Model Number | UBT-12 |
Product Description

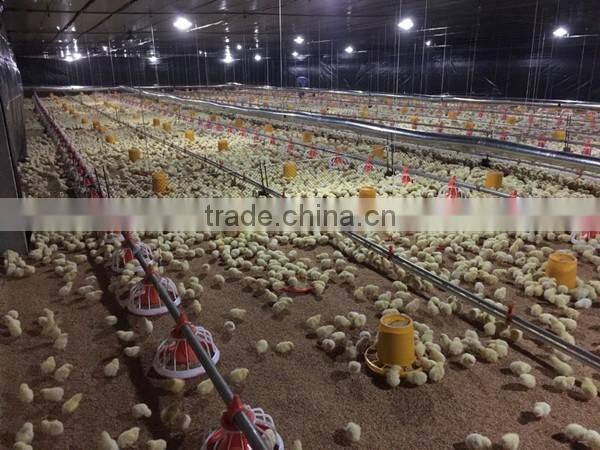

chicken feeders and drinkers galvanized for broiler
automatic chicken feeders system including:
Main feed line:Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of
main feed line which controls motor on and off to achieve automatic feed delivery.
Advantages:Reduce labor intensity, one person is enough for one house.
Main components of main feed line system(chicken feeders and drinkers galvanized):

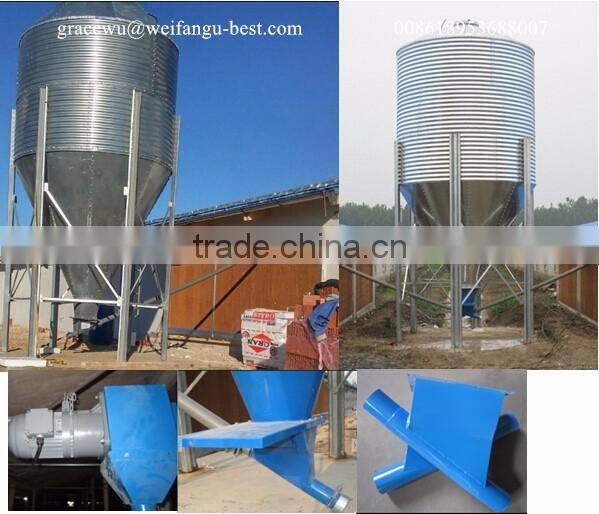

(1).Silo features: Material: Galvanized sheet; Capacity:2.5T to 27T; Silo boot: one/two/three/four outlet
Silo parameters:
| Capacity (Ton) | Diameter (m) | Floors | Leg (mm) | Weight (kg) | Height (m) | Under the port Dia(mm) |
| 3t/4.283 | 1.8 | 1 | 2.0 |
 | 3.8 | 420 |
| 4t | 1.8 | 2 | 2.0 |
 |
 | 420 |
| 5t/7.143 | 2.45 | 1 | 2.0 | 420 | 4.7 | 420 |
| 8t/12.33 | 2.45 | 2 | 2.0 | 470 | 5.6 | 420 |
| 10t/14.23 | 2.75 | 2 | 2.5 | 600 | 5.6 | 420 |
| 13-15/223 | 3.1 | 2 | 2.5 | 640 | 5.6 | 420 |
| 16t/22.53 | 2.8 | 3 | 2.5 | 655 | 6.5 | 420 |
| 20t/28.53 | 3.1 | 3 | 2.5 | 755 | 6.5 | 420 |

(2).Driving motor: 0.75kw, 380V, 50HZ, three phase, AC current
(3).Feed conveying pipe: diameter: 75*3.6mm, Material: PVC; Auger from South Africa, Feeding abality: 1400kg/h
(4). Feed Level sensor: Germany IFM feed level sensor.

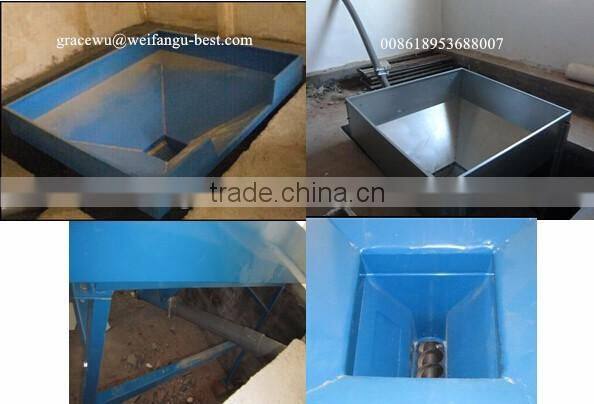

(5).Manpower hopper: If you don't use silo, you can use manpower hopper.Usually,if you just build one or two
farm,we suggest you use hopper instead of silo.

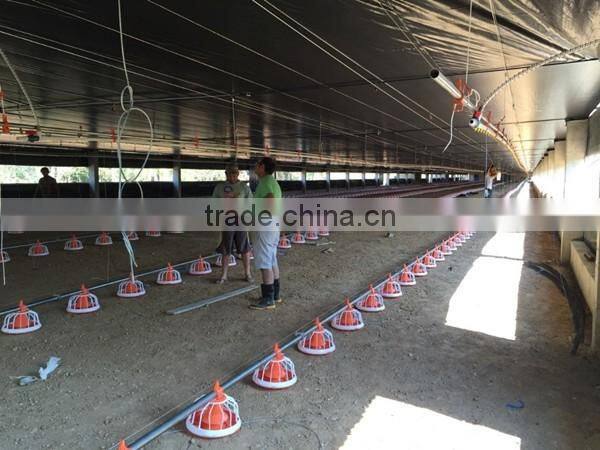

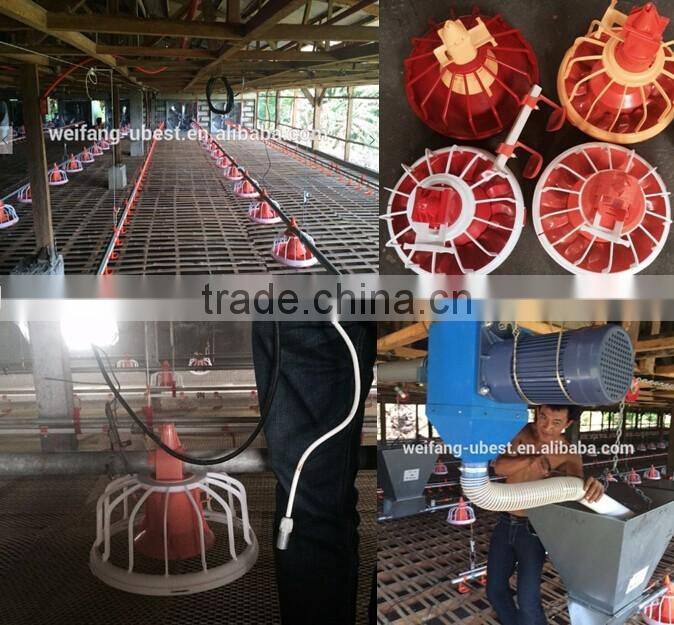

chicken Pan feeding system (chicken feeders and drinkers galvanized):
High-quality special driving reduction motor:
Taiwan Motor with overload protection of IP55)
Power:0.75kw Voltage:380V Frequency: 50HZ, three phase AC current
V-shaper Bin(with hopper):
Bin volume: 115L, Material: hot-dip galvanized sheet. Material thickness: 1mm
Feeding system:
Diameter of conveying pipe: 45mm (4-pan/3m, 3pan/3m).
Material: hot-dip galvanized sheet pipe with the zinc coating amount of more than 275 square meter .
Helical spring auger from South Africa feeding capacity:450kg/h.
Sensor from Israel:
time delay range 0 to 2 hours.
Suspension and lifting system:
It's very convient to adjust the feeding line height by winch.

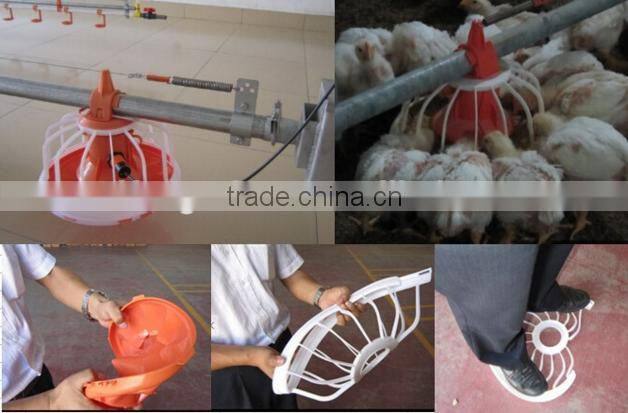

Details of broiler feeder pan:
| Details of broiler feeding pan | |
| No. of grilles per pan | 14 |
| No. of birds per pan could feed | 40-55 |
| Distance per grille | 70mm |
| Density of broiler | 13-18 birds/M2 |
| Max feed per pan for one bird per day | 180g/bird |
| Dimension | 330mm×330mm |
Features:
Easy installation.
The system can used consistently from day old to adult.
Long life.
Slates can easy to clear and keep poultry healthy.
Automati chicken drinker system:
Function:Supply clean water to each nipple steady, chicken can drink water from 360 degree freely.
Main parts of automatic nipple drinking line system:
1).Front part of watering system: Adjust water supplying pressure and stabilizing drinking volume, this part
is usually installed in control system.

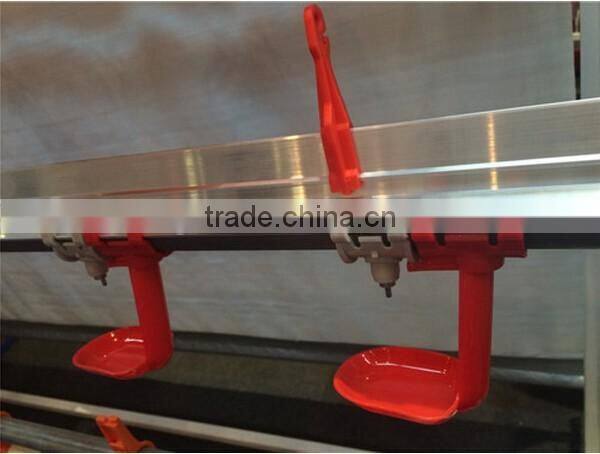

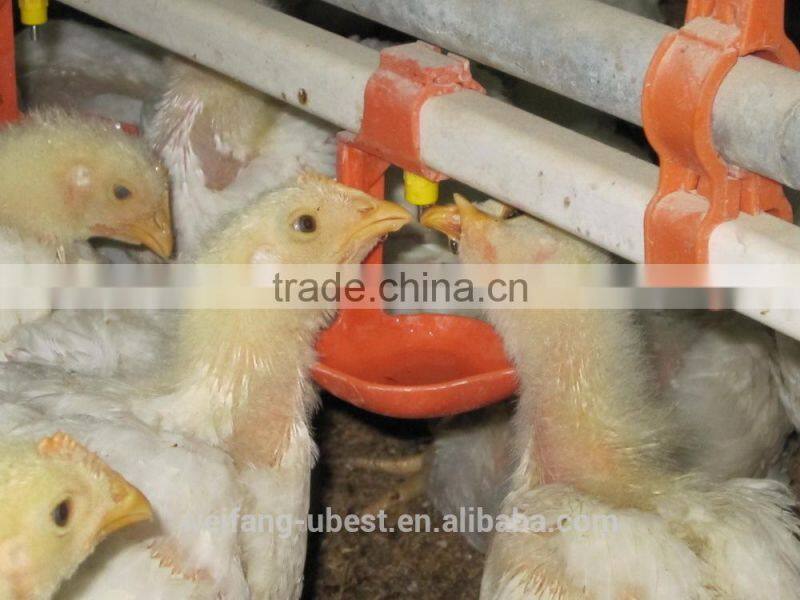

2).Water square pipe with nipples and drip cup:3m/12nipples,3m/15 nipples are optional.
3).Anti-perching system: prevent chickens stand on the water pipe.
4).Lifting and suspension system: Correct height for drinking system is very important for chicken(both higher
and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water
wasting), it’s very easy to adjust drinking system’s height if use this system.
5).Water dislay level tube: Use high transparency & impact resistant material, it’s sturdy and durable, and
convenient to watch water level. This device with advanced design, it’s very easy to take down and clean.
6).Pressure regulator: Regulating stability, high switching performance, water supply is sufficient& equality,
recoil cleaning with good cleaning result and can save time and water.
7).Medicator (French Dostran):
Can add medicine into drinking system automatically.
Don’t use power, it’s economic and reliable.
Accurate, after setting, it can adjust medicine volume according to water pressure change.
Its easy to control and maintain with good corrosion resistance.

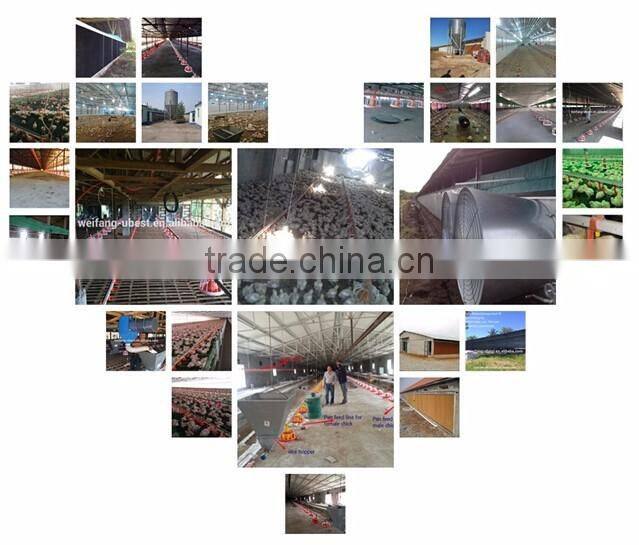

We have lots of construction projects home and abroad, our sales volume in Philippine market is NO.1, we are the best
and the most reliable supplier in this area, our company also have exported to Sudan, Saudi Arabia, Algeria, Nigeria,
Zimbabwe, Mozambique, South Africa,Tanzania, Zambia, Taiwan,Philippines, Indonesia,Pakistan,Uzbekistan,UAE,
Lebanon, Qatar, Palestine, Kosovo, Peru, Columbia, Honduras, Dominica Republic,Paraguay, Costa Rica, Australia, Fiji…
All get good feedback.In addition, our company is recruiting global agents, welcome you to join us with our utmost and
warm expectation.If you need more specific information, please contact us , we will provide you professional and detailed
solving plans.
chicken feeders and drinkers galvanized Factory information:
chicken feeders and drinkers galvanized COMMON RFQ:
1).chicken house Size: (length×width × height) or tell us how many chickens will you raise.
2).Your local voltage and frequency, single phase or three phase.
3).Weight of chicken when you sale to the market (the rearing period, From   -  weeks).
4).Types of chicken: laying hens or broiler chickens.
5).Types of breeding: in cages or on the ground.
6).Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.
chicken feeders and drinkers galvanized CONTACT US:
Grace Wu
Email:gracewu(at)
Cell:008618953688007(WhatsApp)
Website:
QQ:1024314389
Skype:gracewu1107
Add:South of Minzhu Street,North of Youyi Road
Weifang Economic Development Zone,Weifang, China
