Poultry Farm Heavy Duty Exhaust Fan Ventilating Fan With CE Certificate
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Stainless Steel | Place of Origin | Shandong, China | |
| Brand Name | Jinlong | Model Number | JLF(c)-1000 | |
| Voltage | 380V | Power | 750W | |
| Air Volume | 30000m3/h | Speed | 1400rpm | |
| Certification | CE, Other, CE, ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
poultry farm heavy duty exhaust fan ventilating fan with CE certificate
Heavy Hammer Exhaust Fan Products Features:
 |
Application: this kind of exhaust fan is widely used in poultry house, greenhouse, workshop, warehouse, plant, factory, basement, garage and so on in the fields of Livestock Breeding, Agriculture, Flowers and Plants, Textile Industry, Mining, Chemical Industry, Pharmaceuticals Industry, Lumbering and so on. |

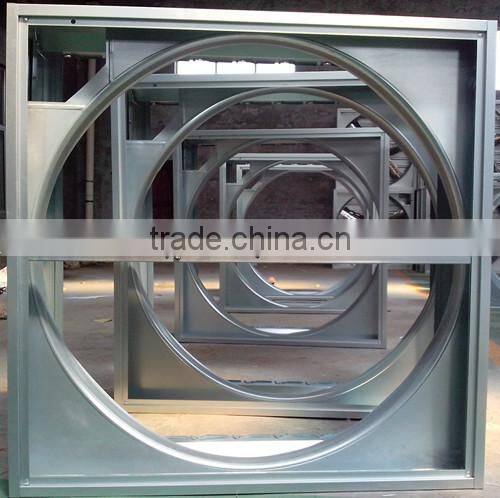

| Frame: galvanized steel sheet, anti-corrosive, durable. 1.0mm for the top and 0.8mm for the other sides |

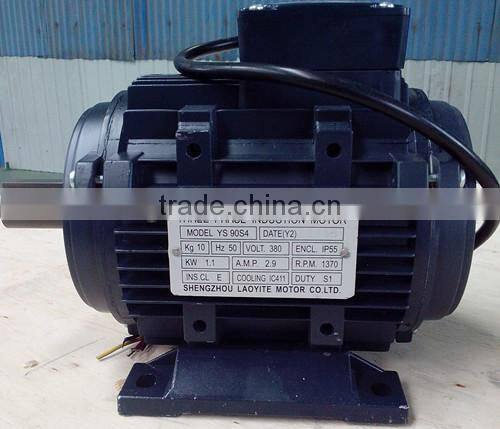

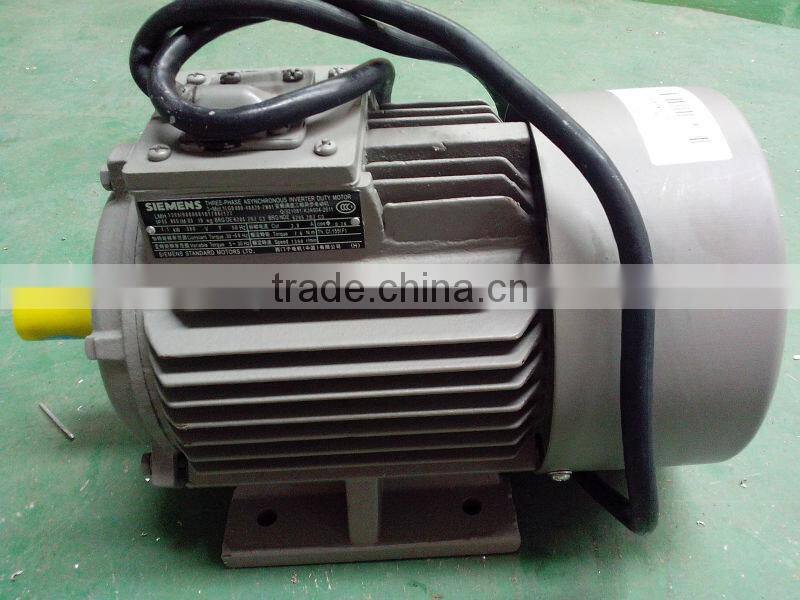

| Motor: Siemens motor and Chinese motor are available, high efficient and energy-saving with CCC certificate. Protection class: IP55. Insulation class: F. The voltage, frequency, power and phase can be customized.
Motor RPM: 1400r/min
Motor base: both 1.5 HP and 1 HP motor can be installed
Motor hole: installation hole of motor and nut are all six angles instead of the roundness |

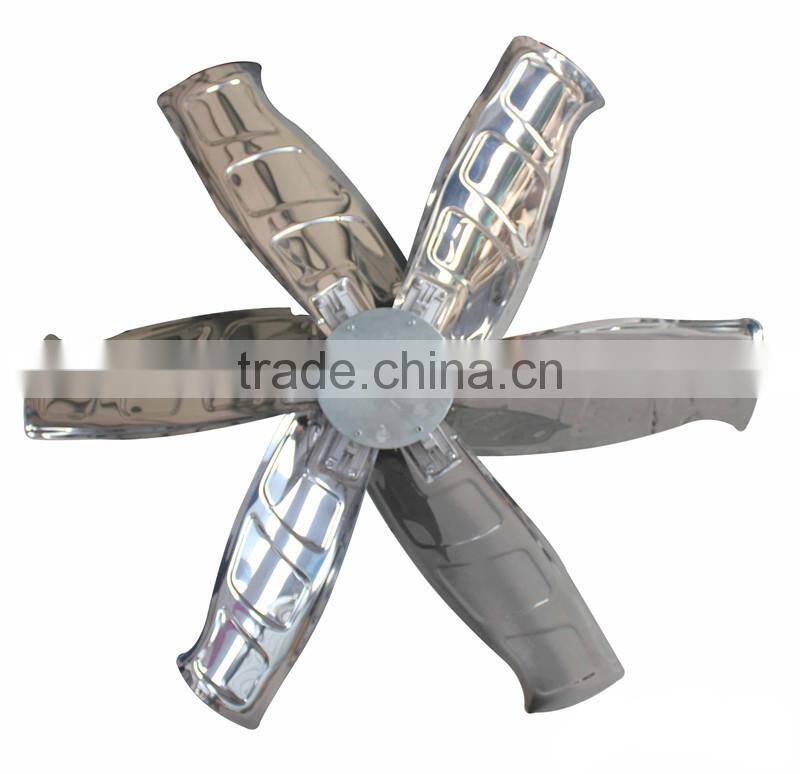

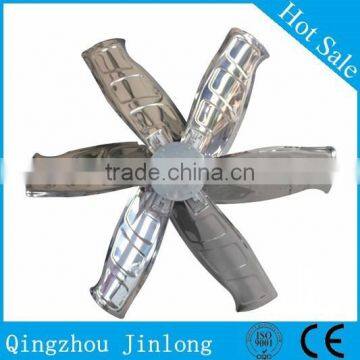

| Blades: 6 pcs of BA 430 stainless steel. Thickness: 1.2mm
Blade instruction: weight difference between blades is less that 0.5g, blades will go through balance test after assembled which can assure steady running and even airflow |

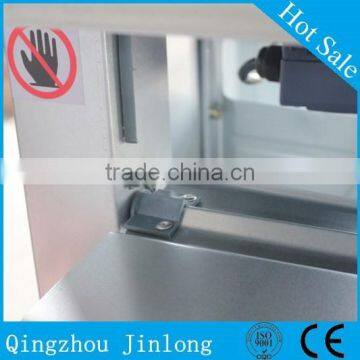

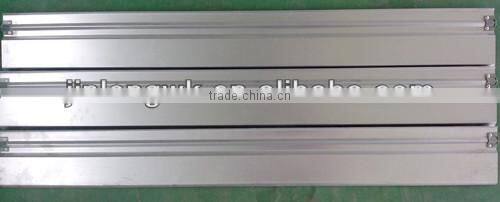

| Shutter: made of high strength hot-galvanized steel sheet, dustproof and waterproof
Shutter thickness: 0.45mm.
Shutter linkage: aluminum. |

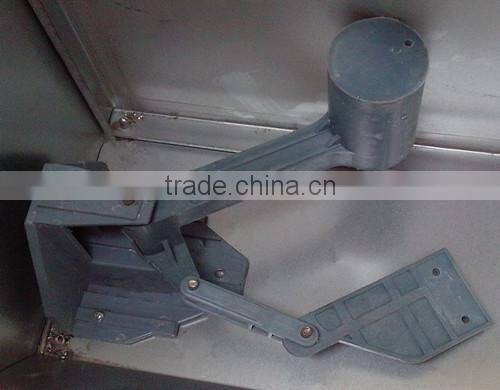

| Swung drop hammer: made of high quality nylon, stable performance, guaranteeing the shutters open and close flexibly |

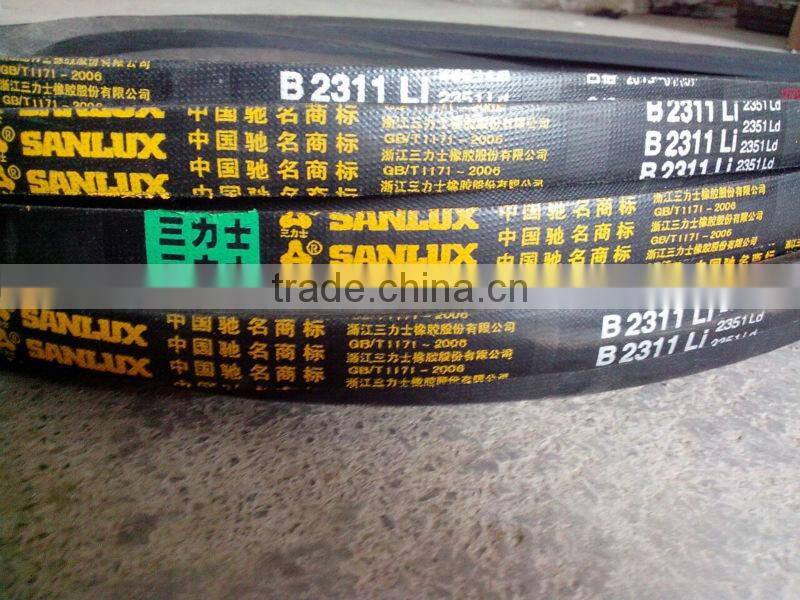

| Belt: China famous brand Sanlux belt, Japan Mitsubishi belt, Korea Dongil belt |

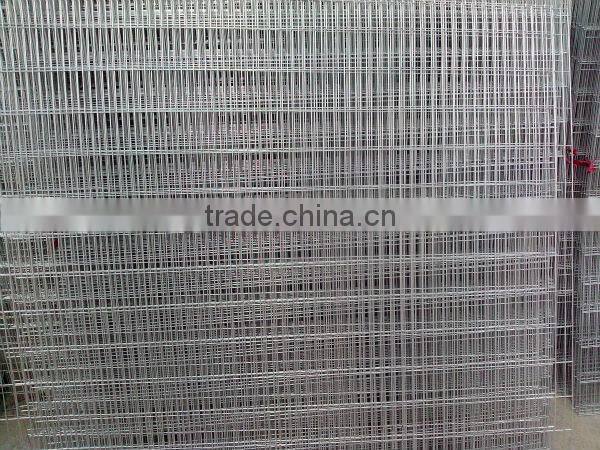

| Net guard: made of hard-drawn wire, designed as door-type, which is convenient for maintaining |
| Small belt pulley: cast iron

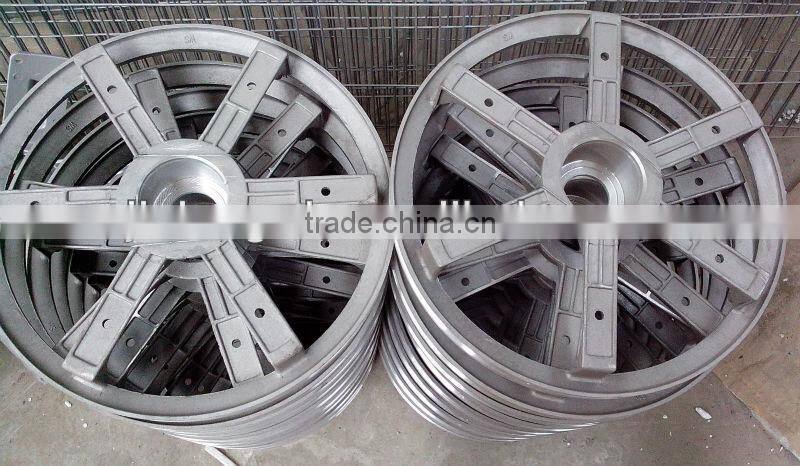

Big belt pulley: made of aluminum magnesium alloy by injection moulded, reducing the weight of blade and impeller, high corrosion resistance. Blast-sanding treatment for attractive appearance, eliminating internal stress to improve its own rigidity and stability, high strength |

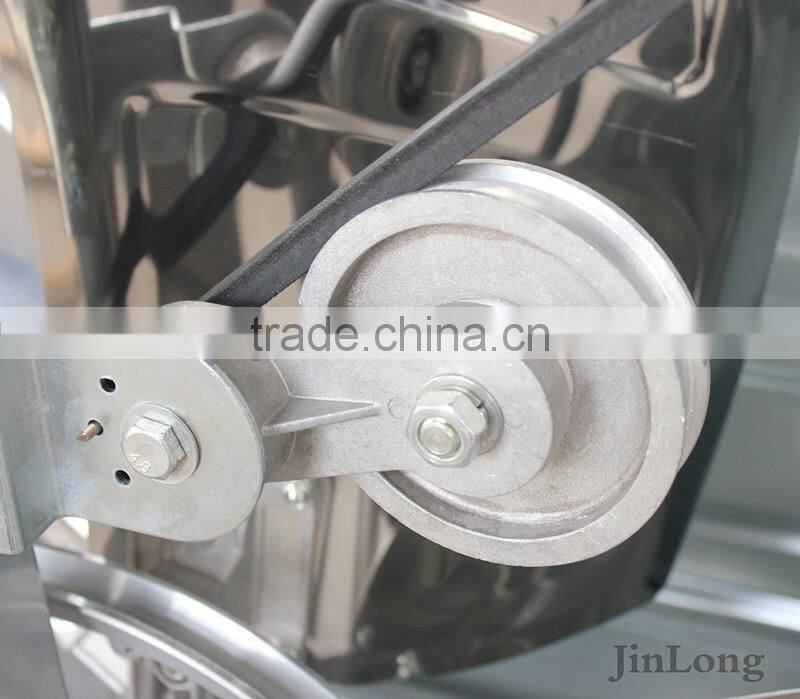

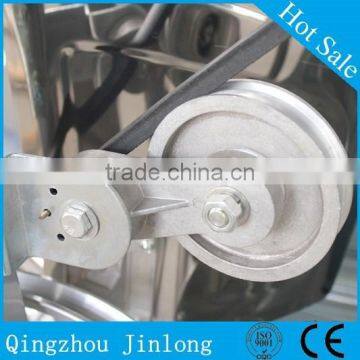

| Belt tensioner: made of high quality aluminum magnesium alloy, avoiding belt loosening or dropping off, extending service life and avoiding distortion |
| Belt impeller: made of aluminum magnesium alloy by injection moulded, adopting more stiffening rib, processed by sandblasting,, eliminating the internal stress, high intensity, low noise, long service life |

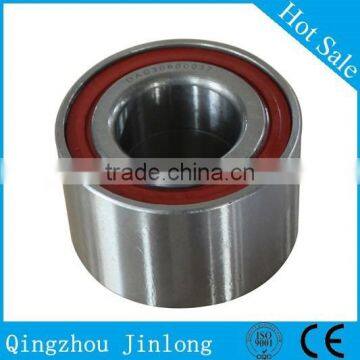

| Bearing: imported double-row bearing, super mute, high intension and durable, adopting special waterproof design, high intension, low noise, maintenance-free and long service liife |
| Guarantee period | 1 year, easy broken parts are offered free of charge during this period |
| Packing | singular packing, corrugated carton |
Heavy Hammer Exhaust Fan Technical Parameters:
ddModeldd | Diameter blades(mm) | Blades rotational speed (rpm) | Motor rotational speed(rpm) | Air flow (m3/h) | Total pressure(Pa) | Noise
| Import power(W) | Rated voltage(V) | High (mm) | Width (mm) | Thick (mm) |
JLF(c)-620 | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620 | 620 | 400 |
JLF(c)-780 | 710 | 960 | 1400 | 18000 | 75 | ≤70 | 370 | 380 | 780 | 780 | 400 |
JLF(c)-800 | 720 | 660 | 1400 | 20000 | 60 | ≤60 | 550 | 380 | 800 | 800 | 400 |
JLF(c)-900 | 750 | 630 | 1400 | 22000 | 65 | ≤65 | 370 | 380 | 900 | 900 | 400 |
JLF(c)-1000 | 900 | 610 | 1400 | 30000 | 70 | ≤70 | 750 | 380 | 1000 | 1000 | 400 |
JLF(c)-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
JLF(c)-1220 | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220 | 1220 | 400 |
JLF(c)-1380 | 1250 | 439 | 1400 | 40000 | 56 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
JLF(c)-1530 | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |
About our company:
Qingzhou Jinlong Temperature-controlled Equipment Co.,Ltd is a professional manufacturer of exhaust fan, evaporative cooling pad, light trap, air inlet and heater. We use good materials to produce high quality products .Our company have passed ISO9001 Quality certifcate .And our products passed CE certificate.
We have full production equipments for produce exhaust fan and other products. Which make sure we have 100% control of the products. With the sustained business conception of " credit is the basis, quality is the first", we gain the high trust from customers
Welcome to contact us for coopertion.
FAQ :
Q: What voltages you can do , if you can make special voltages ?
A: Normal standard is 380V for 3phase, 220V for singple.The voltage and herz can be customized as your requirement.For example,400V,240V,60Hz.
Q: Hong long is the warranty?
A: One year. Brokens parts can be provided free of charge during this period.We use good materials and motors,the fans are hardly broken.
Q: What is the MOQ , can I order a sample for test?
A: MOQ is 10sets, it's for convienence to arrange products. If you need sample for test ,then order large quantity, 1 set for sample is ok,too.
Q: Are you real manufacturer or ..?
A: Yes, we are 100% original manufactuer of exhaust fan.Our factory located at Qingzhou city,Shandong province.Welcome to visit us.As a manufacturer, we have strict control of the material purchase and productions quality. Make sure the goods delivery to you are unwounded and perfect.
Q: How can I pay?
A: We accept TT(Telegraphic transfer) and L/C(Sight letter of credit).30% deposit is needed for TT payment.Balance against the copy of B/L(bill of lading)
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products , it's all by your request .
Welcome to contact me for more details
Contact person: wendy
Mob:0086-15005365730
Tel:0086-3529853
Fax:0086-3529387
Skype:wendy_reipu
