470 mm 580mm Air Circulation Fan for Greenhouse
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot China Industrial Fan for Sale Low Price
-
Hot Sale Qingzhou Exhaust Fan Motor for Sale Low Price
-
Air Circulation Fan With Stainless Blades
-
Long Seivice Life Air Circulation Fan For Greenhouse/Poultry House
-
Livestock Farm JLF Series Air Circulation Fan
-
JLFD50-4 Air Circulation Fan for Garment Factory
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Stainless Steel | Place of Origin | Shandong, China | |
| Brand Name | Jinlong | Model Number | JLFD(s)40-4 | |
| Voltage | 220/380v or required | Power | 180/500w | |
| Air Volume | 3800/7000m3/h | Speed | 1400rpm | |
| Certification | CCC, CE, CSA, GS, ROHS, UL, Other, CCC, CE, CSA, GS, ROHS, UL, iso | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

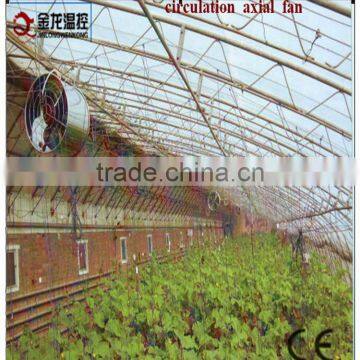

470 mm 580mm air circulation fan for greenhouse
High quality assured mini exhaust fan for sale low price
model | phase | Blade diameter | voltage (v) | Frequency (hz) | Power (w) | Motor rotational speed(rpm) | Air flow (m^3/h) | Weight (kg) | Size |
JLFD40-4 | single | 400mm | 220 | 50 | 180 | 1400 | 3800 | 10 | 470*470*340mm |
JLFD40-4 | three | 400mm | 380 | 50 | 180 | 1400 | 3800 | 10 | 470*470*340mm |
JLFD50-4 | single | 400mm | 220 | 50 | 500 | 1400 | 7000 | 14 | 580*580*350mm |
JLFD50-4 | three | 400mm | 380 | 50 | 500 | 1400 | 7000 | 14 | 580*580*350mm |
1. Motor: Siemens or Chinese motor, 3-proof special-purpose with high performance, excellent design and performance, passing through 360 hours test in the laboratory, adopting punch outer crust and rolling bearing with low noise, long service life. The voltage, HZ, phase can be customized. Or customers can order fans without motor.
2. Frame: stainless steel frame designed by overall current collector, international advanced power-saving technology and automatically heat protected system.
3. Blades: made of light aluminum plate, with large angle, big airflow and low noise.
4. Parts: made of excellent thin steel with good quality, attractive and easy to mount.
5. CAD optimization design air volume: 840-8700m3/h, keeping the air circulation of the house and balancing the temperature, humidity and carbon dioxide chroma everywhere. 6. Outer frame: stainless steel or steel spraying.
7. Type: tensile type or straight type.
8. Hanging fastening: with which the fan can be adjusted freely and installed easily.
