TaiYu Factory Chiken House

Item

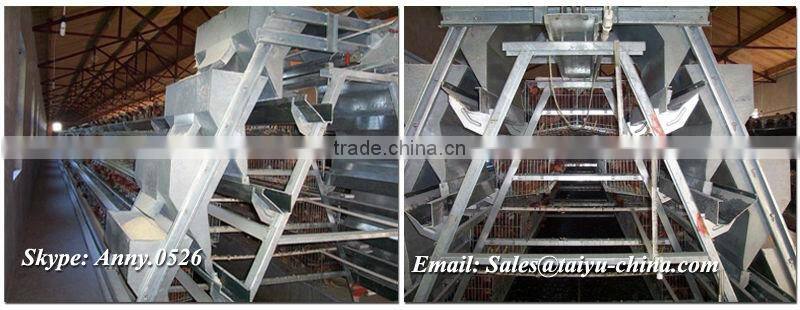

Broiler Cage

Egg Laying Chicken Cage

3-tier /2-door

3-tier /5-door

Set capacity

120 birds

120 birds

Cell capacity

10 birds

4 birds

Cage size

  5.25 by 6.89 by 5.4 feet

7.2 by 7.9 by 5.0 feet

Cell size

31.5 by 13.8 by 16.54 inch

16.9 by 16.6 by 16.5inch

Fittings

Cages, cage frame, water pipe, drinkers, feeders, other necessary fittings Drinking system is automatic, after installation then put birds and food

Materials

Q195  steel  wire , Q235  steel  wire

Recommended  Sets/Row

Lifespan

5 years to 30 years as different countries' climate and poultry house design

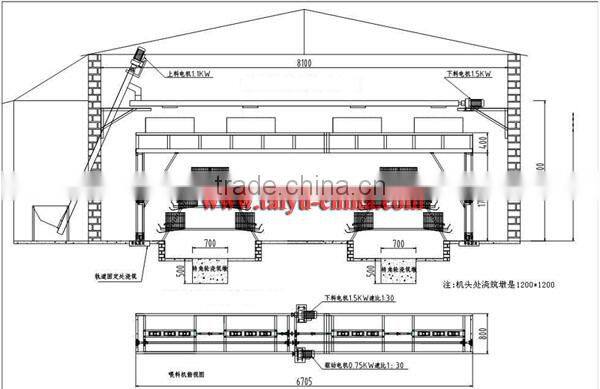

 Technical data of automatic feeding system

Item

Specification

Source Type

AC, 3-Phase

Rated Power

0.75KW - 0.11KW

Rated Voltage

220V/380V

Outline Size

L by W by H = (2.3-2.7) by (1.2-1.5) by (2.0-2.25)m

Hopper Size

L by W by H = 0.66m by 0.256m by 0.5m

Working Average Rate of  the Hopper

Around 15 g/m

Feed Capacity of each Hopper

35KGS - 100 KGS/piece

Working Speed

10 - 15 Meters/Min

Structure Weight

550KG

Supporting Orbits

Thickness = 3.0mm

Diam = 50mm

Orbits Material

Hot deep galvanized Pipe

Transverse Auger Conveying Feeding Equipment

Diameter = 75mm to 150mm

Connected with the Silo

5,000KGS to 15,000KGS

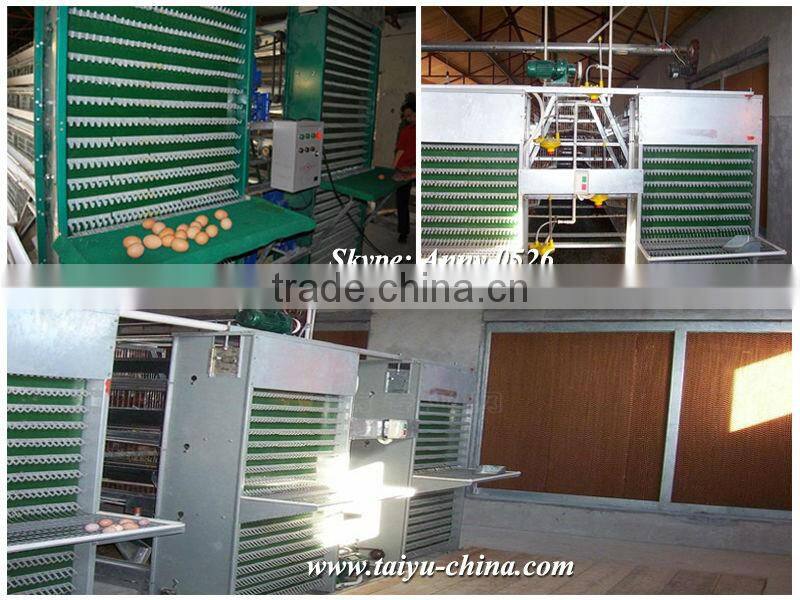

 Technical data of egg collection system

Items

Specifications

Size(L×W×H)

(2.2~2.8) M × (1.0~1.5) M × (2.0~2.6) M

Source Type

AC,3-Phase Source

Rated Voltage

380V

Rated Power

0.75~3.0KW

Egg collection ability

>3000 PIECES/HOUR

Egg Broken Rate

≤1%

Belt Working Speed

1~3 M/MIN

Working Type

4 tiers working together

Paint Thickness

≥0.05MM

Machine Weight

700KGS

Egg collecting belt

Common one and Best quality imported from Italy

Egg collecting belt width

100MM

2.easy installation , maintenance and operation

3. save electricity, one day open one time
