Taiyu Full Automatic Poultry Layers Equipment

  Specification of A type egg laying chicken cage

Item

3-tier

4-door

3-tier

5-door

4-tier

4-door

4-tier

5-door

Set capacity

96 birds

120 birds

128 birds

160 birds

Cell capacity

4 birds

3 birds

4 birds

4 birds

Cage size

6.5 by 9.9 by 5.4 feet

7.2 by 7.9 by 5.0 feet

7.2 by 9.9 by 6.0 feet

6.5 by 9.9 by 6.0 feet

Cell size

18.5 by 13.8 by 15inch

16.9 by 16.6 by 16.5inch

18.5 by 13.8 by 15inch

16.9 by 16.6 by 16.5inch

Fittings

Cages, cage frame, water pipe, drinkers, feeders, other necessary fittings

Drinking system is automatic, after installation then put birds and food

Materials

Q195  steel  wire , Q235  steel  wire

Surface  Treatment

Common Cold  Galvanization, Advanced  Cold  Galvanization

Hot Dip Galvanization

Rearing  Period

 16  weeks— 72  weeks

Bottom  wire  mesh  angle

9°

Recommended  Sets/Row

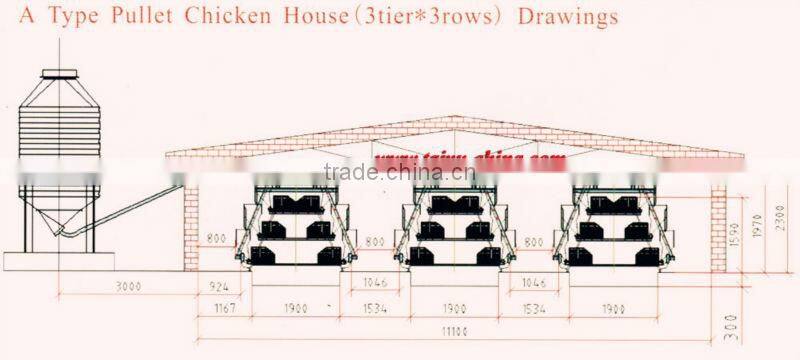

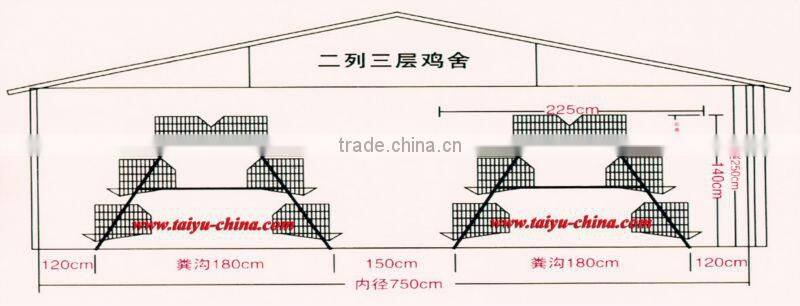

Recommended House size

5000 birds: 2 rows in 6.8m by 53m

10000 birds: 3 rows in 9.8m by 67m

Lifespan

5 years to 30 years as different countries' climate and poultry house design

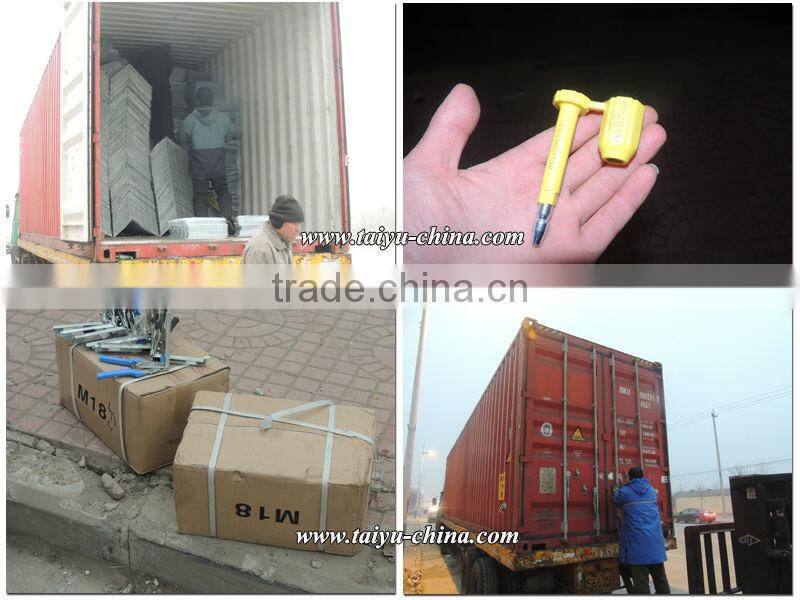

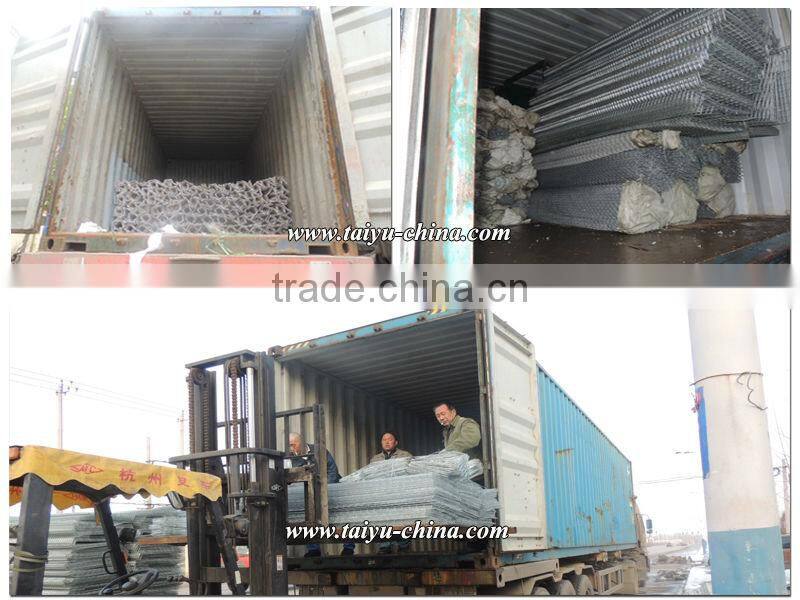

Package

Full container loading:

the cage and frame are nopackage

some fittings are in plastic bags and carton box

Less container loading:

Steel Palletwith plastic cover

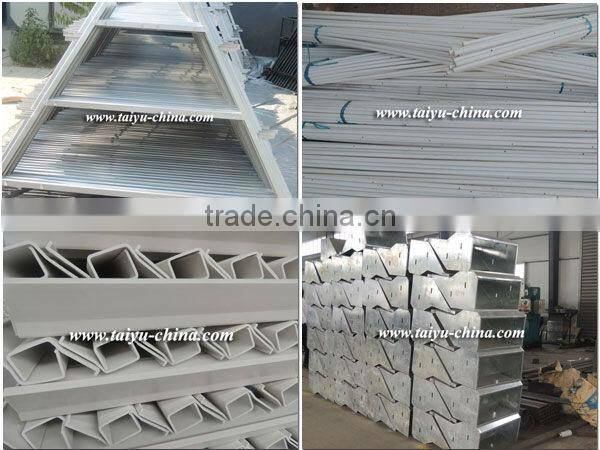

Accessories Of Cage Showing in different quality

wire diameter from 2.0mm to 4.0mm

cold galvanized or hot deep galvanized

1) 80*90*110mm

2) 70*80*120mm

3) 70*80*90mm

The loading capacity of each layer of one Group: 60KG/PC

Above Size is as to different usage, different quality.

Water pressure controlling system

Stainless steel nipple drinkers

Warranty of best quality is 15 years

Taiyu Industrial Group Co., Ltd is Focused Production of Poultry Equipment,

Own Professional research and development group, Haiyue is one Branch of it.

According to climate and poultry house design of Different countries, we own

different quality, The best Technicsis as European standard, Easy installation.

Full Production Line: wire drawing machine, welding machine,bending machine,punching

machine,cutting machines.

Good quality reputation and Proper and efficient service.

Now our company own agents in some countries and welcome your joining.

High quality

raw material

International standard wire rod own contained higher levels of carbon, the strength

ofextension is up to 490MPa and percentage of elongtation is up to 33% to keep the

product

High Hardness and long-range elasticity under long time using

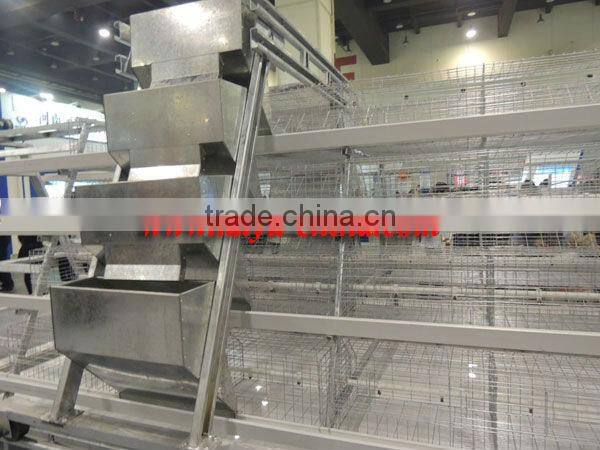

Chicken Trolley Feeding Equipment ( Automatic or Semi Automatic )
