TAIYU Egg Collection Equipment

1

Which kind of system do you prefer? Semi automatic one or full automatic one?

2

How many birds are there in your poultry house? We can recommend economical system for you.

When your birds are below 15000 birds, semi automatic system will be more economical.

3

What is the house length,width and height? Then we can calculate exact quotation for you.

4

Which kind of cage do you prefer? 3 tiers or 4 tiers?

The height of 4 tiers cage is 1.8-2.05 meters, please consider feeding problem when you choose 4 tiers.

Build a chicken farm

( All the cage could be designed to auto system )

  Feeding system & drinking system

  Egg collection system

  Manure removal system

Let our experts advise you to find the best solution for your individual requirements.

Welcome to visit our other type of cages, products for poultry farm, poultry equipment,

other equipments and let me

know the type you prefer.

Type

Tier

Capacity

Size per unit

(L*W*H) (M)

Surface treatment

Lifespan

(years)

L1

3

96

1.9 by 1.8 by 1.6

Electro galvanization

8-12

L2

3

120

2.0 by 1.8 by 1.62

Electro galvanization

8-12

L3

3

120

2.2 by 2.4 by 1.65

Hot deep galvanization

20-30

L4

4

160

2.0 by 2.4 by 1.77

Electro galvanization

8-12

L5

4

160

2.0 by 3.0 by 1.95

Hot deep or electro galvanization

20-30

L6

4

160

2.2 by 3.0 by 1.95

Hot deep or electro galvanization

20-30

Item

Specification

Source type

AC, 3-Phase

Rated power

0.75KW-0.11KW

Rated voltage

220V/380V

Outline size

L by W by H=(2.3-2.7) by (1.2-1.5) by (2.0-2.25)

Hopper size

L by W by H= 0.66m by 0.256m by 0.5m

Working average rate of the hopper

Around 15g/m

Feed capacity of each hopper

35KGS-100KGS/Piece

Working speed

10-15 Meters/Min

Structure weight

550KG

Supporting orbits

Thickness=3.0mm     Diam=50mm

Orbits material

Hot deep galvanized pipe

Transverse auger conveying feeding equipment

Diameter=75mm to 150mm

Connected with the silo

5000KGS TO 15000KGS

Components

Driving system, scrapers, angle pulley, stroke limitation, panel control box and rope

Working

Control 2 rows or 3 rows

Features

1. Manure removed effectively, save labor cost
2. Easy installation, maintenance and operation
3. Save electricity, one day open one time

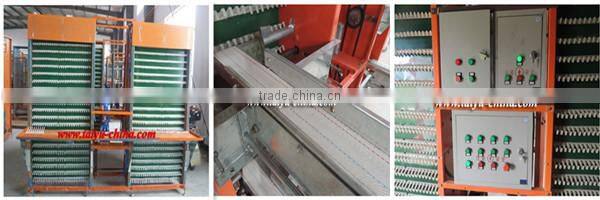

Item

Specification

Size (L*W*H)

(2.2-2.8)M by (1.0-1.5)M by (2.0-2.6)M

Source type

AC, 3-Phase source

Rated voltage

380V

Rated power

0.75-3.0KW

Egg collection ability

>3000 pieces/hour

Egg broken rate

<1%

Belt working speed

1-3M/MIN

Working type

4 tiers working together

Paint thickness

>0.05MM

Machine weight

700 KGS

Egg collection belt

Common one and best quality imported from Italy

Egg collection belt width

100MM
