new design beekeeping bee venom collector

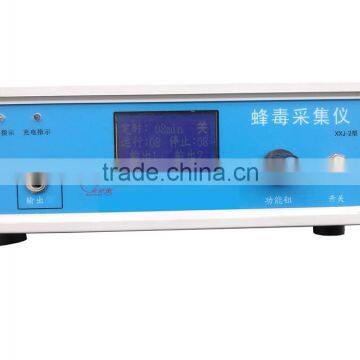

Beekeeping Bee Venom Collector

Large-scale integrated circuit, LCD display technologies and SMD
components are used in the collector with an imported high-storage lithium
ion battery, which makes the collector small, light and a big capacity.

1) The electrifiable gird is intermittently powered by the host which
outputs an animal sensitive impulse voltage of 128Hz.The
electrifying and de-electrifying of the gird is controlled by a
microcomputer. When the gird is electrified, the bees on the grid
will be stimulated to release venom; these bees are set free when
the electrifying stops.

2) You can set the venom collecting time for 1-60 minutes, the
running time and stopping time for 1-60 seconds as needed. The
timer settings can be stored and the next time you turn on the
collector it will use the stored data to work.

The indicator will be green when the collector is working; and it
will be red when the collector stops working.

3) You can adjust each of the two outputs respectively and change
the voltage and frequency of each output as well. The voltage
can be adjusted within a 1-99 grade range as you like, and the
frequency adjustable range is 100-150 Hz. The parameters of the
voltage and frequency can also be reserved and loaded the next
time you use the collector, no extra adjustment required. If no
parameter was stored, the collector will use the data before any
adjustment.

Let Bees Safe, Thanks for Bees' Selfless Devotion
