Plastic Chicken Feeders

    The system is mainly used to convey feed from the silo or hopper into each feed pan to achieve the aim of automatically feeding. May make the survival rate higher.

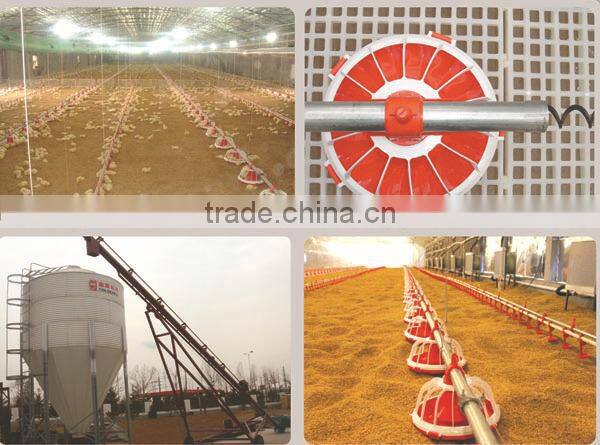

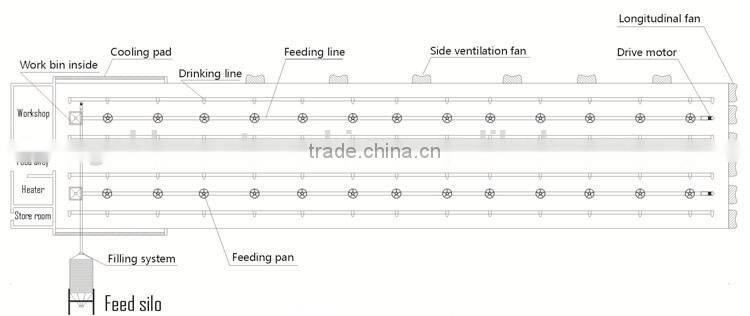

Layout for a standard chicken house

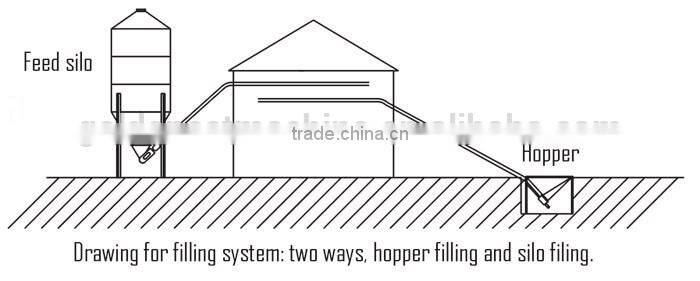

Filling system

    This system delivers feed from the silo or hopper to the feed bin in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

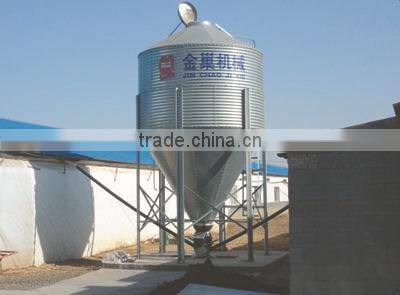

Feed silo

    With decades of designing,manufacturing experience of feed silo, main figures are as following:

        1. Variety of types, 3T-22T, total 11 capacities can satisfy different sizes of houses.

        2. High accuracy, adopting advanced processing method, can prevent galvanized surface damage and         tightness meets customer standard.

        3. 100% raw material, all galvanized sheet is customer-made fits for outdoor using.

Technical parameters of silos

                                       * Different kinds of feedstuff may effect the capacity of silos.

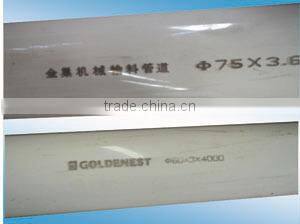

PVC transporting pipe for filling system: unique formula, non-toxic, wear-resisting and durable.

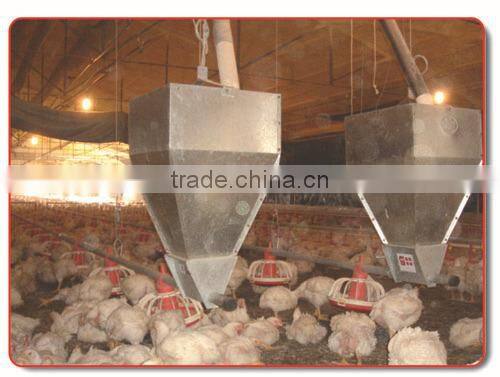

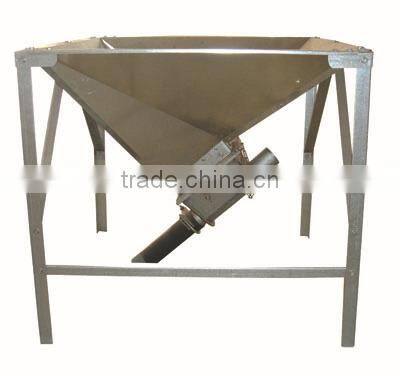

Hopper:

    It is the most quality product among all the items, adopting high galvanized steel sheet, moulding finished, elegant appearance, smooth surface and feedstuff leaking smoothly. The unloader has variety of angles, from 30° to 180°, can be adjusted flexible according to your request and also easy install.  Hopper Capacity: 400 and 800 KGS Etc.

Unloaded feeder: Including dabber, filter mesh, cover for prevention pointed.

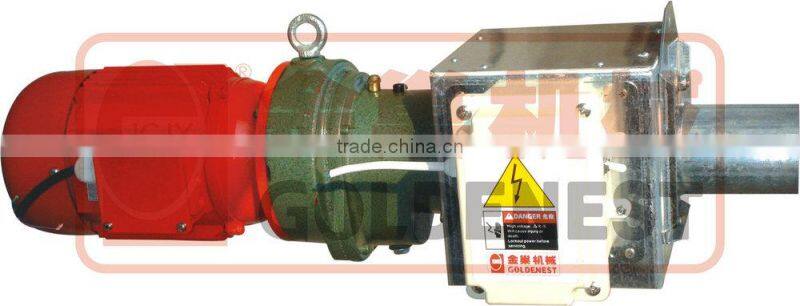

Driving Motor: China high-quality slowdown driving motor, China Taiwan motor and European motor

Power: 0.75 KW; Voltage: 220 V,380 V, others; Frequency: 50HZ, 60HZ; Phase: 1-phase,3-phase

Feeding System

This system deliver and fill full feeds from feed bin  in feeders one by one through delivery pipe automatically. It control the feeder delivery through motor on or off under the order of sensor by control box.

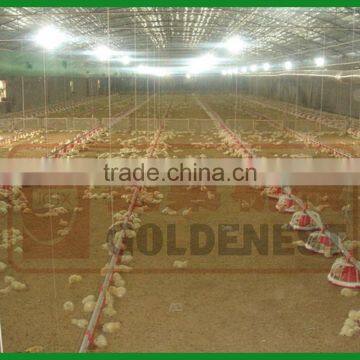

Broiler floor feeding system

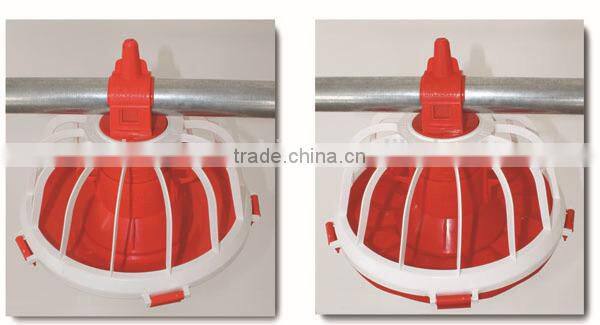

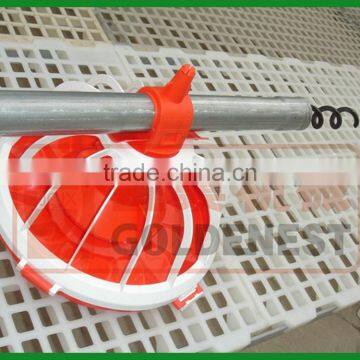

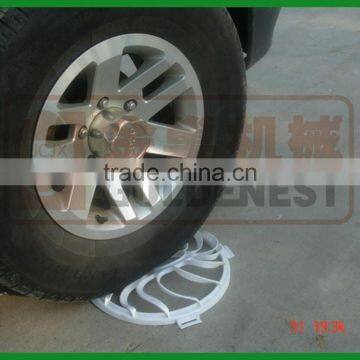

Broiller pan feeder:

Feed pan is the core of feeding system, the diameter is 36 MM.

It is the fourth generation feeding pan possessing two patents:

1. Patented No.: 200920162649.8

2. Patented No.: 200920161606.8

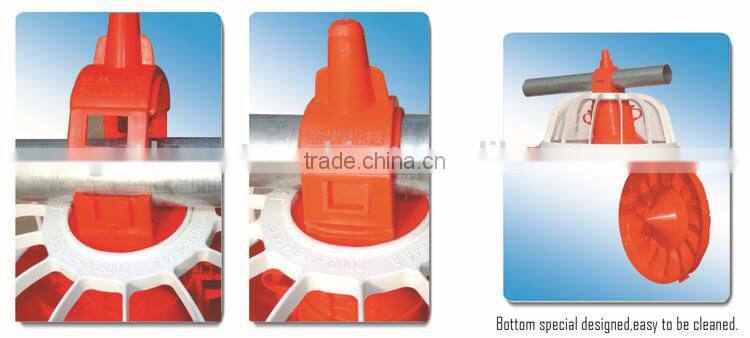

Bottom adopting unique locking mode, makes feeder easy to install, dismantle and clean.

The grounding color of broiler feeder is orange and color of adjustable grid opening is white.

Two kinds of bottom, wave and flat.  Pan distance: 4 pans/3 meters ,3 pans/3 meters. Material:  Purify raw material 100 %  polypropylene, Ability: 30 - 45 broilers per feeder

 Advantages:

A. 3 kinds grids: 5,14,and 15 grids.

B. Variety of feeding level.

C. Height is suitable for all ages of broilers, easy access and starts chicks quickly.

D. There are 2 kinds of bottoms: wave and flat.

E. Top seal is patented,unique design.

F. Fastening part is patented, combining the bottom of feeding pan with grids.

Auger delivery:

    Manufactured by ourself, production line and technology were imported from German.

    We are the professional manufacturer of auger with decades of experience in this field, and can manufactrre more than 50 specifications, 30 kinds of cross section, 5 kinds of materials for auger.

    Delivery speed is stable, Conveying ability: 450 KGS / hour for diameter 36 MM, We can make the auger according to your size.

Work bin inside: Moulding finished, using high quality galvanized steel panel. Capacity: 30kgs and 50kgs Etc.

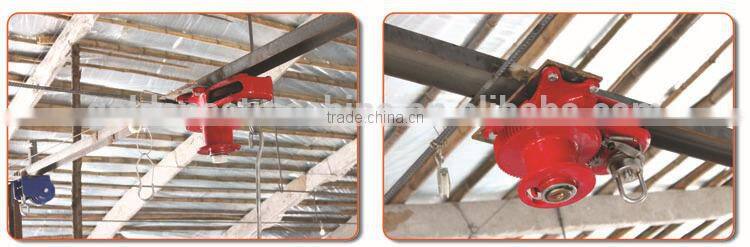

Gn3500 winch with elevator system: Including winch, big and small sheave, ordinate steel wire and fixing spare parts. It can help adjust the height of feeding line to prevent the feedstuff wasting and regulate up and up as chicken growing.

An anti - perching device

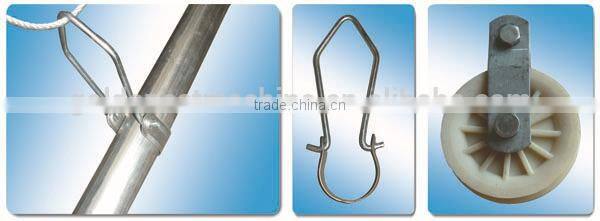

Some spare parts which are precision made such as hot galvanized steel suspension parts, fixing parts. Swing rings, big and small sheave, steel wire locks, U-shaped tube clip, rope clip and insulator supporting.

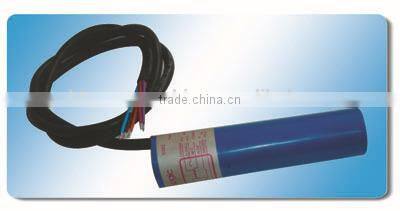

Feed sensor (imported with original packaging from Israel)

Using for feed level controlling, time delaying available, durable.  Imported from Iseral; Time delay range 0 to 2 hours.

Our automatic chicken pan feeding system mainly includ 4 kinds:

Pan feeding system for broilers, Pan feeding system for broiler breeders  ( hens and cocks ) , Metering cylinder feeding system for ancestral broiler breeders.
