SANHE HIgh Efficient Ventilation Swung Drop Hammer Exhaust Fan
- Qingdao
- T/T
You May Like
-
SANHE DJF(a)-1530 55 Inches Swung Drop Hammer Exhaust Fan
-
380V 780mm*780mm*420mm Swung Drop Hammer Exhaust Ventilation Fan
-
SANHE DJF(a)-830 Belt Type Swung Drop Hammer Exhaust Fan
-
SANHE DJF-780 Direct Driven Swung Drop Hammer Exhaust Ventilation Fan
-
380V 1.5KW DJF-1530 Swung Drop Hammer Exhaust Fan
-
SANHE DJF-750 (24'') Wide Application Swung Drop Hammer Exhaust Fan
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Stainless Steel | Place of Origin | Shandong, China | |
| Brand Name | SANHE | Model Number | SANHE DJF-620(20inches) | |
| Voltage | 380V, 380V | Power | 0.25KW, 0.25KW | |
| Air Volume | 5700cbm/h | Speed | 1400rpm | |
| Certification | CE, CCC |
Product Description

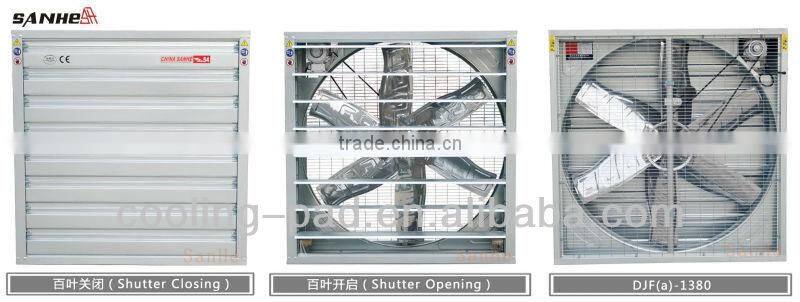

DJF(a) Series Swung Drop Hammer Exhaust Fan
Components of Swung Drop Hammer Exhaust Fan
|
|
|

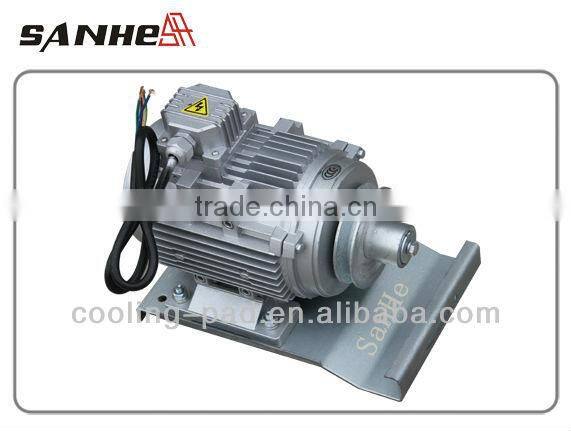

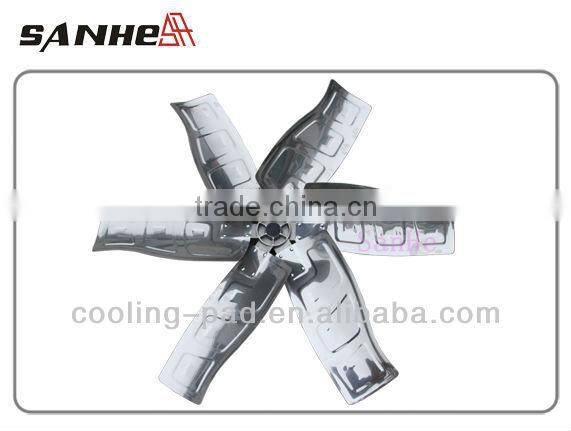

Krupp stainless steel fan blades by punch forming. | High strength aluminum-magnesium alloy. | China famous motor and Siemens motor are available. Motor protection grade: IP55, insulation class: F grade
|
|
|
|
Fan bearing adopts imported double-row bearing with special waterproof.
| Fan bearing adopts imported double-row bearing with sp- ecial waterproof. | High strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly. |
All Models of Swung Drop Hammer Exhaust Fan
| Model Specifications | Diametre Blades(mm) | Blades rotational speed(rpm) | Motor ratitional speed(rpm) | Air flow(m3/h) | Total pressure(pa) | Noise decibels | Input power(W) | Rated voltage(V) | Height/width(mm) | Thickness(mm) |
| DJF(a)-620 | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620 | 400 |
| DJF(a)-750 | 600 | 960 | 960 | 10600 | 75 | ≤70 | 370 | 380 | 750 | 450 |
| DJF(a)-780 | 710 | 960 | 960 | 23000 | 75 | ≤70 | 750 | 380 | 780 | 420 |
| DJF(a)-780-2 | 710 | 650 | 1400 | 18000 | 60 | ≤60 | 370 | 380 | 780 | 400 |
| DJF(a)-830 | 720 | 660 | 1400 | 20000 | 60 | ≤60 | 370 | 380 | 830 | 400 |
| DJF(a)-900 | 750 | 630 | 1400 | 22000 | 65 | ≤65 | 370 | 380 | 900 | 400 |
| DJF(a)-1000 | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 380 | 1000 | 400 |
| DJF(a)-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 | 400 |
| DJF(a)-1220 | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220 | 400 |
| DJF(a)-1380 | 1270 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380 | 400 |
| DJF(a)-1530 | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530 | 400 |
Our exhaust fans are widely used in agriculture and industry ventilate cooling system. Apply to: animal husbandry, poultry house,
livestock breeding, greenhouse, factory workshops, textile, chemical, medicine, tea and vegetable storage, and supermarket etc..
Dimension
Air Flow Curve
Installation Site
|
|
Certificate
| |
ISO9001-2008
| CE |
COMPANY INTRODUCTION
QINzhou Sanhe Machinery Co.,Ltd is a professional manufacturer of ventilation,cooling equipment,humidification
and heating equipment in Asia area.It's s high-tech
enterprise which has a complete set of specialized designing,manufactureing, installation,sales and after-sale
service. Our products are widely used in agriculture and industry ventilation,cooling system and heating system.
Our products are applied for animal husbandry,poultry house, livestock breeding,flowers and plants,greenh-
ouse,factory ,workshop, textile,chemical,medicine,tea,vegetable storage and supermarket.
