Home > Products > Other products > Poultry Gas Heater/ Coal Heating Machine/Oil Burning Heating Machine
Poultry Gas Heater/ Coal Heating Machine/Oil Burning Heating Machine
- Qingdao
 - T/T

You May Like
Product Details
| Condition | New | Type | Air Heater | |
| Power Source | Diesel | Place of Origin | Shandong, China | |
| Brand Name | YUYUN SANHE | Model Number | FSH series | |
| Dimension(L*W*H) | 1760*840*1380mm | Weight | 600 kgs | |
| Voltage | 380v / 220v | Power(W) | 174 kw | |
| Certification | SGS / BV / ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
SANHE Auto-Diesel heating machine Brief Intro.: 1)Heating area: 300/600/1200 square meters. 2)Stainless steel combustion chamber, thermal conversion as high as 90% 3)Stainless steel exchanger is made of 321 (1Cr18Ni9Ti) stainless steel plate, tube. 4)Double air input and output design. 5)Equipped with the world brand Riello burner. Automatic control system operate easily, warming quickly. After setting, burner would automatically start on, fire, supply air and stop for keeping steady temperature. Save large labor and financial resources. 6)This machine combines combustion chamber & heat exchanger together. Exchange heat among the highest temperature parts,this latest indirect-heating technology make smoke and hot air walk their own way,absolutely no pollution. 6)Heater exchanger adopt the special three-pass design. 7)Special insulation design which minimize heat loss. 8)All the technical index meet the national environmental protection I standa  |
Detailed Introduction:
   | Equipped with Italy Origin Riello burner, achieve the auto-diesel supply, autoignition,automatically adjust the ratio between diesel and air; Work smoothly without smoke.All indexes meet the national class I areas environmental protection standards.  |

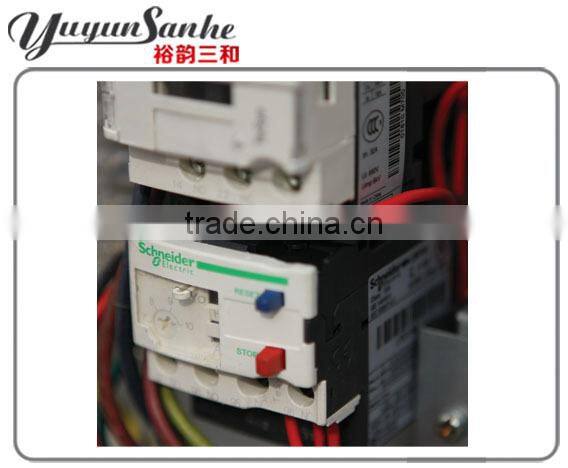

![]()  | Sanhe heater is equiped with Schneider actuator, which lead a much more smoothable operation & longer lifespan.  |
![]()  |

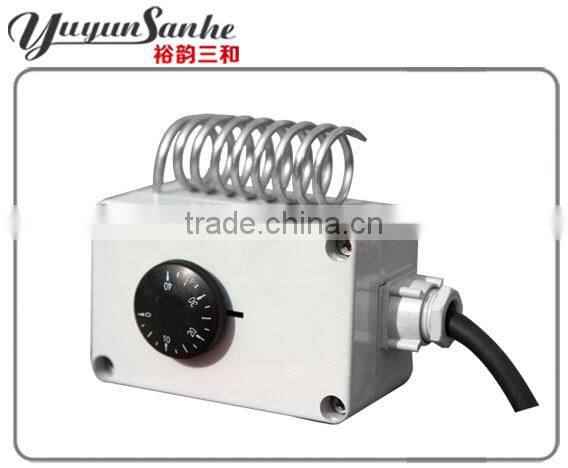

 One-button operation system: Switch the button to the setted temperature. Heater work /close off automatically when temperature is lower/higher than the setted one.  |
   | This machine combines combustion chamber with heat exchanger; Exchange heat among the highest temperature parts, this latest indirect-heating technology make smoke and hot air walk their own way, absolutely no pollution. Unique heating radiator design achieve more than 90% heating efficiency.  |
   | SANHE Diesel heater’s combustion chamber & heat exchanger are all in Stainless steel material, which is heat-resistant and extend its lifespan.  |

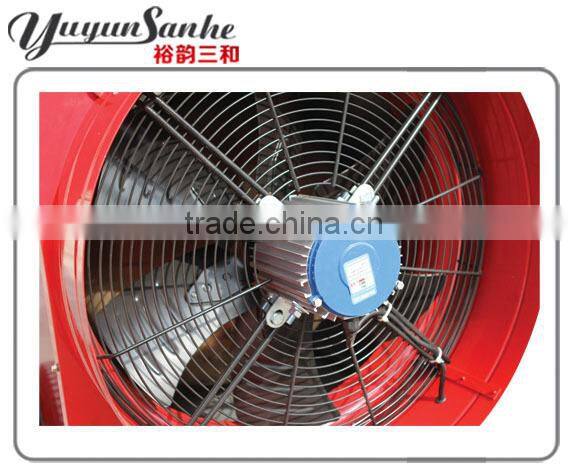

![]()  | SANHE Diesel heater use presure exhaust fan to draw the fresh air into the chamber,effectively improve the working effciency.  |
   | SANHE Diesel has hoisting device which is convenient for loading/unloading; and also can work in hoisting condition. Material is very strong.  |
   | SANHE Diesel has movable pulley in its bottom and human operating handle-bar.  |
![]()  | Sanhe Heater frame material is made of Hot-Galvanized steel under plastic spraying procedure. This double protection protect the machine from being rusted in a long period.  |
Technical Parameter:
Technical parameter  | 50,000 kcal  | 120,000kcal  | 150,000kcal  |
Thermal output power (kcal/h)  | 50000 kcal/h  | 120000 kcal/h  | 150000 kcal/h  |
Power( KW)  | 60Kw  | 140Kw  | 174Kw  |
Heat effciency ≥%  | ≥90%  | ≥90%  | ≥90%  |
Fuel  | Diesel  | Diesel  | Diesel  |
Fuel consumption (kg/h)  | 2.3-5kg/h  | 4.5-10kg/h  | 7-1kg/h  |
Control method  | Auto  | Auto  | Auto  |
Fan air volume (m³/h)  | 11000m³/h  | 11000 m³/h  | 14000 m³/h  |
Temperature rising range (℃)  | 80-120 ℃  | 80-120 ℃  | 80-120 ℃  |
Power supply (V/Hz)  | 380V/50Hz  | 380V/50Hz  | 380V/50Hz  |
Power (kw)  | 0.7Kw  | 0.92 Kw  | 0.95Kw  |
Hot air outlet Dia. (mm)  | 520mm  | 520mm  | 520mm  |
Diemension (L×W×H)mm  | 1760×840×1380  | 1760×840×1380  | 1750×840×1380  |
Frame material  | Galvanized +spray paint  | Galvanized +spray paint  | Galvanized +spray paint  |
Guarantee period  | One year warranty, lifelong service  | ||

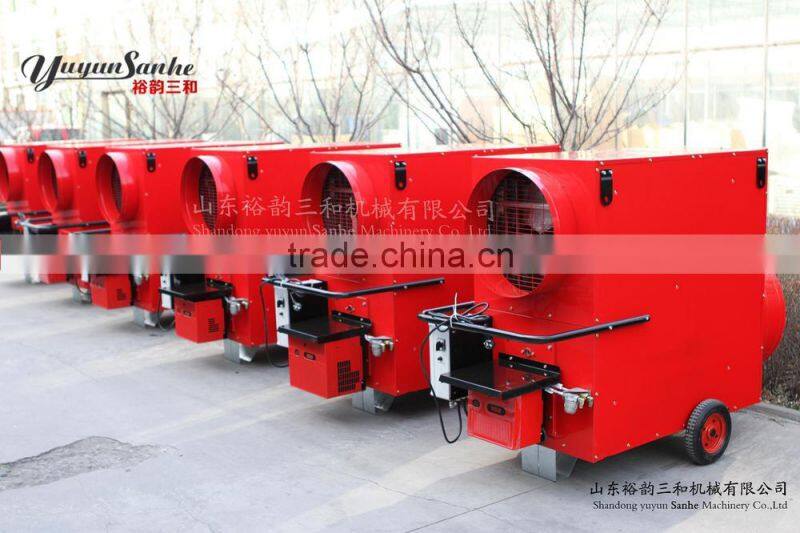

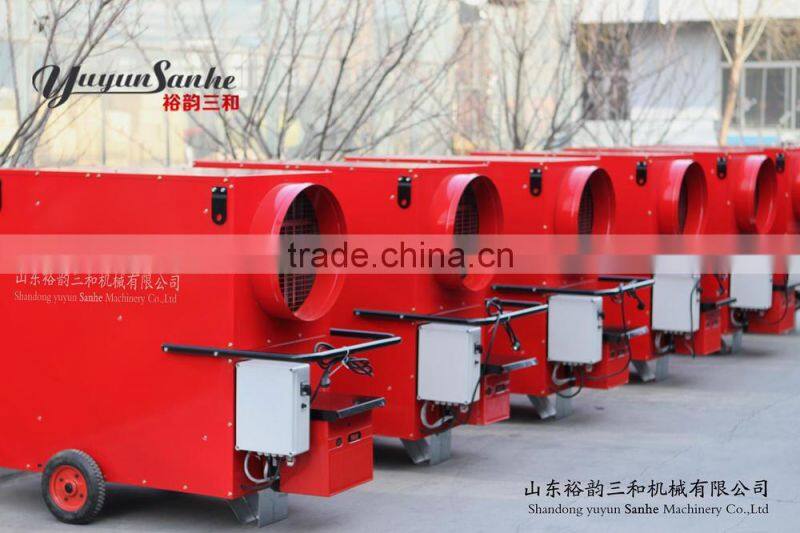

Products show:
