Poultry Shed Heaters Automatic Coal-burning Heaters

FOB Price

US$ 1,790 - 4,780 / Set

1 Set(Min. Order)

Port Qingdao port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Air Heater
Power Source	Other, Coal	Place of Origin	Shandong, China
Brand Name	sanhe	Model Number	FSH
Dimension(LWH)	200011002200mm	Weight	1500kgs
Voltage	380/22v	Power(W)	5kw
Certification	CE	Warranty	1 YEAR
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

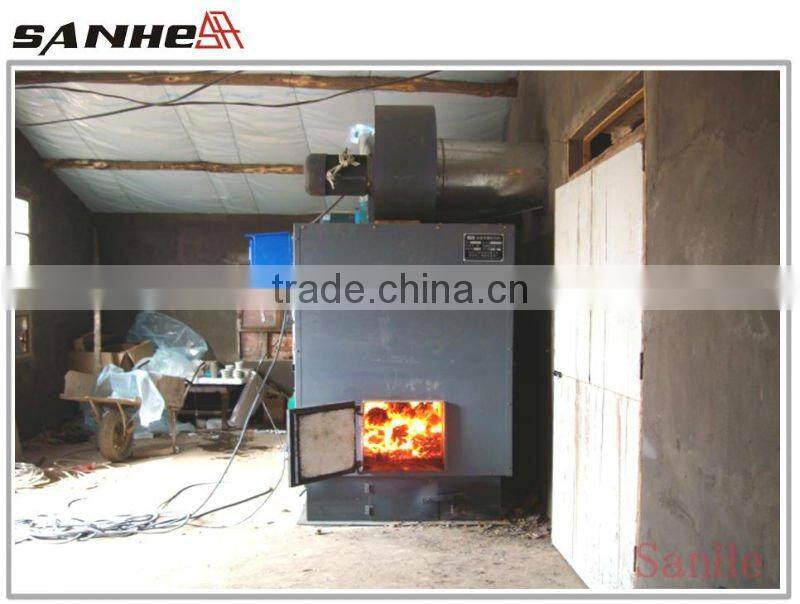

FSH Series Automatic Coal-burning Heaters

1) Using full-auto control, consistent temperature, the temperature of tot air can be set freely 40-120 degree.

2) Adopt artificial intelligence instrument, clear and eye-catching, it can keep the greenhouse in 15-20 degree.

3) Extensive using fuel, energy saving and cost saving, reduce the heating cost as high as 30%

4) Using SANHE unique furnace guarding heat system, improve heat efficiency and service life (6-10 years).

5) This machine combines combustion chamber with heat exchanger together. Exchange heat among the highest temperature parts, this latest indirect-heating technology make smoke and hot air walk their own way, absolutely no pollution.

6) Thermal conversion reaches as high as 80%-95%, fast warming, small volume, easy installation, reliable use, and low cost. (The cost is only half, compared with the same capacity boiler.)

Technical Parameter:

Technical Parameters	150000Kcal	200000Kcal	250000Kcal	300000Kcal
Heat output power kcal/h	150000 kcal/h	200000 kcal/h	250000 kcal/h	300000 kcal/h
Heat efficiency ≥%	≥90%	≥90%	≥90%	≥90%
Fuel	Coal	Coal	Coal	Coal
Consumption kg/h	10-18 kg/h	15-25 kg/h	18-25 kg/h	30 kg/h
Way of adding coal	Manual	Manual	Manual	Manual
Way of control	Auto	Auto	Auto	Auto
Air flow m³/h	5000 m³/h	5500 m³/h	7000 m³/h	7000 m³/h
Temperature rise °C	80-120 °C	80-120 °C	80-120 °C	80-120 °C
Power Source V/Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric power kw	3Kw	5Kw	3Kw	5.5Kw
Diameter of air outlet mm	400mm	400mm	400mm	400mm
Weight kg	1000Kg	1500Kg	1650Kg	1700Kg
Dimension length×width×height mm	1700×900×2000	2000×1100×2200	2100×1100×2300	2100×1100×2300
Material of frame	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint
Quality guarantee period	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service

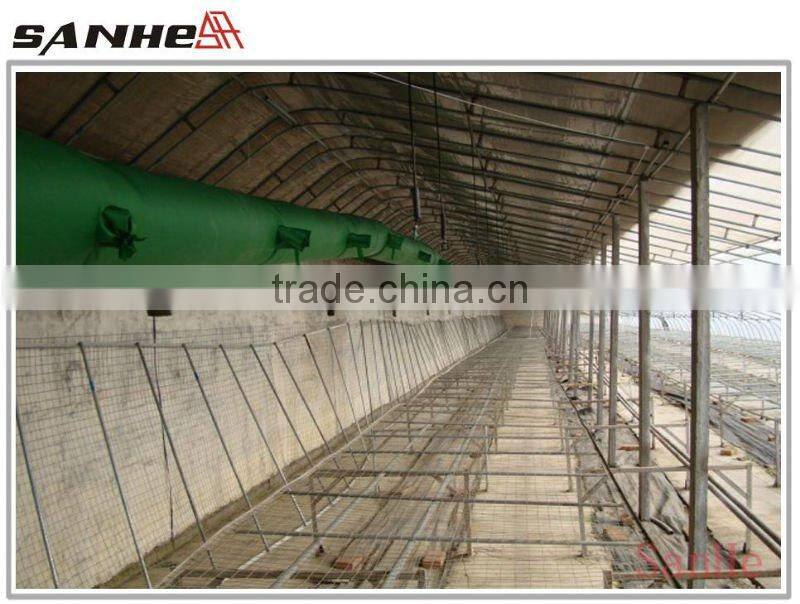

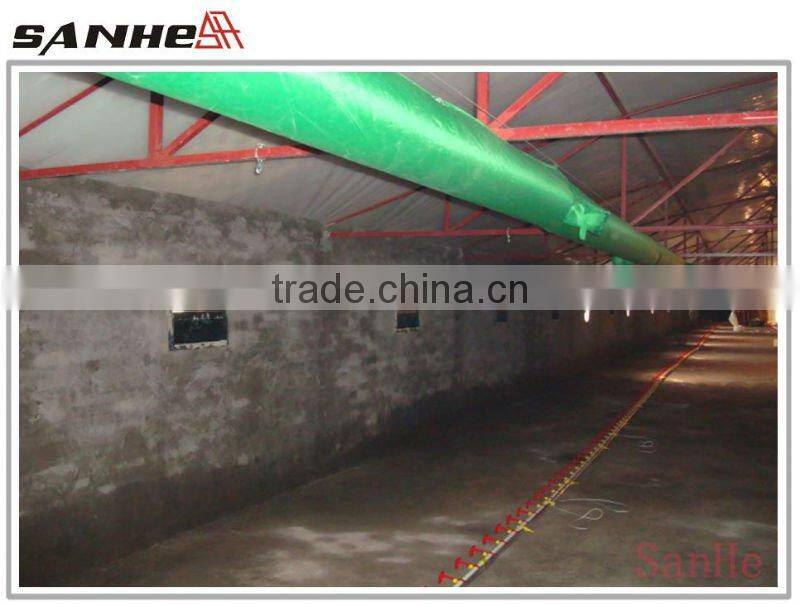

Installation Site:
