Home > Products > Heating Machines > YUYUN SANHE Oil-Burning Heating Machine

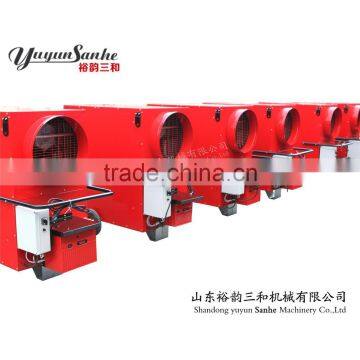

YUYUN SANHE Oil-Burning Heating Machine
- 100 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Air Heater | |
| Power Source | Diesel | Place of Origin | Shandong, China | |
| Brand Name | YUYUNSANHE | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Overseas third-party support available |
Product Description
FSH Series Oil -burning Heating Machine
Brief Intro.:
1)Heating area: 300/600/1200 square meters.
2)Stainless steel combustion chamber, thermal conversion as high as 90%
3)Stainless steel exchanger is made of 321 (1Cr18Ni9Ti) stainless steel plate, tube.
4)Double air input and output design.
5)Equipped with the world brand Riello burner. Automatic control system operate easily, warming quickly. After setting, burner would automatically start on, fire, supply air and stop for keeping steady temperature. Save large labor and financial resources.
6)This machine combines combustion chamber & heat exchanger together. Exchange heat among the highest temperature parts,this latest indirect-heating technology make smoke and hot air walk their own way,absolutely no pollution.
6)Heater exchanger adopt the special three-pass design.
7)Special insulation design which minimize heat loss.
8)All the technical index meet the national environmental protection I standard
Detailed Introduction:
 | Equipped with Italy Origin Riello burner, achieve the auto-diesel supply, autoignition,automatically adjust the ratio between diesel and air; Work smoothly without smoke.All indexes meet the national class I areas environmental protection standards. |
| | This machine combines combustion chamber with heat exchanger; Exchange heat among the highest temperature parts, this latest indirect-heating technology make smoke and hot air walk their own way, absolutely no pollution. Unique heating radiator design achieve more than 90% heating efficiency. |
| | SANHE Diesel heater’s combustion chamber & heat exchanger are all in Stainless steel material, which is heat-resistant and extend its lifespan. |
| | SANHE Diesel heater use presure exhaust fan to draw the fresh air into the chamber,effectively improve the working effciency. |
| | SANHE Diesel has hoisting device which is convenient for loading/unloading; and also can work in hoisting condition. Material is very strong. |
| | SANHE Diesel has movable pulley in its bottom and human operating handle-bar |
Technical Parameter:
Technical parameter | 50,000 kcal | 120,000kcal | 150,000kcal |
Thermal output power (kcal/h) | 50000 kcal/h | 120000 kcal/h | 150000 kcal/h |
Power( KW) | 60Kw | 140Kw | 174Kw |
Heat effciency ≥% | ≥90% | ≥90% | ≥90% |
Fuel | Diesel | Diesel | Diesel |
Fuel consumption (kg/h) | 2.3-5kg/h | 4.5-10kg/h | 7-1kg/h |
Control method | Auto | Auto | Auto |
Fan air volume (m³/h) | 11000m³/h | 11000 m³/h | 14000 m³/h |
Temperature rising range (℃) | 80-120 ℃ | 80-120 ℃ | 80-120 ℃ |
Power supply (V/Hz) | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Power (kw) | 0.7Kw | 0.92 Kw | 0.95Kw |
Hot air outlet Dia. (mm) | 520mm | 520mm | 520mm |
Diemension (L×W×H)mm | 1760×840×1380 | 1760×840×1380 | 1750×840×1380 |
Frame material | Galvanized +spray paint | Galvanized +spray paint | Galvanized +spray paint |
Guarantee period | One year warranty, lifelong service | ||
Contact Us
- Shandong Yuyun Sanhe Machinery Co., Ltd.
- Contact nameJunbin Li Chat Now
- Phone86-536-3522987
- AddressNO. 3 Times Road, Qingzhou, Shandong, China, Weifang, Shandong
