Galvanized Poultry Fan For Air Exhaust Ventilation

FOB Price

US$ 150 - 260 / Set

3 Sets(Min. Order)

Port Qingdao Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Wall Fan
Blade Material	Stainless Steel	Place of Origin	Shandong, China
Brand Name	sanhe	Model Number	DJF-1380
Voltage	380V	Power	1.1KW
Air Volume	44000M^3/H	Speed	437RPM
Certification	CCC, CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Galvanized Poultry Fan For Air Exhaust Ventilation

1. Technical data:

Mode Specification	Drive	Blade diameter (mm)	Blade rotational speed (r/m)	Motor rotational speed (r/m)	Air flow (M^3)	Total pressure (Pa)	Noise decibels	Import power (W)	Rated voltage (V)	Height (mm)	Width (mm)	Thickness (mm)
DJF-750	Direct	600 (24in)	960	960	10600	75	≤70	370	380	750	750	510
DJF-1000	Belt	910(36in)	438	1400	21000	57	≤65	550	380	1000	1000	450
DJF-1380	Belt	1270(50in)	437	1400	44000	57	≤65	1100	380	1380	1380	450

2. Specification:

Blade	430 stainless steel, 1.2mm thickness
Frame	Galvanized sheet
Shutter	Galvanized sheet
Belt	Japanese Mitsubishi brand
Motor	Both China famouse brand and Siemens motor are available
Voltage	Can be changed to different voltage like 220v, Single phase
Motor protection class	IP55
Motor insulation grade	F grade
Fan belt pulley	High strength aluminum-magenisum alloy
Fan side	With plastic handle
Motor plate	Hexagon fixed nuts. Can suitable different size of motor.
Linking parts	Alumunim alloy
Spring	304 stainless steel
Fastener parts	Stainless steel
Bearing	Imported double-row bearing, waterproof
Blade support	Hot-dip galvanized
Loading quantity/40'hq	57sets assembled
	270 sets disassembled
Delivery time	As usual 5~7 days
Payment term	T/T, L/C

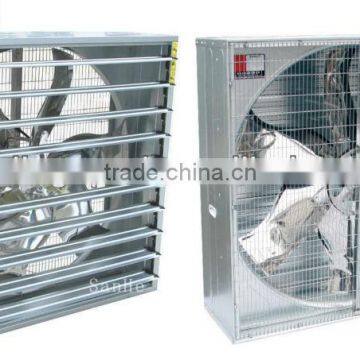

3. Product pictures:

4. Poultry fan working principle

The poultry fan discharged the air to drop the indoor air pressure indoor. Then the indoor air is thinning and forming a negative pressure zone. The outdoor air will be into the indoor due to the air pressure difference. In the usage of industrial workshop, the poultry fan is installed at one side. And air inlet vent is at other side of the building. The air from inlet vent to poultry fan forms Convection dryer. During this process, the windows close to poultry fans keep closed forcing the air into the workshop via the air inlet in the other side. Then the air in to the room from air inlet vent orderly. The air flow cross the workshop and discharged by the poultry fan. Completely and efficiently change the air. It can change the indoor air within several seconds.

5. Poultry fan application:

1.) Labor-intensive enterprises: Clothing factory, all kinds of assembly workshop, Internet bar, animal husbandry

2.) Special suitable for the place which needs both cooling and humidity. Like Poultry husbandry, chicken, duck, pig farming animal husbandry.

3.) High temperature and peculiar smell cow house

4.) Garden greenhouse

5.) Warehousing logistics field
