Galvanized screw steel plate helix ground anchor
USD $1 - $10
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Qingdao port
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Adm | |
| Model Number | ADMGA 0454 | Type | Pole Anchor | |
| Material | Iron | Diameter | 1CM | |
| Length | 66'' | Capacity | 200KGS | |
| Standard | ISO |
Product Description

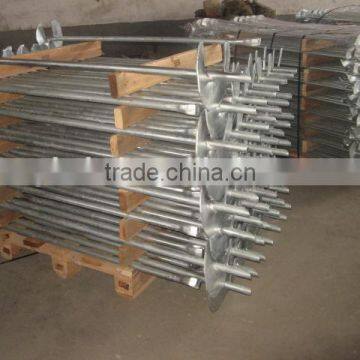

Galvanized screw steel plate helix ground anchor
Description of ground anchor
Size:8 8" helix 66"long *1''diameter
Material:steel
Surface treatment:hot dip galvanized
Weight:8.6kg

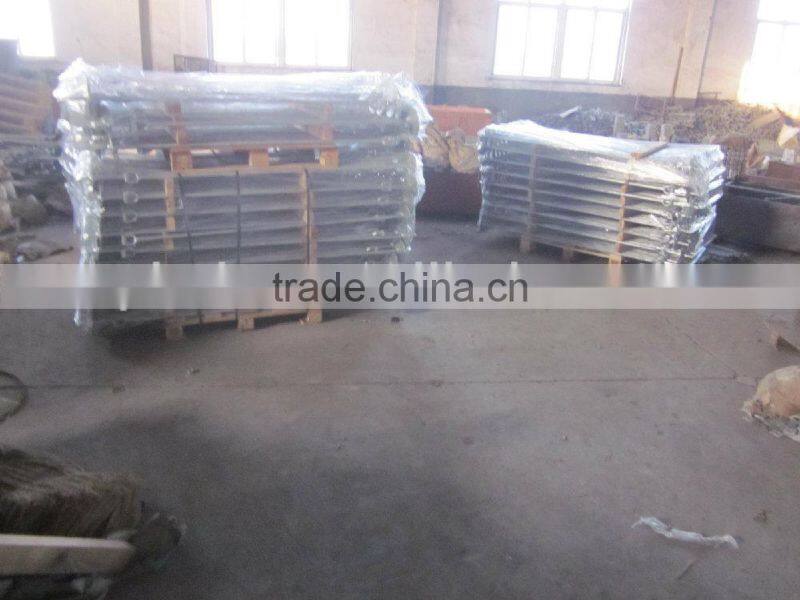

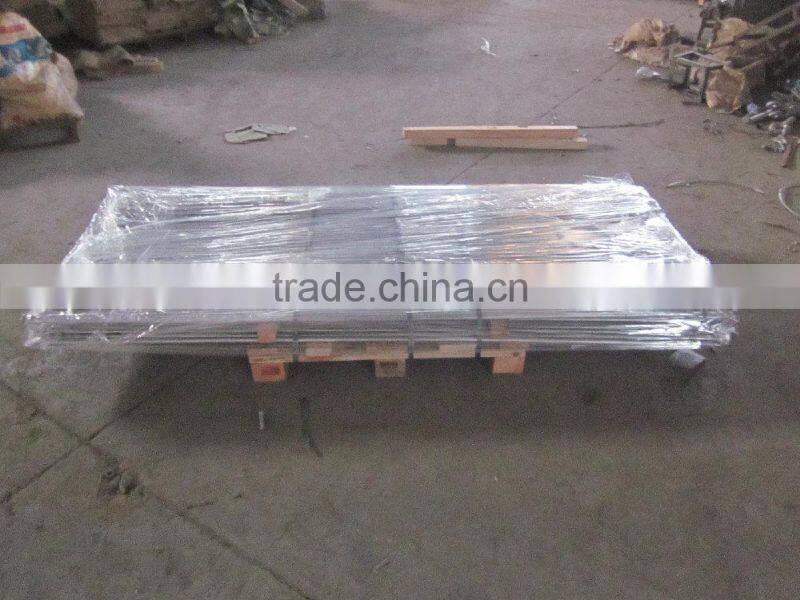

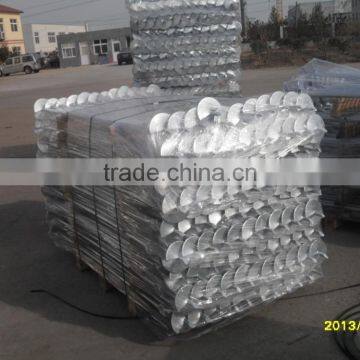

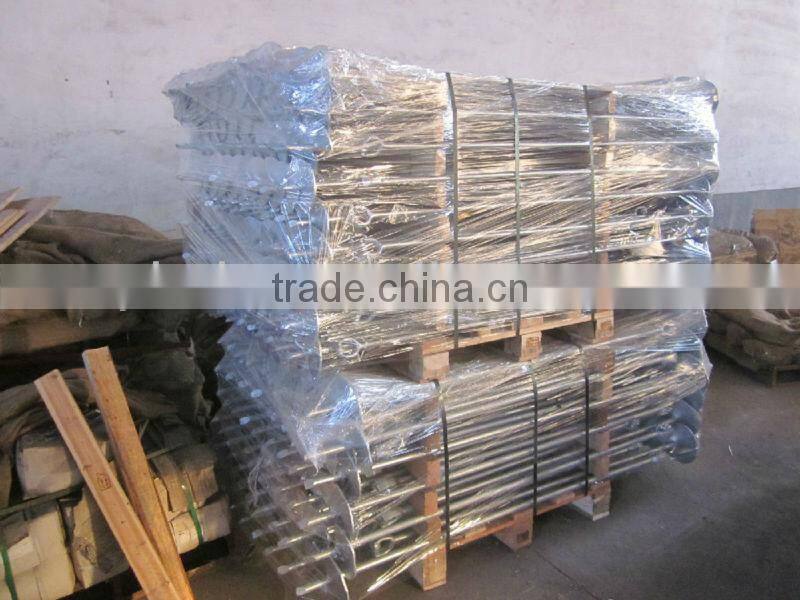

Package way: pallet
Features:
- An integral forged eye anchor with a helix welded to the shaft and for manual or machine.
- Manual installations accomplished by inserting a bar through the eye and screwing the anchor down in line with the guy.
- Installation with portable or vehicle mounted installing equipment is accomplished with adapters.
-
Name Item No Specification Length Head Weight(kg) Single ground anchor 4150 5/8 X 5 1524mm 62.23mm 2.8 4151 5/8 X 6 1828mm 3.3 4152 5/8 X 7 2134mm 3.8 4153 5/8 X 8 2438mm 4.3 4154 3/4 X 7 2134mm 73.03mm 5.4 4155 3/4 X 8 2438mm 6.1 4156 3/4 X 10 3048mm 8 Double ground anchor 4165 5/8 X 6 1828mm 64mm 3.4 4166 5/8 X 7 2134mm 3.9 4167 5/8 X 8 2438mm 4.4 4168 3/4 X6 1828mm 69mm 4.7 4169 3/4 X 7 2134mm 5.4 4170 3/4 X 8 2438mm 6.1 4171 3/4 X 9 2743mm 6.8 4172 3/4 X 10 3048mm 8 4173 1 X 8 2438mm 83mm 11 4174 1 X 10 3048mm 13 Three ground anchor 4180 3/4 X 8 2438mm 84mm 6.1 4181 3/4 X 9 2743mm 6.9 4182 1 X 8 2438mm 104mm 10.4 4183 1 X 10 3048mm 12.8 4184 1-1/4 X 10 3048mm 110mm 21.5

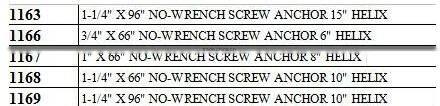

Helix Size (Inches) | Rod Diameter | Rod Length (Inches) | Weight Ea (lbs) |
4 | 3/4 | 54 | 8.1 |
6 | 3/4 | 66 | 10.9 |
8 | 1 | 66 | 19.1 |
10 | 1-1/4 | 66 | 30.3 |
10 | 1-1/4 | 96 | 41.1 |
15 | 1-1/4 | 96 | 52.0 |

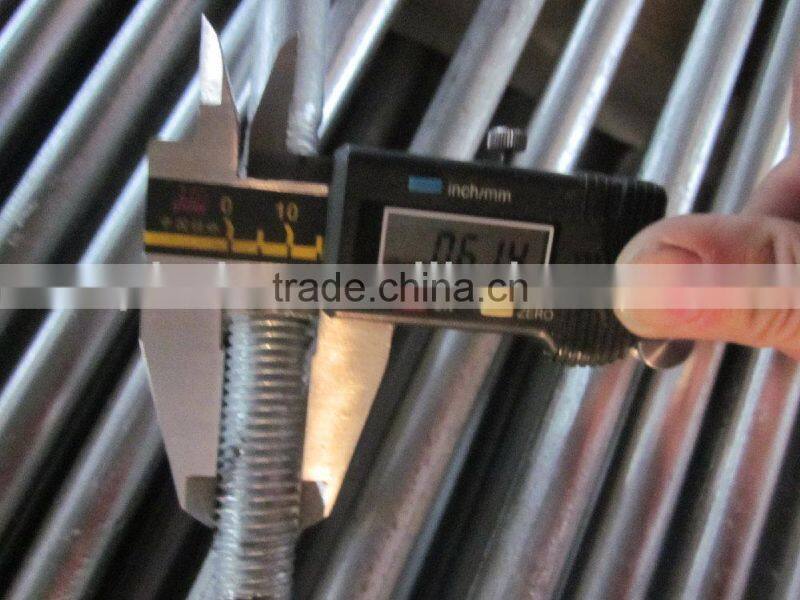

How we test the quality

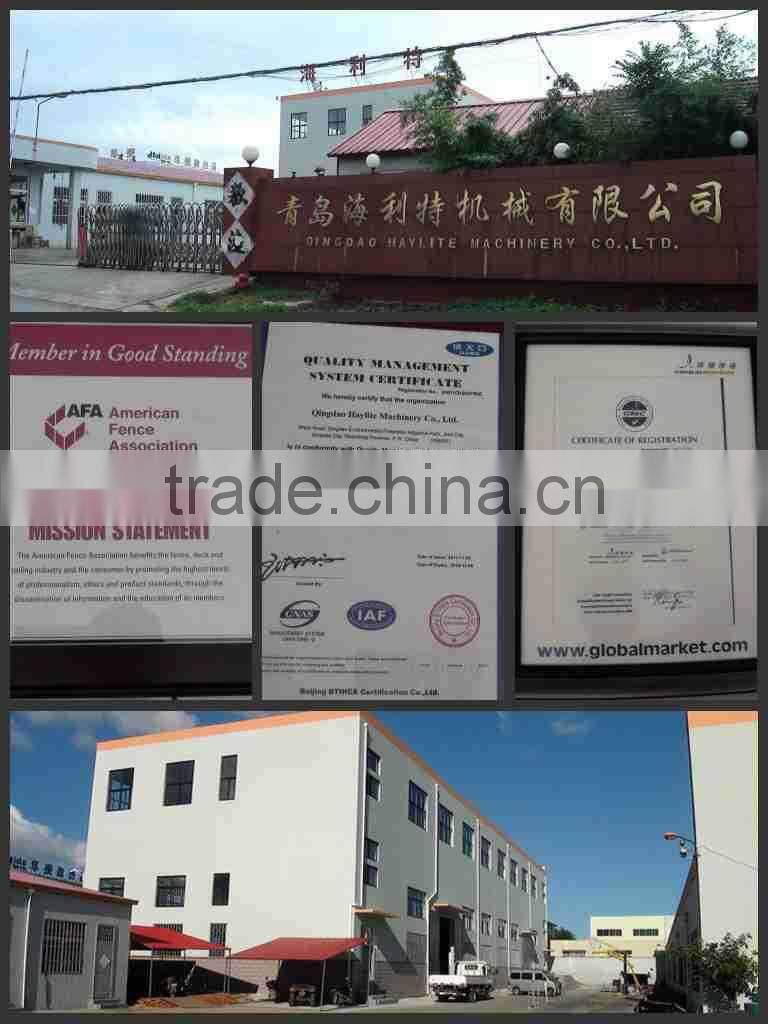

Company Information
