JL-1000/900/1100/1380 odor and fume control exhaust fan
- Qing dao
- T/T
You May Like
Product Details
Electric Current Type | AC | Blade Material | Stainless Steel | |
Mounting | Shop Window | Place of Origin | Shandong, China | |
Brand Name | jinlong | Model Number | JLF | |
Power | 1100W | Voltage | 380V | |
Air Volume | 44000M3/H | Speed | 437rpm | |
Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

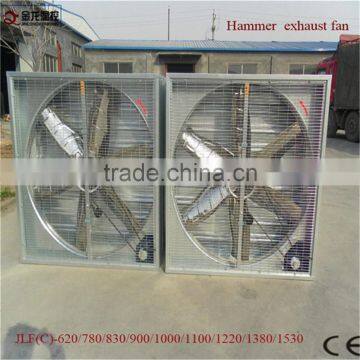

JL-1000/900/1100/1380 odor and fume control exhaust fan
Technical datas of JL-1000/900/1100/1380 odor and fume control exhaust fan
Model specifications | Blade mm | Blade rotational speed rpm | Motor rotational speed rpm | Air flow m3/h | Total pressure | Noise decibels | Import power | Rated voltage | High mm | Width mm | Thick mm |
JLF-1000(43”) | 900 | 438 | 1400 | 35000 | 57 | ≤65 | 550 | 380 | 1000 | 1000 | 400 |
JLF-1100(40”) | 1000 | 438 | 1400 | 38000 | 57 | ≤65 | 750 | 380 | 1100 | 1100 | 400 |
JLF-1380(54”) | 1250 | 437 | 1400 | 44000 | 57 | ≤65 | 1100 | 380 | 1380 | 1380 | 400 |
Features of JL-1000/900/1100/1380 odor and fume control exhaust fan
patented designed centrifugal system which can open and close automaticlly ,ensuring the shutter opens 90 degree under all the condition. And uncontrollable air can prevent from going into the birdhouse when the shutter works.
Mirror designed and injection moulding Stainless steel balde,with big air volume,never distortion and broken
experiment of homeostasis make the blade work smoothly,nearly no noise and steadily output of air
centrifugal shutter system made of high quality engineering nylon ,high strength and long service life
high efficient and energy-saving motor with ccc certificate ,protection class:IP55,insulation class:F grade
Application
Packaging
The cargo was strong export package & suitable for deliver by air, express or sea
Shipping
1. Express: Ship our production by UPS/ DHL/ FEDEX/ TXT express which is door to door, you just receive sample at office (3~5 days)
2. Air: we can send it by air if your need is urgent
3. Sea: if goods are large quantity and you are not in hurry, we can ship it by sea to save freigth cost
Qingzhou Jinlong Temperature-Controlled Equipments Co., Ltd. is a professional manufacturer of Temperature Control Equipments in Shandong Province. We are a high technology enterprise integrating design, production, sale and after-sales service.
Now our business have expand to Southeast Asia, West Europe, Canada and Australia, and has won great reputation.
Warmly welcome customers of all walks to instruct, consult and cooperate with our company.
We provide customers free ventilator training in our factory and spare parts for ten years.
.
our productions are certificated by CE , ISO
