Wind Driven Attic Fan

Electric Current Type	Other, AC, No power		Blade Material	Other, Stainless Steel, Stainless Steel
Mounting	Other, Roof Fan, roof fan		Place of Origin	Shandong, China
Brand Name	JIENUO		Model Number	JFD
Air Volume	2250-3600M3/H

Specifications

1.use no electric energy
2.can also be used on pitched roof
3.easy to install
4.the wind turbine exhaust fan

JFW-500/600 roof ventilating fan without power

Advantages:

1. Environmentally friendlly:Aonuodi rrof ventilating fan is efficient ,explosion-proof,uses no electric energy,and causes no noise and spark.
2. Dust-proof:the wind turbine exhaust fan continuously operates 24 hours a day,This lowers the possibility of dust adhesion and makes the fan easy to clean.
3. Light weight:The weight of roof ventilating fan along with the base is approximately 15 kg,so the users need not take into consideration when desiging steel structures.
4. Daylight:The interspace between blades allows natural light to provide effective internal lighting during the day,thus reducing the electricity cost by 5-10%.
5. Long lasting:Aonuodi roof ventilating fan has a life time of over 15 years.Features
6. Curved blades are the result of scientific computing technology.They are not only rainproof but also contribute to high efficiency ventilation.The blade will perform self ratation operations quietly in circumstances where teh breeze is not less than 0.2m/s and teh indoor and outdoor termperature difference exceeds 0.5 .
7. In addition to flat roof,Aonuodi roof ventilating fan can also be used on pitched roof ( )
8. The special central shaft design effectively prevents turbine blades rotating at high speeds from deformation,thus greatly extending the service life of the roof ventilating fan without power.
9. The U.S.PEER.UBC,and Japan NSK high-precision bearing system(fully closed)with guaranteed quality.Solid spherical structure and permanently lubricated upper and lower ball bearings combine the need for maintenance and parts replacement.

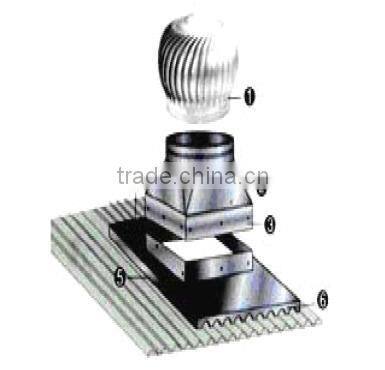

10. Aonuodi roof ventilating fan without power can be easilly installed on the concrete roof and contour plate of various industrial plants without any bracket.
11. As the roof ventilating fan requires no electricity cost and low installation cost,it can greatly save on users total cost.
12. we have CE certification.





parameters table





Model	Throat opening caliber(mm)	Outside diameter of turbine(mm)	Turbine height(mm)	Inlet air speed(m/s)	Air volume(m3/h)	Weight (kg)	Material
JFW-500	500	630	350	3.4	2520	8.5	Stainless steel
JFW-600	600	730	420	3.4	3600	11	Stainless steel







  1. roof ventilating fan without power

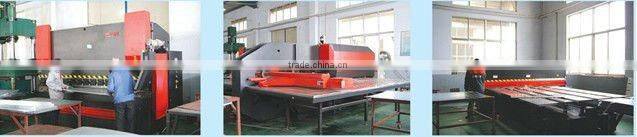

2.Manufacturing process

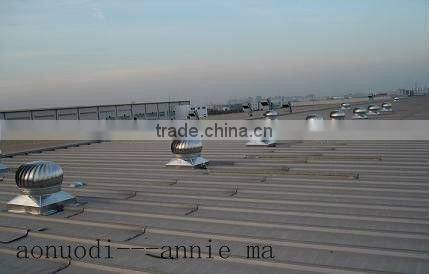

3.Installation site

3.about us

  Jienuo Temperature Euipment Company is an exhaust fan and hot air generator manufacturer that was founded in 2001.Raliable quality,economical price,long life and easy installation have resulted inJienuo exhaust fan and hot air generator becoming popular with customers from the United States,Thailand,Vietnam,Korea,Japan,India,Palkistan,Iran,Bangladesh,Kuwait,United Arab Emirates,to name a few.
