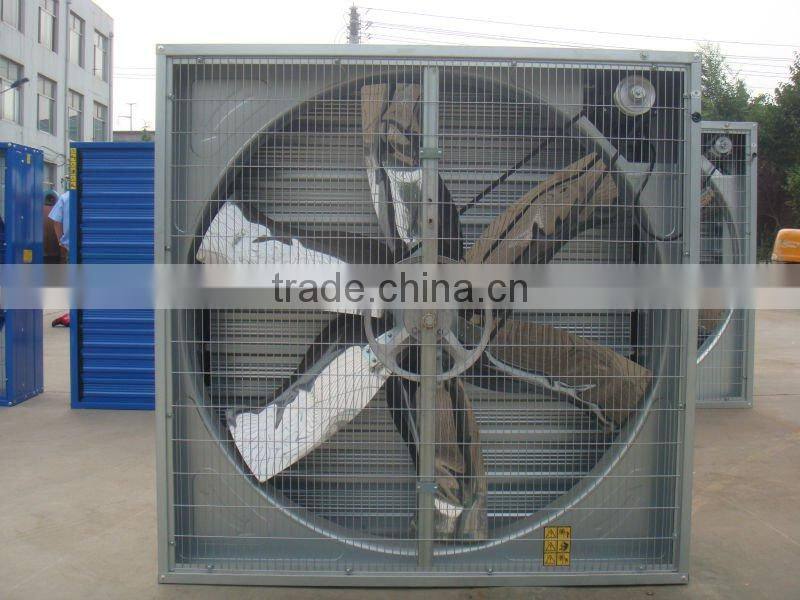

Aonuodi Exhaust Fan JFD-1250E for Greenhouse/Industrial/Poultry With CE Certificate

Place of Origin	Shandong, China		Brand Name	Aonuodi
Model Number	JFD-1250E

Specifications

1.Poultry exhaust fan with CE
2.Import belt
3.Air Volume 46000m3 / h
4.Shutter adopt special push-pull, open- close device





Provide 7*24 hours on-line service.



Technology parameters

Fan specifications	Blade Diameter  mm	Fan speed  r / m	Input power kw	Current A	Air Volume m3 / h	Dimensions  mm	Weight  kg
JFD-900E	900	560	0.55	1.5	28000	1000*1000*450	46
JFD-1000E	1000	560	0.75	2	36000	1100*1100*450	61
JFD-1100E	1100	505	0.75	2	40000	1220*1220*450	68
JFD-1250E	1250	476	1.1	2.8	46000	1380*1380*450	81

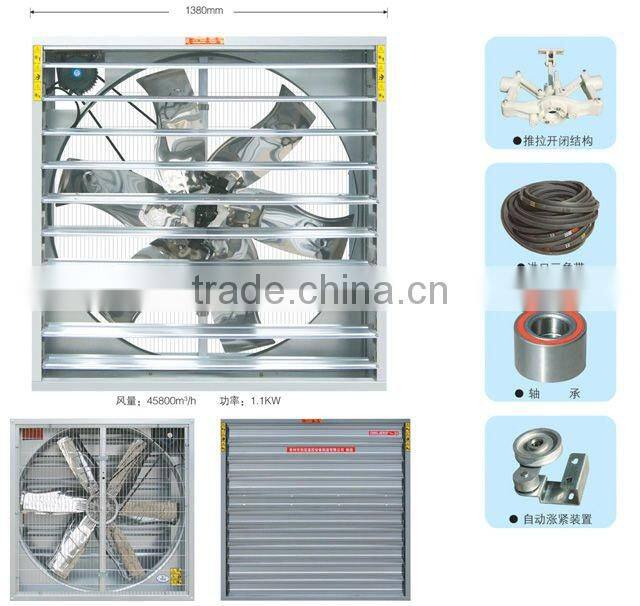

 Feature:

1. The outline border adopt advanced automatic process, more accuracy, material adopt zinc coat and zinc plate
2. The aluminum metal alloy of the high strength hub, adopt aviation aluminum magnesium metal alloy, light weight, high strength, good tensile
3. Strap adjust automatically, no need manual adjustment during lifetime
4.Shutter adopt special push-pull, open- close device, ensure shutter totally open and close, windproof, rainproof and dustproof

5. Newly punch forming fan blade, reasonable angel and reach the max.air flow, mini. Noise
6. Double bracing (E style) belt transporter, Europe industry motor standard
7.Safety net easily tear down
8. strictly quality test process: noise test, vibration test, concentric performance test, fan blade turning speed test, input air test and vehicle efficiency test
9.Special motor hole wind shield, avoid wind losing to reach the best wind suck effect









Sale network: Jienuo product are popular in Beijing, Shanghai, Guangdong, Yunnan, Liaoning,

Hunan, Hebe, Jiangsu, Zhejiang, and so on, more than twenty provinces and cities, exported to

Southeast Asia, Japan, U.S UAE. EU and South Africa etc. As excellent quality and service, we

won the good reputation and trust of customers.
