Razor Wire Machine

Hebei Jinshi Supply Quality Razor Wire Machine

We can product all kinds of razor barbed wire machines. Here are the details:

Main technical parameter:

This machine undertake by three wrap wire machine and one main machin that can cut nine barb belt make up.

It reflects perfectly:

1. High efficiency:can produce the steel belt 80kgs per hour.
2. It is low to loss, the raw materials loss of the old model is 40%.

External dimension:

1. The wrap wire machine(long *width *high): 3 X 1.3mX 0.7mX 1.1m
2. The main machine (steel belt presses judging machine) (Long *width *high): 1.1mX 0.85mX2.0m
3. Accept wire machine(Long *width *high): 1.4mX 0.75mX 1.0m
4. Total weight: 2.6T

This apparatus is made for specializing in the razor barbed wire, mainly divided into two parts:

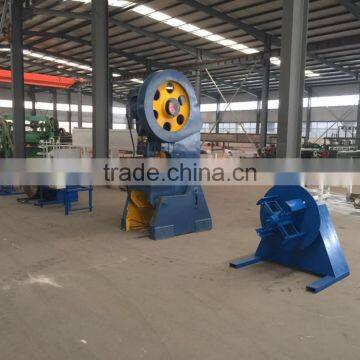

1. The steel belt presses judges part: Adopt JB-23 press machine, pressure 25T
   The largest rotational speed 100r/min, power 2.2KW
   Produce razor barbed wire long 25mm, 22mm, 15mm, 11mm once of razor blade,etc.. Various specifications should make the mould.
   Cut out steel band divide 9 steel belt into partly, produce board thick 0.5mm per hour, of long 22mm, 80kgs of steel band
2. Some of taking shape machine of one pack of lines: Wrap up the steel wire and razor blade steel band together, do a round long network that needs.
   The power of the electrical machinery: 1.1KW
   Rotational speed: Adjustable
   Linear velocity: Wrap up the line 16m every minute
   The round diameter of the network: 450mm-980mm
   The output per hour: 50kg
