Product Details
| Place of Origin | Hebei, China | Brand Name | Sinodiamond | |
| Model Number | EWG53 | Material | Other, Galvanized Iron Wire, Galvanized Iron Wire, low carbon wire, galfan wire, stainless steel wire | |
| Type | Welded Mesh | Application | Gabions | |
| Hole Shape | Square | Aperture | 50x50mm, 50x100mm | |
| Wire Gauge | 3.5mm, 4.0mm, 4.5mm |
Product Description
Specifications
1.Gabions for Landscaped Boundaries2.Height:80cm 120cm, 150cm,etc
3.Mesh:50x50, 50x100
4.Easy to install,long life
Welded Gabion for Landscaped Boundaries
Welded Gabions are made of welded mesh panel.
They are faster to erect and do not need tensioning. This allows them to keep their shape,
to be free from bulges and depressions and fit easily against the wall.
Welded Gabions are used in many situations including the stabilization of earth movement and erosion,
river control, reservoirs, canal refurbishment, landscaping and retaining walls.
1. Material: Low carbon steel wire
Galfan Wire
Stainless Steel Wire
2. Specification:
- Wire dia: 3.5mm, 4.0mm, 4.5mm
- Mesh size: 50x50mm, 75x75mm, 50x100mm
Length x Width x | Diaphragms | Capacity (cu m) | Nominal mesh (mm) | ||
1.0 x 0.3 x 0.3 | 0 | 0.09 | 50 x 50 75 x 75 100 x 50 | ||
1.0 x 0.5 x 0.3
| 0 | 0.15 | |||
1.0 x 1.0 x 0.5
| 0 | 0.50 | |||
1.0 x 1.0 x 1.0
| 0 | 1.00 | |||
1.5 x 1.0 x 0.5
| 1 | 0.75 | |||
1.5 x 1.0 x 1.0
| 1 | 1.50 | |||
2.0 x 1.0 x 0.5
| 1 | 1.00 | |||
2.0 x 1.0 x 1.0
| 1 | 2.00 | |||
3.0 x 1.0 x 0.5
| 2 | 1.50 | |||
3.0 x 1.0 x 1.0
| 2 | 3.00 | |||
4.0 x 1.0 x 0.5
| 3 | 2.00 | |||
Other size is accepted.
3. Feature:
- Easy to install
- High zinc coating to assure of anti-rust and anit-corrosive
- Economic
- High security
- Filled with color stone, cobblestone, looks beautiful and nice
4. Use:
- Retaining Walls
- Temporary Bridge Abutments
- Noise Barriers
- Beach Reinforcement
- Riverbank Revetment
- Landscaped Boundaries
- Drainage Channels and Culverts
- Railway Embankments
- Safety Barriers

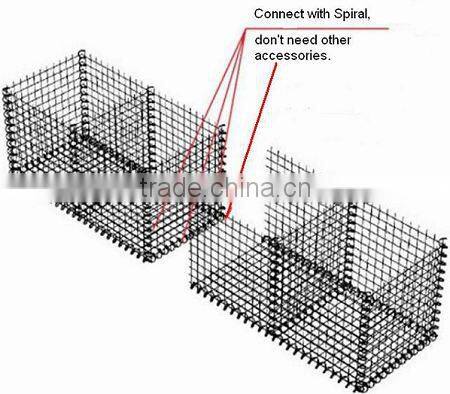

5. Connection with Spiral, spacer is standard
6. Products showcase:
Packing; On pallet
In carton
