Animal Feeders automatic chicken feeding system and nipples line

Specifications

Pan Feeding System

Feed pan is the core of feeding system.

The pan feeding system for broilers is solid and reliable through the application of high quality materials and components.

Easy access for birds from day one to grow out.

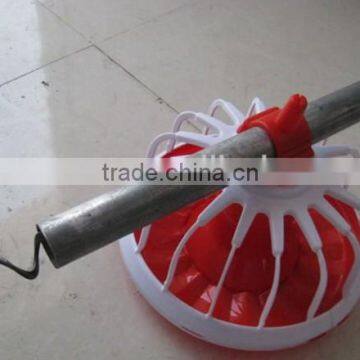

The poultry chicken pan feeder is used on automatic pan feeding system

Container volume 120 liter, V hopper.

Diameter of plastic pan :360 mm ,16 slot.

Hot galvanizas pipe's diameter :45mm,with 3-4 aperture

Slowdown motor driver 70w, 380v,transimission speed 450kg/h

Model 350 two_way hoist winch pan

There are 14 grilles,for 40-55 chicken per pan

The bottom could be separated on the ground to feed 0~7 days old chick

V shape bottom and body can be separate freely,so it’s very convenient to clea

There are different grades to adjust feed level,and it’s only need to rotate the cylinder to adjust feed level.

We use 100% high quality raw material,it’s more environmental.

Raising amount:40-55pcs/tray

Rotating flexible without scratching

Rim curved to inside to prevent wastage

The smooth edge can avoid hurting the broiler

Components of pan feeding system

Automatic feeding system consists of a driving device, a hopper, a conveying pipe, auger, feed pans, feed sensor, a suspension lifting device and an anti-roost device.

The main function of the system is to convey the feed in the hopper into each pans to ensure the eating and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding

Features of ball water nipple:
High sensitivity (360°)
Fast take-down,easy cleaning,no need for glue and bonding
Imported good stainles steel,wear resistant,poly resin,APS,durable,available for 20 years
Low water pressure,scientific water flow,appliable for chicken,hens,ducks in cages or not
Practical,inexpensive,NC,and equai to imported products,costs only accounting for 1/3 of the imported ones
None water seepage guarantees dry chicken manure
Sanitary,clean water seled pipes prevent posslble water-borm disesses
It takes up little space,increasing breeding space
