Home > Products > 3&5 GALLON FILLING MACHINE > 2015 Automatic 5 Gallon Drinking / Pure / Mineral Water Bottling Production Line
2015 Automatic 5 Gallon Drinking / Pure / Mineral Water Bottling Production Line
- SHANGHAI
- T/T L/C Other Cash
- 25 days
You May Like
-
2015 High Design Quality Automatic 5 Gallon Drinking / Pure / Mineral Water Bottling Production Line
-
Longway Design Automatic 5 Gallon Bucket / Bottle / Barrel Bottling Equipment
-
Longway Design Operate Flexibly Full Automatic 5 Gallon Barrel Filling Line / Machine
-
5 Gallon Mineral Water Bottle Filling Machine
-
5gallons and 3 Gallon Washer Filler Capper
-
5 Gallon Filling Machine
Product Details
| Brand Name | LONGWAY | Place of Origin | China | |
| Model Number | QGF | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Dimension(L*W*H) | 4000*1500*1800 | |
| Voltage | 380v | Power | 4kw | |
| Function | Other, Capping, Filling, Labeling, Sealing, Wrapping | Application | Beverage, Chemical, Commodity, Food, Machinery & Hardware | |
| Condition | New | Automatic Grade | Automatic | |
| Driven Type | Pneumatic | Packaging Material | Glass, Plastic | |
| Packaging Type | Barrel, Cans |
Product Description
Product Description
Product Description
Product Description
automatic 3&5 Gallon Water Filling Machine/Equipment In Barrel
Automatic 3&5 Gallon Water Filling Machine/Equipment In Barrel
A.Easy to change bottle shape
B.PLC Process Control
C.Famous brand-name units for key part
D. Automatic 3&5 gallon water filling machine
Automatic 3&5 Gallon Water Filling Machine/Equipment In Barrel
characteristics:
1.The automatic 3&5 gallon water filling machine is composed of barrel washer,filler and sealer
2.Specially for filling drinking water of 5 gallon.it is an ideal filling line to produce pure water,mineral water and distilled water
3. The whole automatic 3&5 gallon water filling machine adopts superior stainless steel,anticorrosive and easy to clean
4.Only two operators are needed for a line,which is wholly automatic barreled
5.Full-auto or semi-auto barrel de-capper,full-auto leakage inspection,full-auto barrel outside brusher,full-auto barrel loading machine,steam shrinking film machine and coding system can be chosen according to the custom's request
Automatic 3&5 Gallon Water Filling Machine/Equipment In Barrel
main technical parameters:
Model | QGF-100 | QGF-240 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 8 |
Volume(Gallon) | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 |
Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption(m3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
Related Voltage(V) | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ |
Weight(kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Automatic 3&5 Gallon Water Filling Machine/Equipment In Barrel
QGF series automatic 3&5 gallon water filling machine is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This automatic 3&5 gallon water filling machine is adopted sufficiently tech-knowledge from overseas drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic.
This automatic 3&5 gallon water filling machine has advantage on new design, concise structure, higher precise filling, widely use, and higher robotization. This automatic 3&5 gallon water filling machine is new model drinking water production line.
OUR CUSTOMER

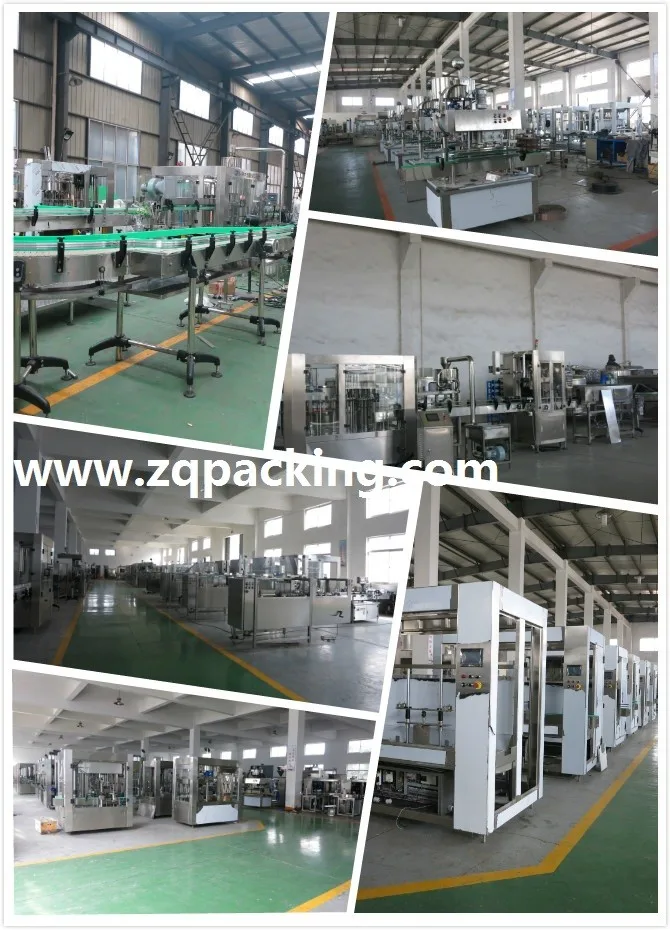

OUR WORKSHOP
