3D wire mesh panel V type

Specifications

3D wire mesh panel (Manufacture)

3D wire mesh panel  a new wire mesh products, mainly used in construction. Its high tensile and easy install are very popular to world construction customers.

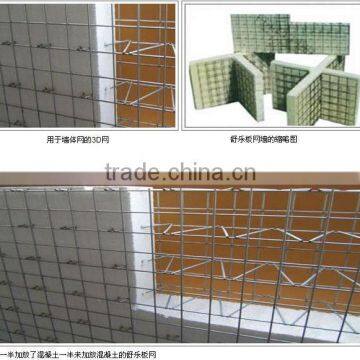

3d wire mesh panel also called two double layer welded wire panel, using welded way join two pieces of welded wire panel together.

Foamed polystyrene insulating layer with the thickness of 100m/m in the center, steel wire truss coated with zinc of 3m/m(3.8mm) between the insulating layer is pinned at 2 intervals, at both sides of which forms up at 5cm X 5cm(5cm X 10cm) intervals with the wire mesh coated with zinc of 3m/m(3.8mm) that is at fine-spun 50m(100m)intervals. So the whole points of contact in all steel wires is joined in a spot welding, which is a panel of 2.4m(4m) full length, 1.2m width, 60~200m/m thickness.

Material:
1. Steel wire : steel wire with a diameter of  3mm/3.8mm and coated with zinc in a tensile strength of 60~120kg/cm2
2. Foamed polystyrene : with a specific gravity of over 0.015kg/cm2. (Over 0.015kg/cm2 is for the manufacturing order). size is 2", 2.5" and 4".
3. Strength of Mortar : Normally 1:3 (70kg/cm2)

Application

1.Used as fence

2. Used as wall liner

    unique and effective way to easily create a strong insulated concrete building or wall

3D mesh is a three-dimensional mesh, this product is widely used in Europe and the United States in the construction system to replace the wood framework wall, metal or prefabricated plate, has a flexible structure, simple construction, improve efficiency, save labor characteristics. Park wall arch corners, curved wall using this product with camber free construction simply and quickly, modelling beautiful and so on as their characteristics. Interior lining insulation material with insulation strong characteristics of small occupied area so that the indoor space more labor-saving and time-saving structural integrity of the wall.

Features the product structure is light, can freely bended. Solid without additional reinforcement for cantilever. Corrosion resistant waterproof and flame retardant widely used for all wall.
