Intelligent security electric fence energizer with six line design

Specifications

Intelligent security electric fence energizer with six line design

1.Differential voltage output technology: every wire has voltage, have the differential voltage between the two
adjacent wires.

2.LCD or LED indicate the working state and the voltage on every wire of fence.

3.High/low voltage switch manually, long-distance equipment auto switch function.

4.Short circuit, break and tamper alarm, Self-inspection System for equipment fault
5.Waterproof casing and downward appearance design leading the industry development.
6.RS 485 bus control, keypad, computer, network and multiple long distance management solution.
7.DC12V, NC/NO dry contact alarm output, can work with other modern security products

8.Two group high voltage circuit ,each group has one high voltage output and two high voltage input .

9.Lanstar electric fence energizer forperimeter security  with CE,ISO certificate

Intelligent security electric fence energizer with six line design

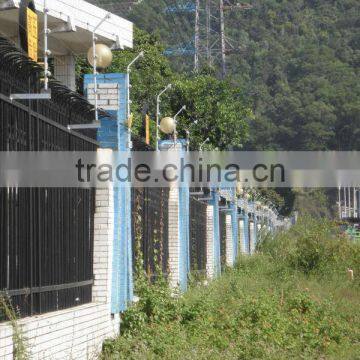

Exihibition pictures:

Technique specification:

1.Power supply :AC180V-240V
50Hz
2.System power consumption : 10 Watt
3.Operating environment
4.Temperature:-40 to +50°C
5.Relative humidity :≤95%
Output parameter:
Output peak voltage: 5KV~10KV
Output low voltage: 700~1000V
Peak current of pulse: <10A
Pulse duration: ≤0.1s
pulse interval time: 1s
Max quantity of electricity of pulse: 2.5mC
Max energy of pulse: ≤5.0J

Packing details:

Demension: 410×320×220 (mm)
Net Weight: 4.2kg
(Without battery)
Color: Blue
Packaging Details: Carton package

Our Industrial Park

Sales Department

Production Line

1.Sample order acceptable

2.Customized logo with OEM service is available for bulk order

3.Warranty:3 years(except artificial damage and  vis major)

4. Considerate service after sale

 What is electric fence system?

Electric fence system is consists of electric fence and the front conduct wire ,is a psychological and physical barrier to detect,deter and delay intruders or wild animals with non-lethal high voltage pulse,which is widely used in farming and security areas.

Why choose us?

• Years of experience in electric fencing field
• Professional staffs for providing different solutions
• High Quality products and competitive prices
• Factory warranty with CE certificate and ISO9001:2008 certificate

Intelligent security electric fence energizer with six line design with high voltage pulse to intruders tonuching the fence . which establishes a physical and psychological barrier to prevent invasion .
