Lanstar home security electric fence energizer for electric fence

Specifications

Lanstar home security electric fence energizer for electric fence

Lanstar home security electric fence energizer for electric fence is LX-2008

series of anti- cut electronic fence system , in addition to the special detection function , but also need access a anti-cut module in the end of high-voltage circuit (trailing end),so that the anti-cut function normal operation .

In a separate zone , there is a leading end and a trailing end , usually referred to as the initial end of the energizer is placed ( left figure ) , the other end is the trailing end ( shown on the right ) .

From above,the end anticut module is placed in the end and concatenated in the high voltage circuit,

the module has 4 high voltage line with 4 logos,respectively:HV-OUT+,HV-IN+,HV-OUT-,HV-IN-.

Just in line with the high voltage output port logo of the  energizer,according to the corresponding logo,connect the Anti-cut module with energizer correspond port through the high voltage wire and alloy wire.

Features

• Shell level of protection achievedIP55;

• Remote control the Arm/Disarm;

• DC12V, NC/NO dry contact alarm output, can work with other modern security products;

• Function of query the alarm records and arm/disarm records;

• Short circuit, break and tamper alarm, Self-inspection System for equipment fault;

• LCD indicate the arming mode,alarm state,and the voltage on every wire of fence,etc. ;

• Backup battery power supply system ,the backup battery life >8H;

• Differential voltage output technology: every wire has voltage, have the differential voltage between the two adjacent wires;

• High/low voltage switch manually via software or hardware, long-distance equipment auto switch function;

• With high/low voltage, time, zone,alarm delay, Anti-cut sensitivity and other settings functions;

• RS 485 bus control, keypad, computer, network and multiple long distance management solution.

• Lanstar Anti-cut electric fence energizer for perimeter security  with CE,ISO certificate

Lanstar home security electric fence energizer for electric fence

Six-line installation on the top of wall

Four line installation on the top of wall

 Attached installation

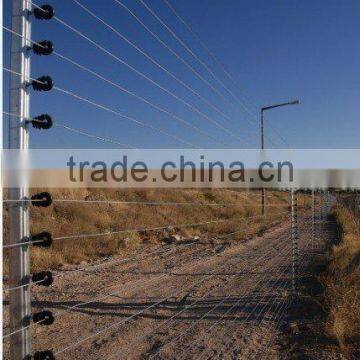

Stand alone installation

Exihibition pictures:

Technique specification:

1.Power supply :AC180V-240V50Hz
2.System power consumption : 15 Watt
3.Temperature:-25 to +55°C
4.Relative humidity :≤95%
Output parameter:
Output peak voltage: 4KV~7.5KV
Output low voltage:<1.0KV

Peak current of pulse: <10A
Pulse duration: ≤0.1s
pulse interval time: 1s~1.5s

Max quantity of electricity of pulse: 2.5mC
Max energy of pulse: ≤5.0J

Packing details:

Demension: 410×320×220 (mm)
Net Weight: 4.2kg(Without battery)
Color: Gray
Packaging Details: Carton package

Our Industrial Park

Sales Department

Production Line

1.Sample order acceptable

2.Customized logo with OEM service is available for bulk order

3.Warranty:3 years(except artificial damage and  vis major)

4. Considerate service after sale

 What is electric fence system?

Electric fence system(the electric fence energizer and front fence ) is a psychological and physical barrier to detect,deter and delay intruders or wild animals with non-lethal high voltage pulse,which is widely used in farming and security areas.

Why choose us?

• Years of experience in electric fencing field
• Professional staffs for providing different solutions
• High Quality products and competitive prices
• Factory warranty with CE certificate and ISO9001:2008 certificate

Lanstar home security electric fence energizer for electric fence with high voltage pulse to intruders tonuching the fence . which establishes a physical and psychological barrier to prevent invasion .
