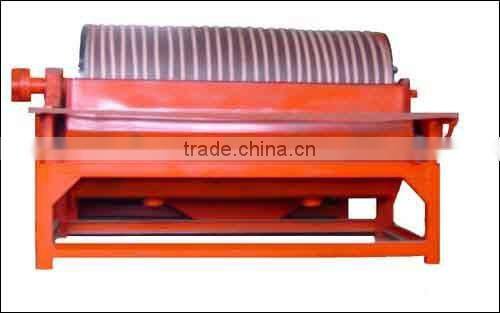

High Efficiency Magnetic Separato by Dafu 2014

Specifications

Description of  Magnetic Separator:
Series CTB powder magnetic drum separator( from single drum to four drums ) is made from rare earth permanent magnetic materials to generate the magnetic field .It is a kind of specialized equipment to remove the ferrous powder materials automatically and continuously. Series CXJ can meet the request of the different size granule and is widely used in chemical materials, fire-proof material, carbon, plastic and non-ferrous mine industries etc.
The Magnetic Separator can separate the raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters from 220 mm to 3,050 mm.

Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix. It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain. They have been found widely used in more than 20 mineral processing plants of China
