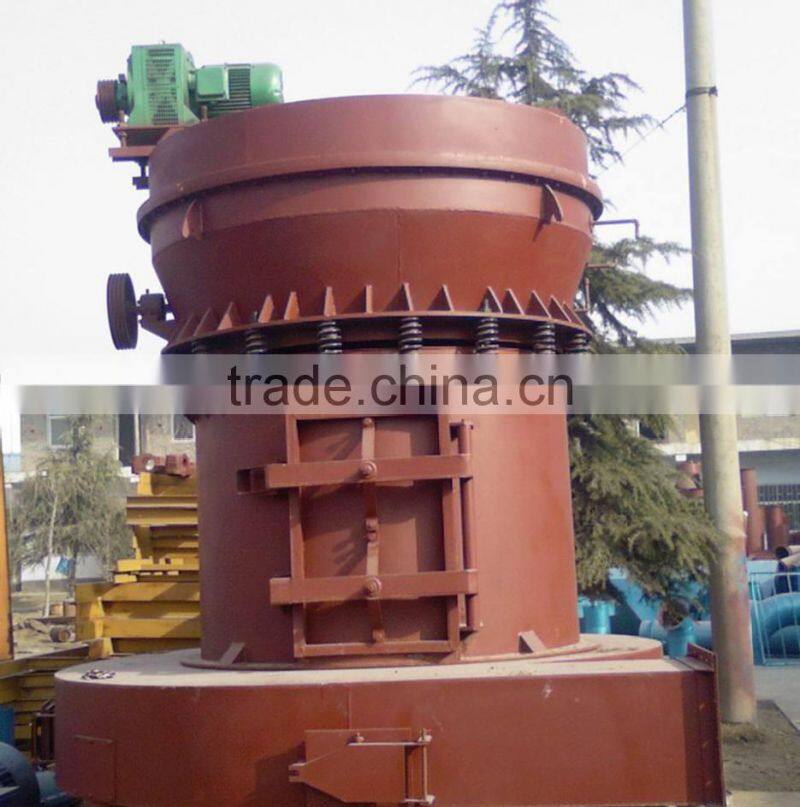

Professional Raymond Grinder Mill
- Qingdao Lianyungang
- L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Raymond Mill | |
| Capacity(t/h) | 0.45-4.5 | Place of Origin | Henan, China | |
| Brand Name | Dafu | Model Number | 3R3016 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Raymond machine can be applied to barite, calcite, feldspar, talcum, marble, limestone, clay, glass and so on.Raymond machine can be applied to barite, calcite, feldspar, talcum, marble, limestone, clay, glass and so on.
Structural characteristics of Raymond Grinder:
the whole grinding mill is of a standing structure. It features small occupying space and strong integration capacity. It can form an independent production system from the lump materials , crushing to finished powder and packaging. All the finished particles have a good uniformity of fineness, with passing screen rate as high as 98%. This is what other machine cannot reach. The machine adopts electromagnetic vibrating feeder, which ensures even and regular feeding. It is easy to adjust, small in dimension, light in weight, with lower oil and power consumption and easy to maintain. The transmission device of the main unit is equipped with a close gearbox which ensures its smooth transmission and reliable operation. Attendance of operater is not necessary in the mill operating room because the adoption of advanced central control console switch.
| Type | Roller | Ring | Max.Stuff size(mm) | Fineness of product(mm) | power for Machine(kw) | |||
| NO | DIMENSION(mm) | HEIGHT(mm) | INSIDE DIAMETER | HEIGHT(mm) | ||||
| 3R2115 | 3 | 210 | 150 | 630 | 150 | 15 | 0.44-0.165 | 15 |
| 3R2615 | 3 | 260 | 150 | 780 | 150 | 15-20 | 0.44-0.165 | 18.5 |
| 3R2715 | 3 | 270 | 150 | 830 | 150 | 15-20 | 0.44-0.165 | 22 |
| 3R3016 | 3 | 300 | 160 | 880 | 160 | 15-20 | 0.44-0.165 | 30 |
| 4R3216 | 4 | 320 | 160 | 970 | 160 | 20-25 | 0.44-0.165 | |
