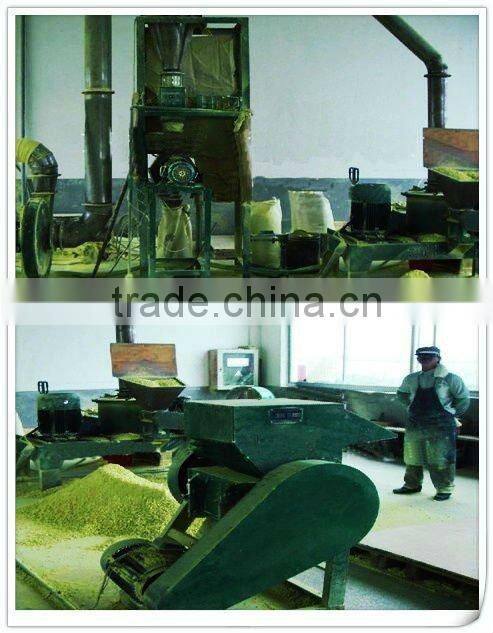

Best Quality Sulfur Grinding Mill

Sulfur Grinding Mill

Sulfur Powder Production Line  made by our company dedicated to grinding mill with closed-end flow and added anti-explosion  devices, filling the gas flame retardant. Meanwhile,we add the installation of air filtration devices and cooling devices .So we can guarantee the quality of our products. At the same time, we can provide a full range of production line equipment according to the needs of customers. The device can be mechanized fully. Customers home and abroad are weclome.

Raw materials are transported to raw materials warehouse by conveyor belt, then are put into the mill to crush by closed-air feeder which is at the bottom part of raw materials warehouse. Closed-air feeder can not only prvent the air from entering, but also control the feeder rate.
After the powder is made, the air-closed feeder will sent the powder to the air conveyor. Then the powder is sent into the product storehouse by air conveyor. The powder is packed quantitatively by Automatic Packing Machine which placed at the bottom of the product storehouse. Finally the packed powder is transferred to the storehouse.
The main engine current of electric control cabinet should be paid attention to when adjusting the flow of Automatic Feeder. Working electric current and motor rated current should match, so as to avoid the mill over loaded.

Sulfur Mill is a air-milling machine with a full-circle closure. Before the mill machine works, the fire-retardant gas (nitrogen) are filled to replace with the air inside. After the access of materials, the fire-retardant gas are supplemented continuously to prvent the burning of the sulfur powder.
The cooling filtration system is adopted in this equipment, so that the temprature can be controled at the rangement of 18 to 22°C. Because the sulfur powder can become soft while being heated, which could affect the output of sulfur. After being cooled ,the sulfur powder can be seperated easily, the function of filtration system is to control the content of sulfur powder in the refluxing air.
Closure air system is adoptted both in feed and output of the machine to prevent air to flow and fire-retardant gas overflow.
