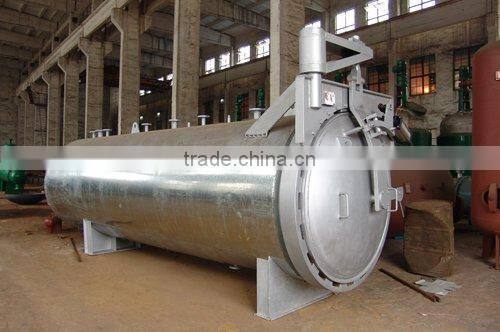

Hot Sale Sterilizer Autoclave

FOB Price

US$ 2,000 - 29,000 / Set

1 Set(Min. Order)

Port Qingdao or lianyungang
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Dry Heat Sterilization Equipments		Brand Name	DAFU
Model Number	230		Place of Origin	Henan, China

Product Description

Specifications

steam autoclave machine in hot supply
1. easy maintenance
2. steels: GB6654
3. Little environmental pollution

steam autoclave machine in hot supply

Principles of autoclave

The key component of the industrial autoclave is the fast-opening door; this is also the critical component in cost of autoclave construction. On one hand, the operator must be able to open and close the door quickly and easily; on the other, the door must satisfy stringent safety requirements. Such is the quality of autoclave door design that the US experiences as few as an estimated five or six autoclave failures annually.

An sulfur still applies both heat and pressure to the workload placed inside of it. Typically, there are two classes of autoclave. Those pressurized with steam process workloads which can withstand exposure to water, while circulating heated gas provides greater flexibility and control of the heating atmosphere.

Processing by autoclave is far more costly than oven heating and is therefore generally used only when isostatic pressure must be applied to a workload of comparatively complex shape. For smaller flat parts, heated presses offer much shorter cycle times. In other applications, the pressure is not required by the process but is integral with the use of steam, since steam temperature is directly related to steam pressure. Rubber vulcanizing exemplifies this category of autoclaving.

For exceptional requirements, such as the curing of ablative composite rocket engine nozzles and missile nosecones, a hydroclave can be used, but this entails extremely high equipment costs and elevated risks in operation. The hydroclave is pressurized with water;^[3] the pressure keeps the water in liquid phase despite the high temperature.

Introduction of autoclave:

autoclave pressure vessel used to process parts and materials which require exposure to elevated pressure and temperature. The manufacture of high-performance components from advanced composites often requires autoclave processing.

Still Kettle is horizontally setted, the cover is made of a 16mnr steel plate, the flanges used in the cover and body of the machine is forged from a 16mn steel bar. Stricit non-destructive Testing and heat treatment should be performed to the welding lines in the pressure sustaining parts according to relevant specifications.

Applications

autoclave used in industries :chemical,medicine,rubber, lumber,gypsum,galss,insulating materials,or cure aerocrete bloc.

Number	Size(m)	Max designed pressure(mpa)	Working Pressure(mpa)	Designed Tempreture	Working Tempreture	Woring Medium	Outter Size (M)
1	2×21	1.4	1.3	198.34	194.13	Moist Steam	22.12×2.6×2.973
2	2×27	1.6	1.5	200	200	Moist Steam	28.12×2.6×3.211
3	2×30	1.6	1.5	200	200	Moist Steam	31.12×2.83×3.211
4	2.85×26	1.65	1.5	205	205	Moist Steam	27.4×3.595×4.504
5	2.85×39	1.65	1.5	205	205	Moist Steam	40.4×3.595×4.
